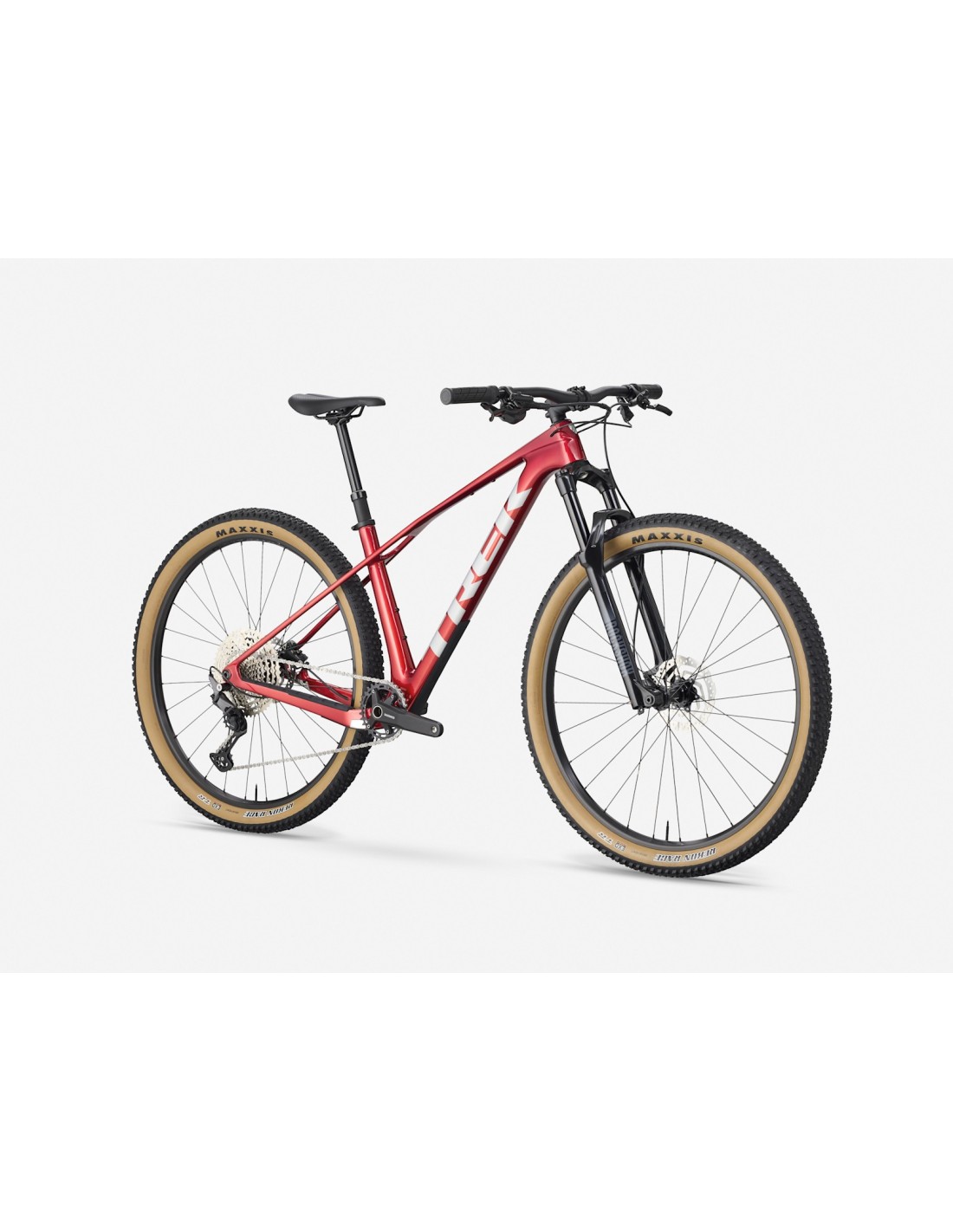

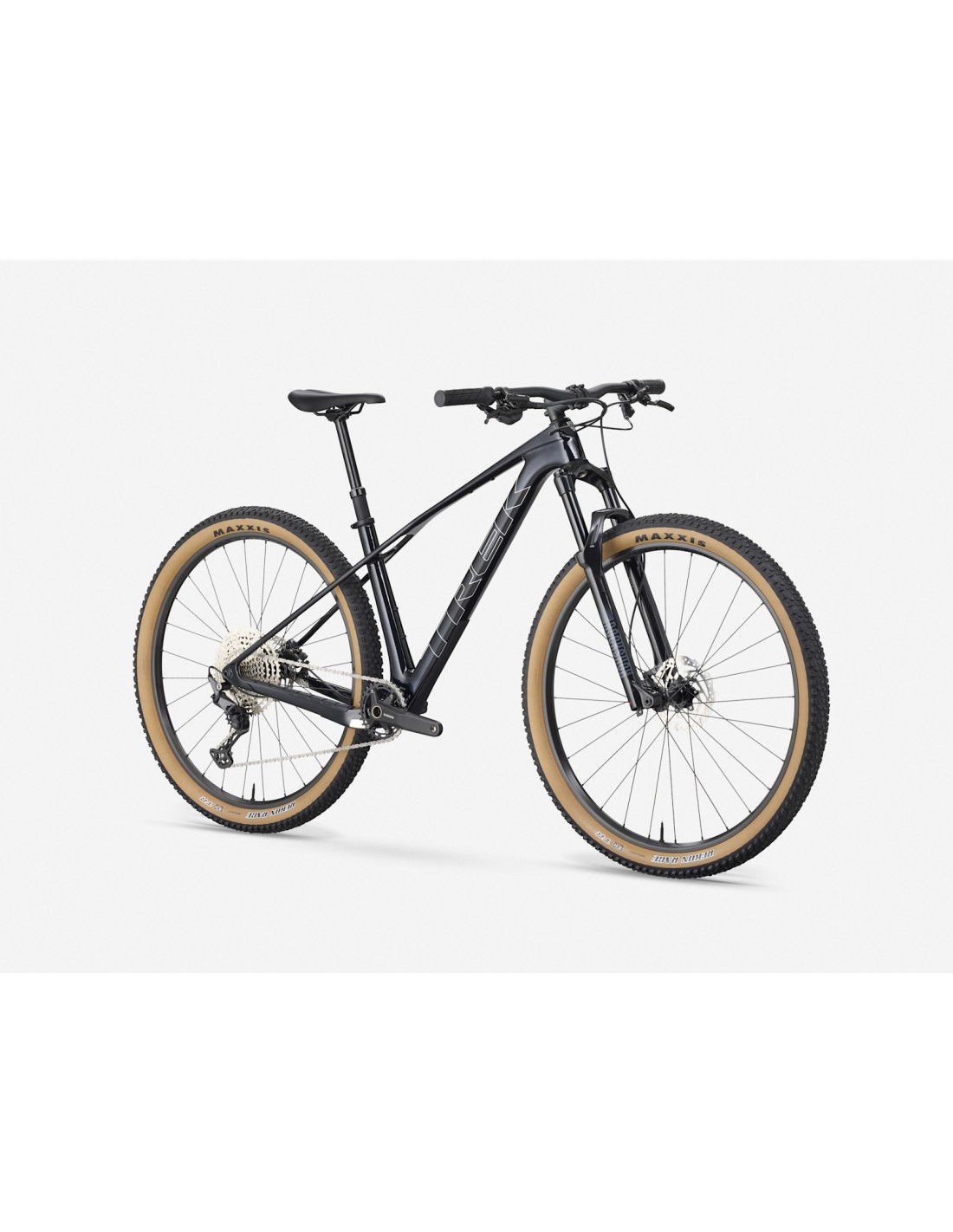

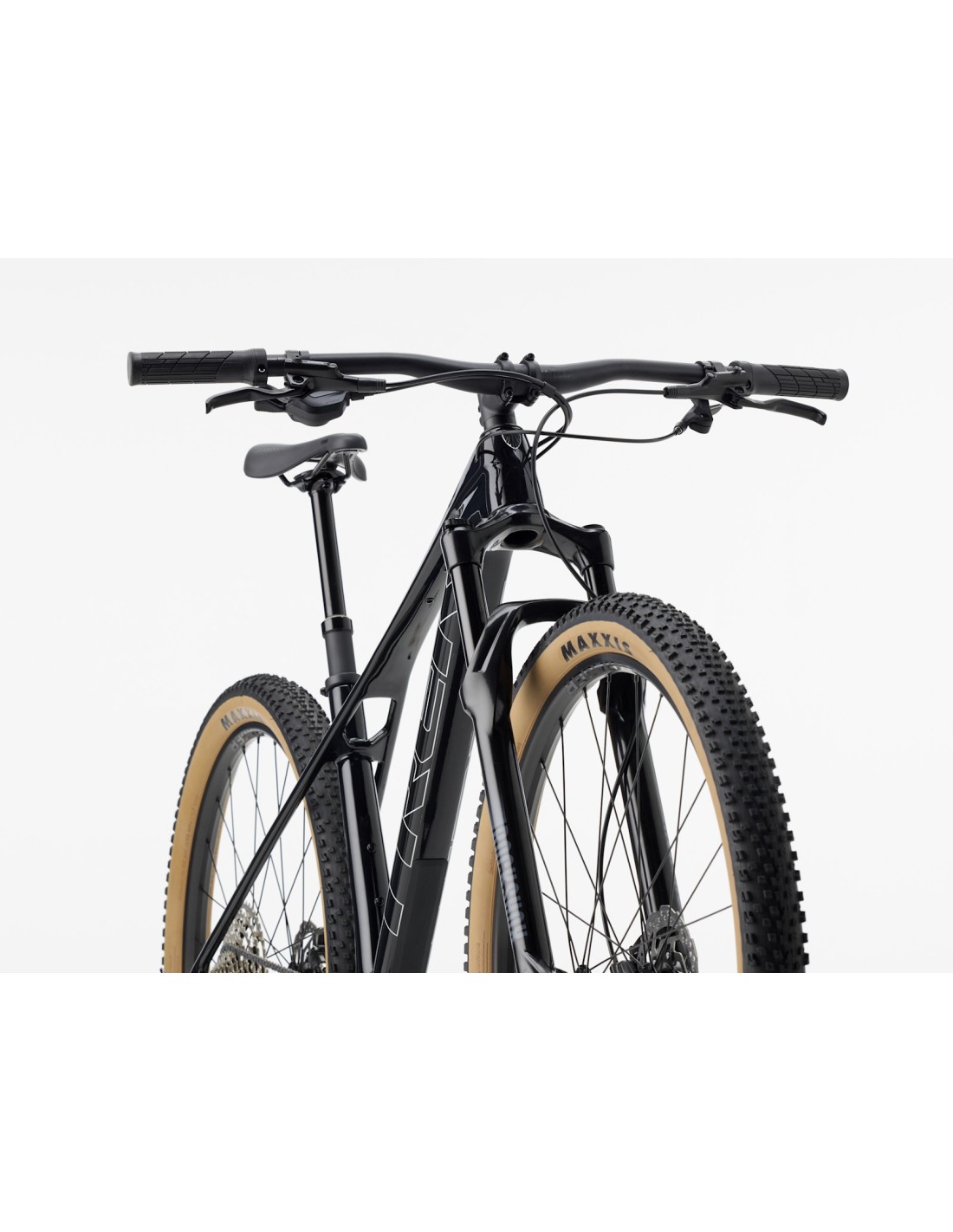

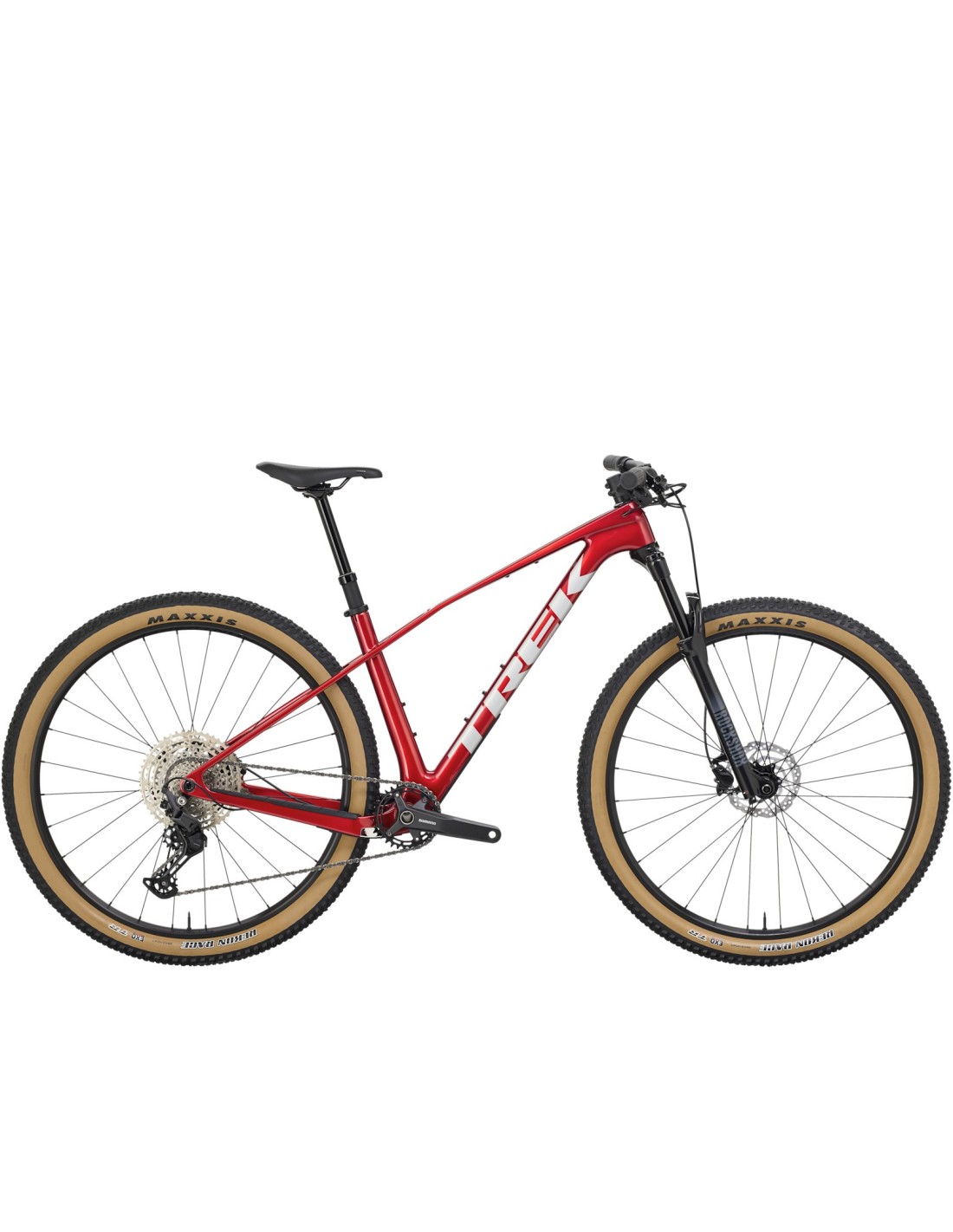

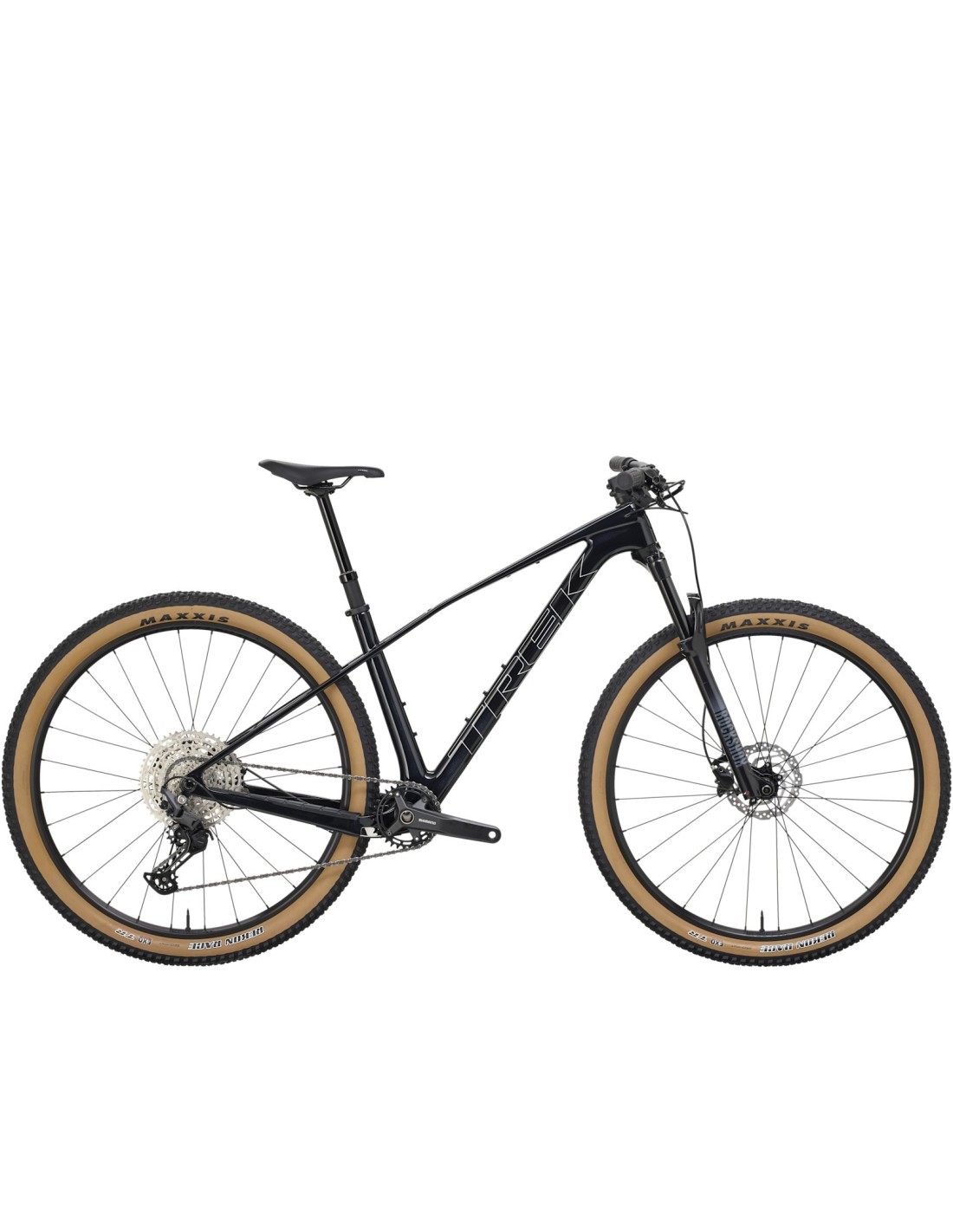

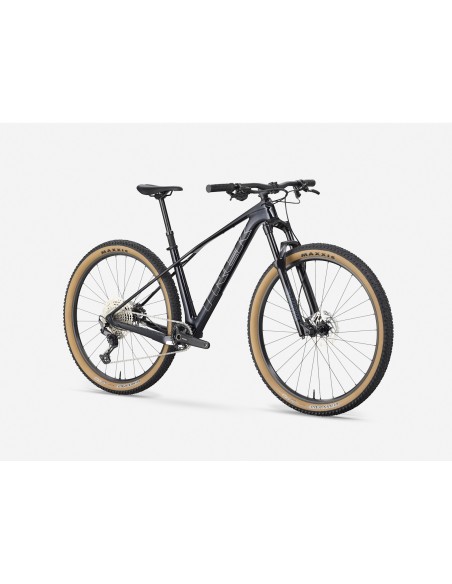

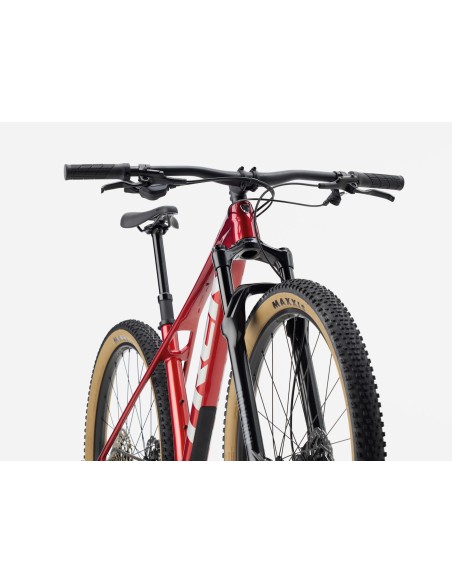

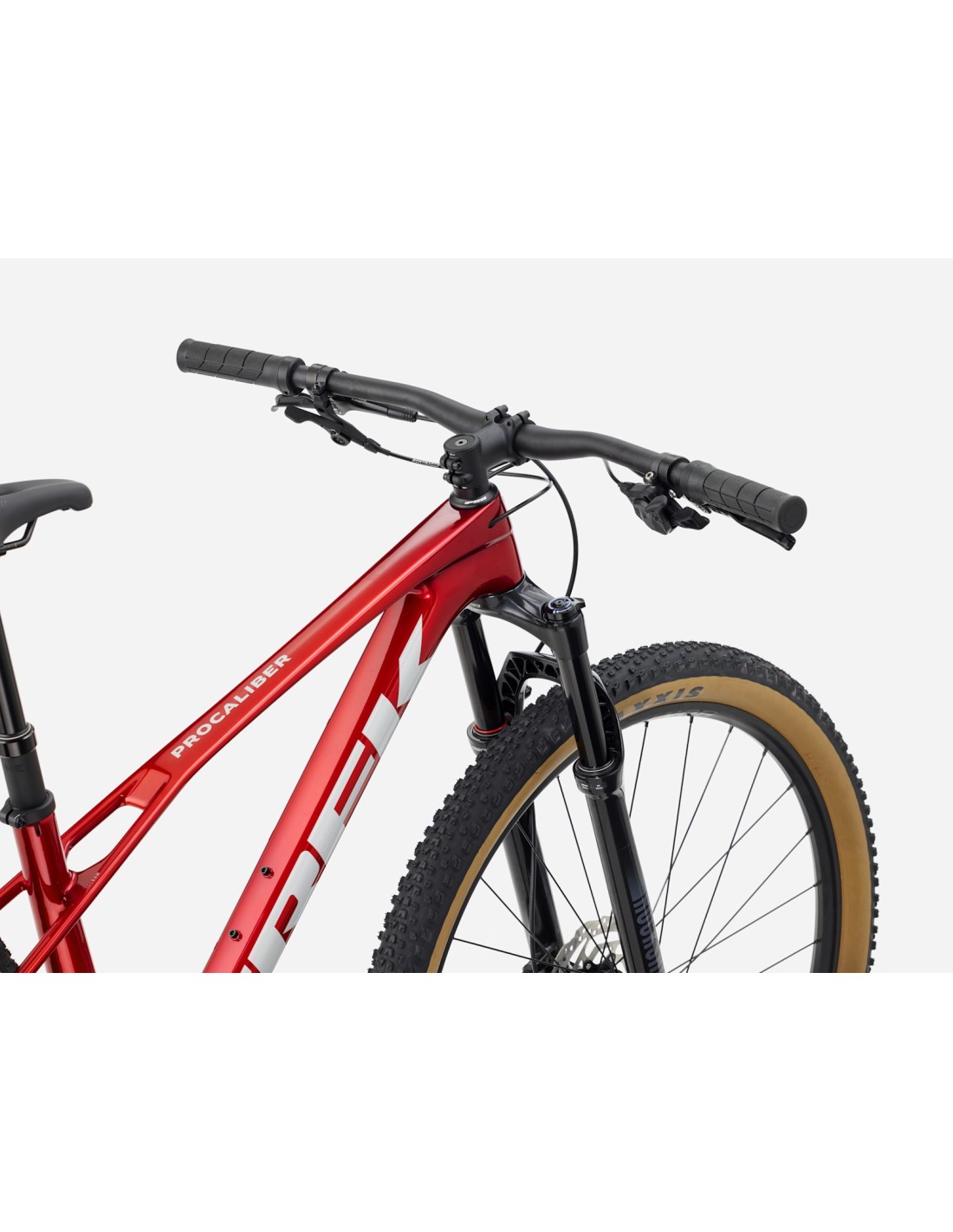

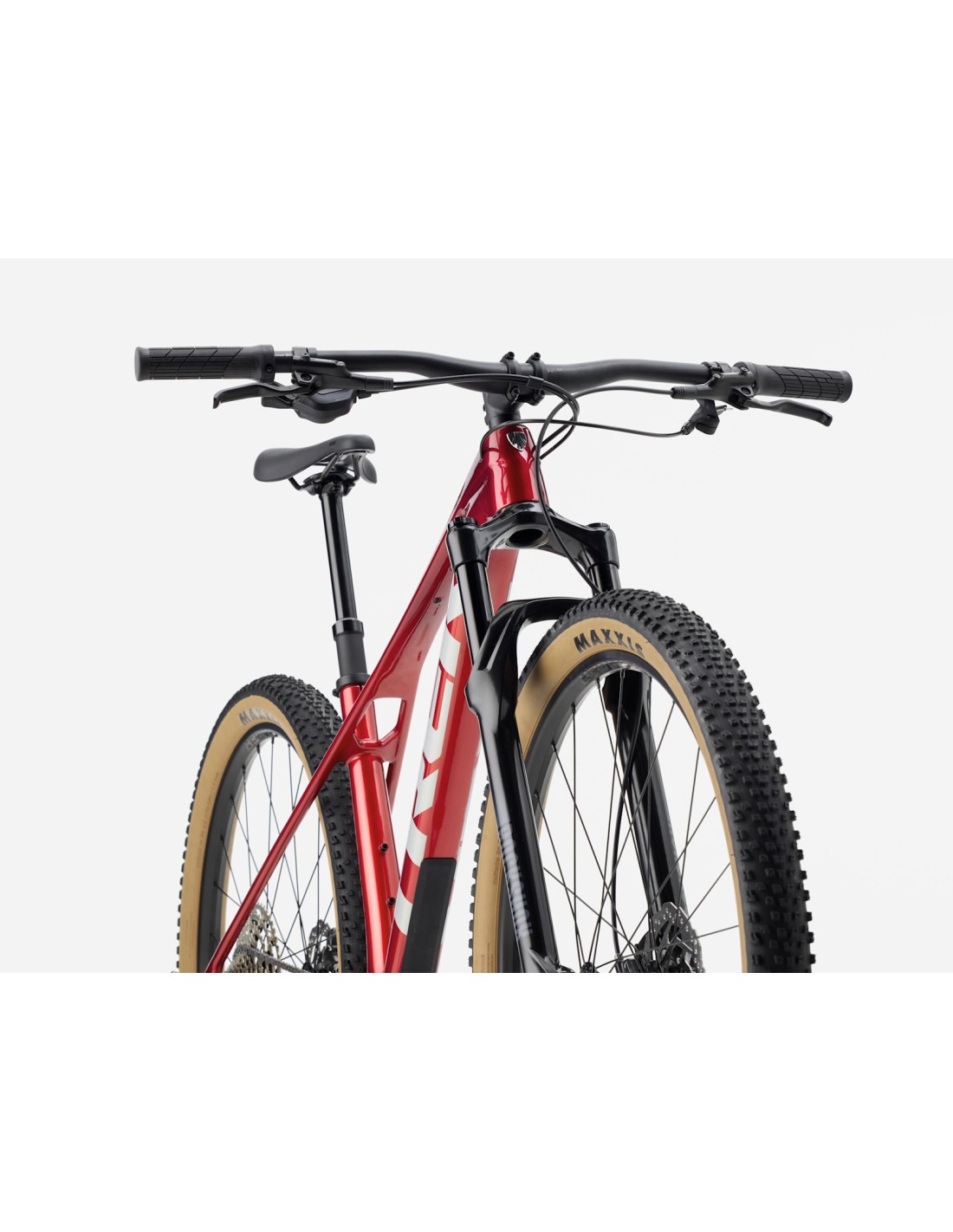

Name: Bicicleta Trek Procaliber 9.5 Gen 3
Brand: Trek
SKU: 47223
Price: 1550 EUR
Availability: InStock

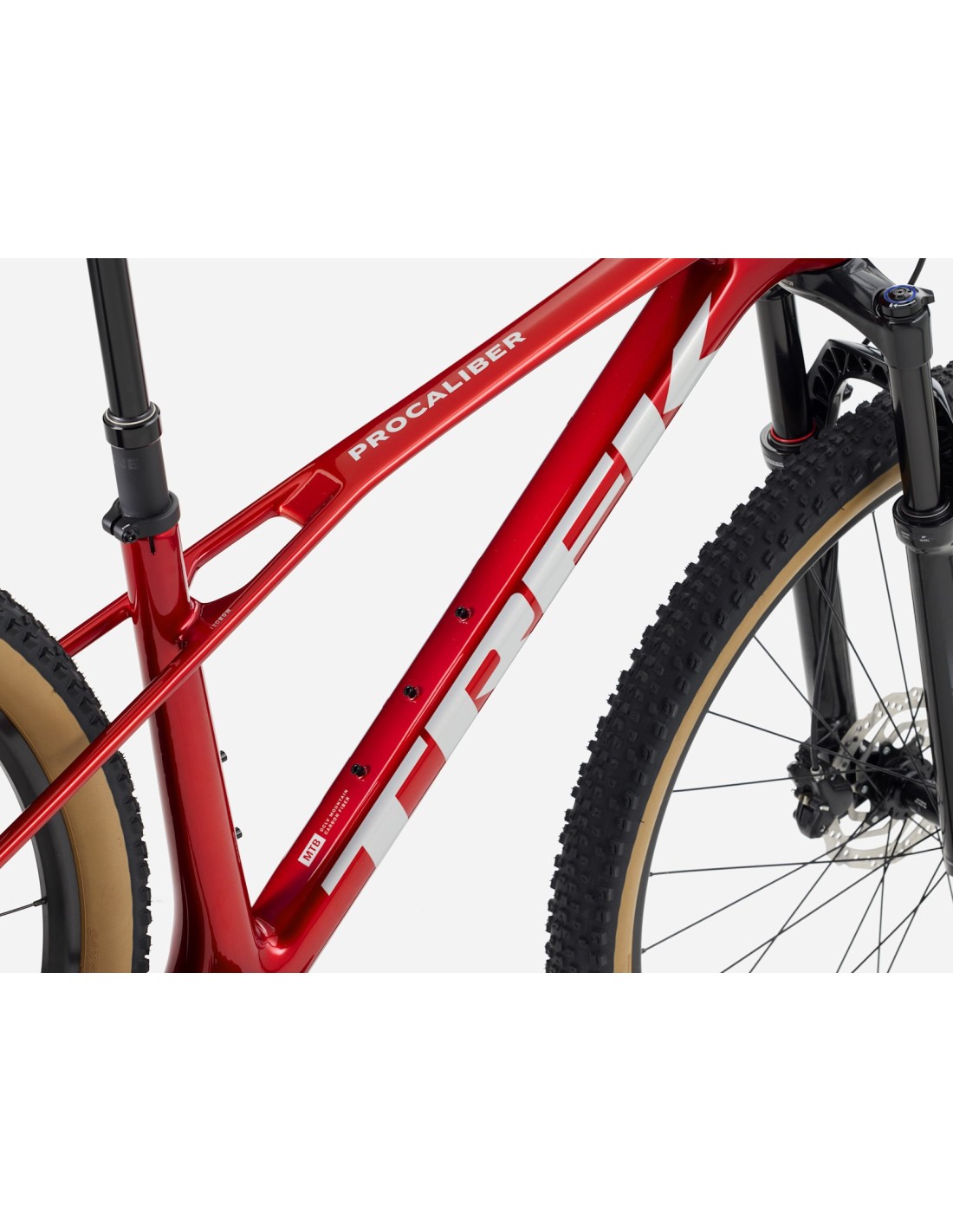

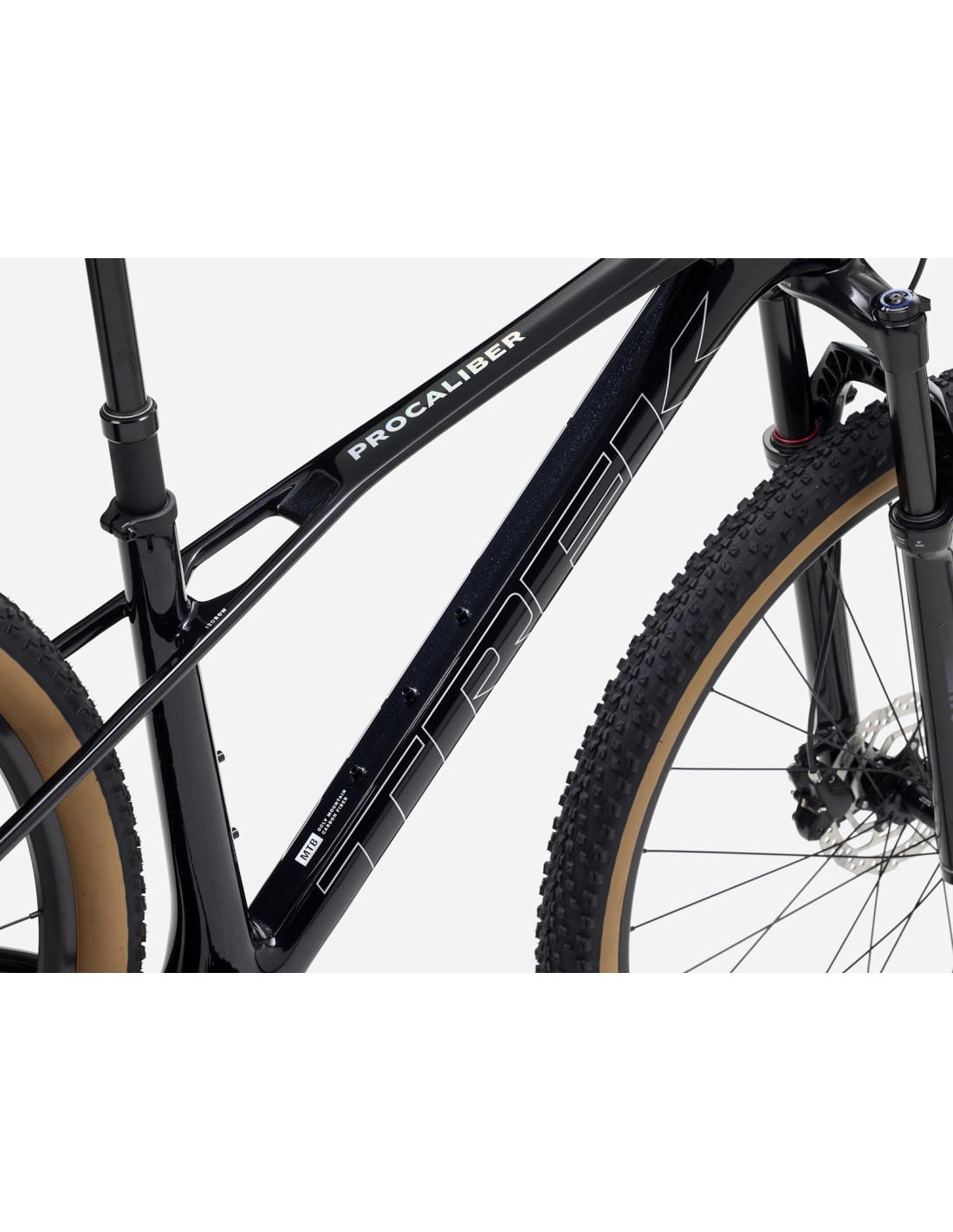

Frame:OCLV Mountain Carbon, IsoBow, profiled steerer tube, internal guiding, balanced post mount brakes, Boost148
Frame Material:CARBON
Rim Size:29
Fork:RockShox Judy GOLD, Solo Air inner tube, TurnKey lockout, profiled steerer tube, 42mm steerer, Boost110, Maxle Stealth 15mm, 120mm travel
Tires:Bontrager Sainte-Anne RSL XTR, Tubeless Ready, dual compound, aramid rim, 60 tpi, 29x2.40"
Front hub:Shimano TC500 aluminum, centerlock, 110x15 mm thru axle
Rear hub:Shimano TC500 aluminum, centerlock, 148x12 mm thru axle
Rims:Bontrager Kovee, double wall, Tubeless Ready, 28 holes, 23 mm wide, Presta valve
Shift lever:Shimano
Cassette:Shimano Deore M6100, 10-51, 12-speed
Chain:Shimano Deore M6100, 12-speed
Brake:Hydraulic disc Shimano MT200 // Hydraulic disc Shimano MT200
Disc size:Max dimensions
Saddle:Verse Short, chromoly rails, 145 mm wide
Seatpost:Bontrager Line Dropper, 100 mm travel, MaxFlow, internal guiding, 31.6 mm, 310 mm length
Handlebars:Bontrager Comp, alloy, 31.8 mm, 5 mm height, 720 mm width
Stem:Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 50 mm length
Steering:FSA IS-2, 1-1/8" on top and 1.5" on bottom
Grips:Trek Line Comp, nylon lockout

2027 version: what changes

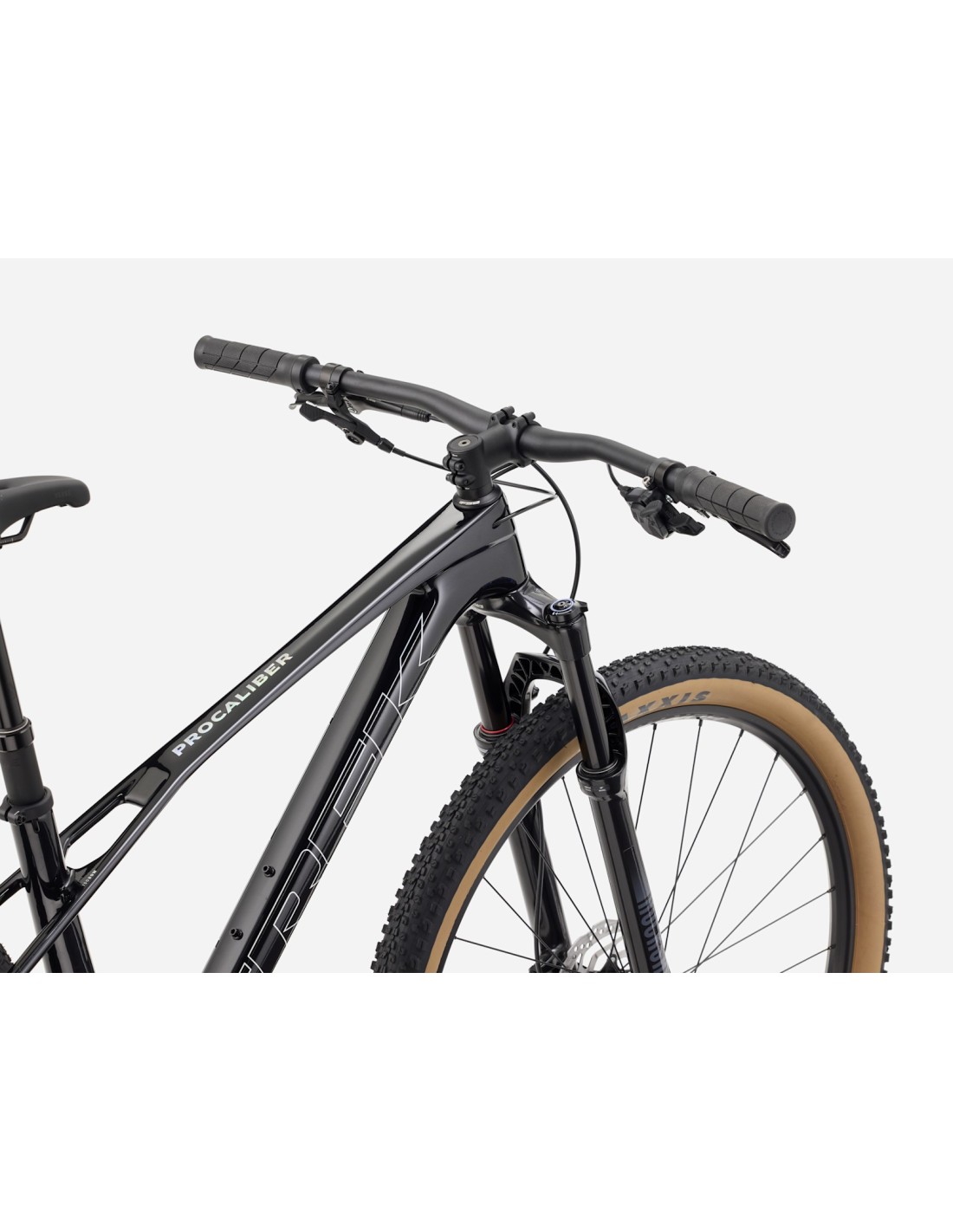

This page includes two versions. 2027 version: colours Dark Star, Fury Red. 2026 version: colours Purple Flip/Hex Blue, Lava, Matte Keswick Green/Mercury. The Specifications tab shows the 2026 version; these are the components that change on the 2027:

Component	2026	2027
Crank	Shimano MT512, 32T, 55 mm chain line, 175 mm	Shimano MT520, 32T, 55 mm chainline, 175 mm length
Saddle	Verse Short, chromoly rails, 145 mm width	Verse Short, steel rails, 145 mm width
Tyre	Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20"	Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40"
Rear derailleur	Shimano Deore M6100, long cage	Shimano Deore M6200, long cage
Cassette	Shimano Deore M6100, 10-51, 12-speed	Shimano M6200, 10-51, 12-speed
Shifter	Shimano Deore M6100, 12-speed	Shimano Deore M6200
Brake	Shimano MT200 hydraulic disc	Shimano hydraulic disc, MT4100 lever, MT410 calliper

Marca: Trek
Modelo: Procaliber 9.5 Gen 3
Ano modelo: 2025
Color principal: Red
Peso (kg): 12.13
Tipo: Bicycle
Familia: Mountain bike sport bike for off-road
Pais de origen: Germany

Brand Trek

Frameset

Frame	Carbono OCLV Mountain, IsoBow, tubo de dirección perfilado, guiado interno, soportes para portabultos y accesorios, post mount equilibrado, UDH, Boost148
Fork	RockShox Judy GOLD, cámara de aire Solo Air, bloqueo TurnKey, tubo de horquilla perfilado, avance de 42 mm, Boost110, Maxle Stealth 15 mm, recorrido de 120 mm

Wheels

Wheels	Bontrager Kovee, doble pared, Tubeless Ready, 28 orificios, anchura de 23 mm, válvula Presta Shimano TC500 aluminio, centerlock, eje pasante de 110x15 mm Shimano TC500 aluminio, centerlock, eje pasante de 148x12 mm
Tyres	Bontrager Sainte-Anne RSL XTR, Tubeless Ready, doble compuesto, aro de aramida, 60 tpi, 29x2.40"

Drivetrain

Shifter	Shimano Deore M6100, 12 velocidades
Cassette	Shimano Deore M6100, 10-51, 12 velocidades
Chain	Shimano Deore M6100, 12 velocidades

Components

Saddle	Verse Short, raíles de cromoly, anchura de 145 mm
Seatpost	Bontrager Line Dropper, recorrido de 150 mm, MaxFlow, guiado interno, 31,6 mm, longitud de 410 mm
Seatpost clamp	De tornillo, 36,4 mm
Handlebar	Bontrager Rhythm Comp, aluminio, 31,8 mm, altura 15 mm, anchura 750 mm
Grips / tape	Trek Line Comp, bloqueo de nailon
Stem	Bontrager Elite, 31,8 mm, compatible con Blendr, 7 grados, longitud de 60 mm
Headset	FSA IS-2, 1-1/8" en la parte superior y 1,5” en la inferior
Front brake	Disco hidráulico Shimano MT200 // Disco hidráulico Shimano MT200 Shimano RT10, centerlock, 160 mm // Shimano RT10, centerlock, 160 mm Dimensiones máximas
Rear brake	Disco hidráulico Shimano MT200 // Disco hidráulico Shimano MT200 Shimano RT10, centerlock, 160 mm // Shimano RT10, centerlock, 160 mm Dimensiones máximas

Geometry

Reach	43
Stack	61.4
Head angle	67
Seat angle	71.5
Effective top tube	59.8
Seat tube	42
Head tube length	9
Chainstay length	43
Wheelbase	113.5
Standover	74.9
Bottom bracket drop	6.4
Bottom bracket height	30.9
Offset	4.3

General info

Model year	2026

We reserve the right to make changes to the product information contained on this site at any time, without prior notice, including with regard to equipment, specifications, models, colours, materials and prices. Due to supply chain issues, compatible parts may be substituted at any time, without prior notice.

The weights of bikes and frames are based on painted frames at the pre-production stage at the time of publication. Weights may vary in final production.
