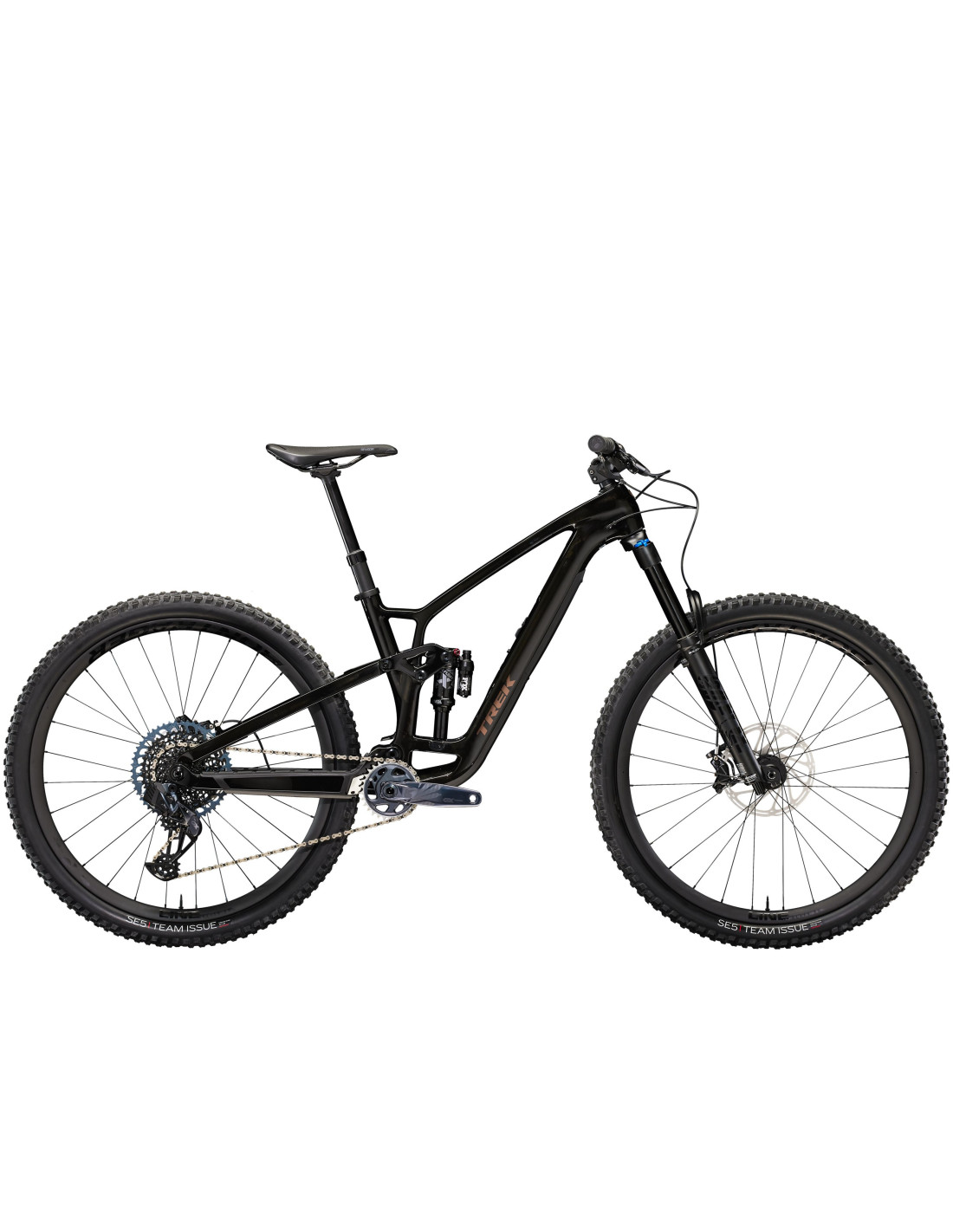

The Fuel EX 9.8 is a rugged trail bike with a lightweight, stiff carbon frame that's smooth and quiet, and allows for precise trail keeping. It is equipped with the latest in technology such as the SRAM GX AXS wireless drivetrain that provides a clean look and is customizable, 150mm front and 140mm rear suspension for maximum control on the most demanding trails, and finally, Bontrager carbon wheels with quick-gear hubs.
Compra a plazos desde 3 cuotas mensuales

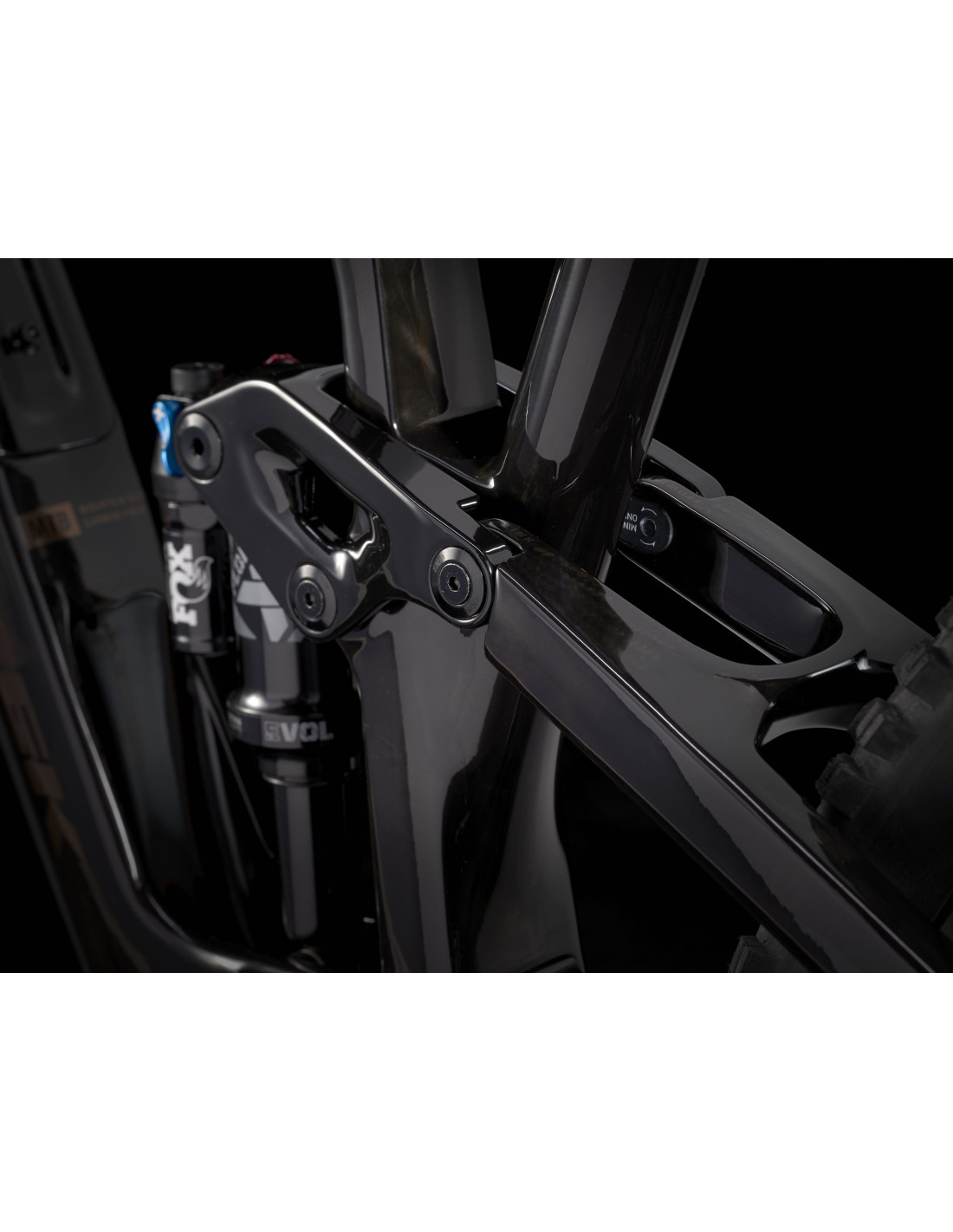

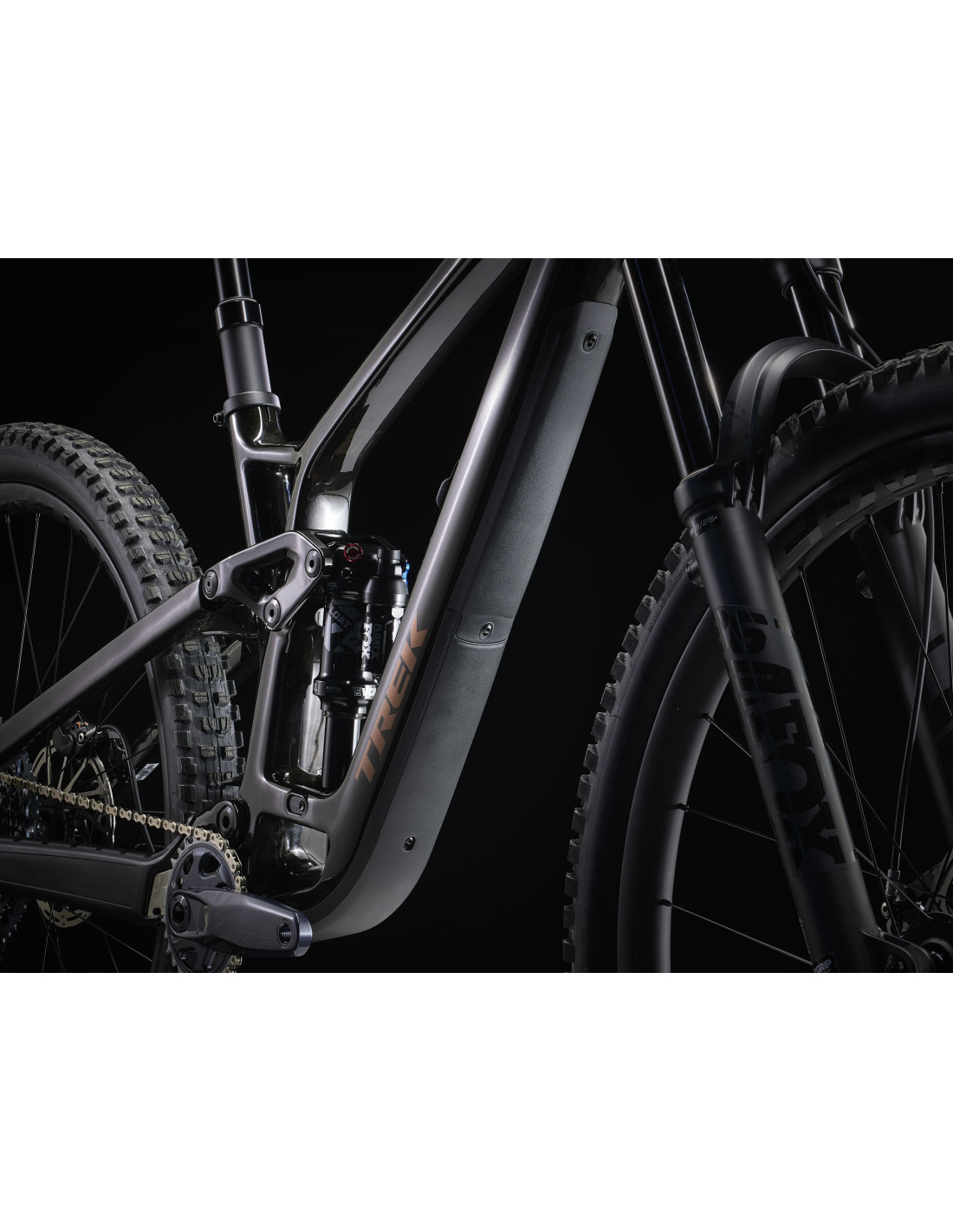

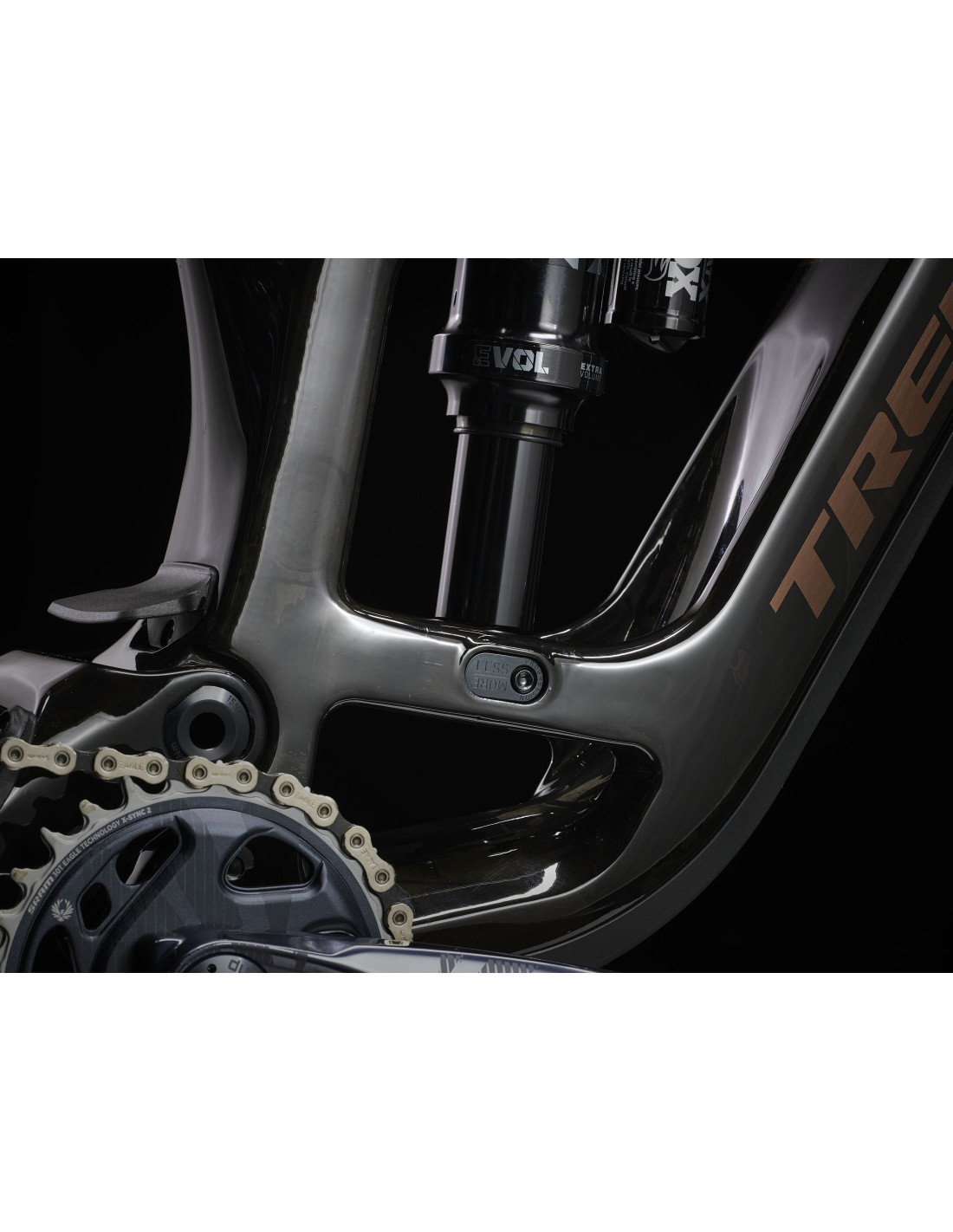

Frame:OCLV Mountain carbon, internal storage, angle adjustable headset, Mino Link adjustable geometry, adjustable suspension tuning, internal cable routing, magnesium rocker linkage, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, tub guard
Frame material:CARBON
Rim size:29
Fork:Fox Performance 36, Float EVOL inner tube, GRIP damping, profiled steerer tube, 44 mm steerer, Boost110, 15 mm Kabolt axle, 150 mm travel
Rear suspension:Fox

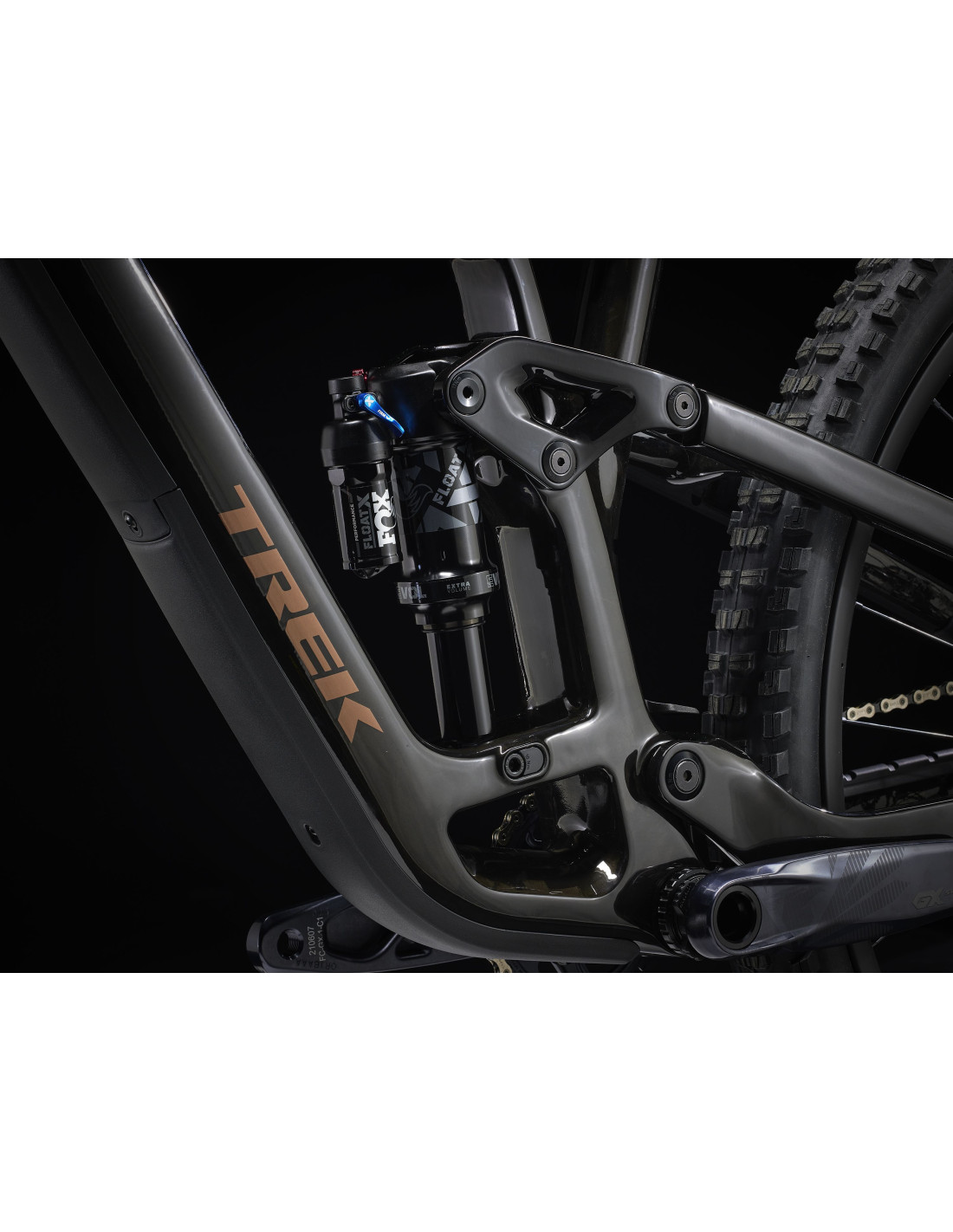

Rear suspension:Fox Performance Float X, 2-position damping, 185 mm x 55 mm
Wheels:Bontrager Line Elite 30

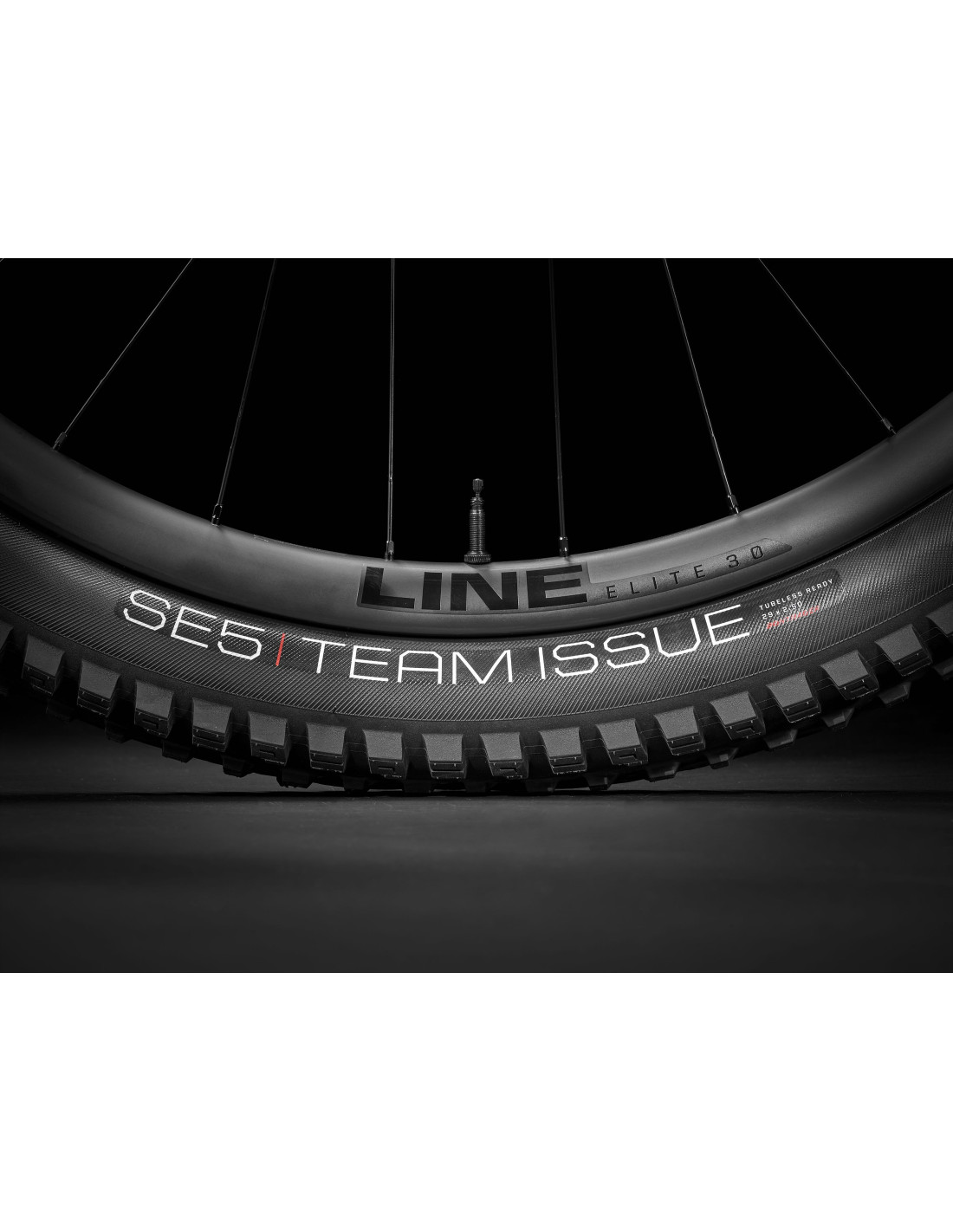

Tires:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid rim, 120 tpi, 29x2.50"
Front hub:Bontrager alloy, sealed bearing, alloy axle, 6 bolt, Boost110, 15 mm thru axle
Rims:Bontrager Line Elite 30, Tubeless Ready
Shift lever:SRAM

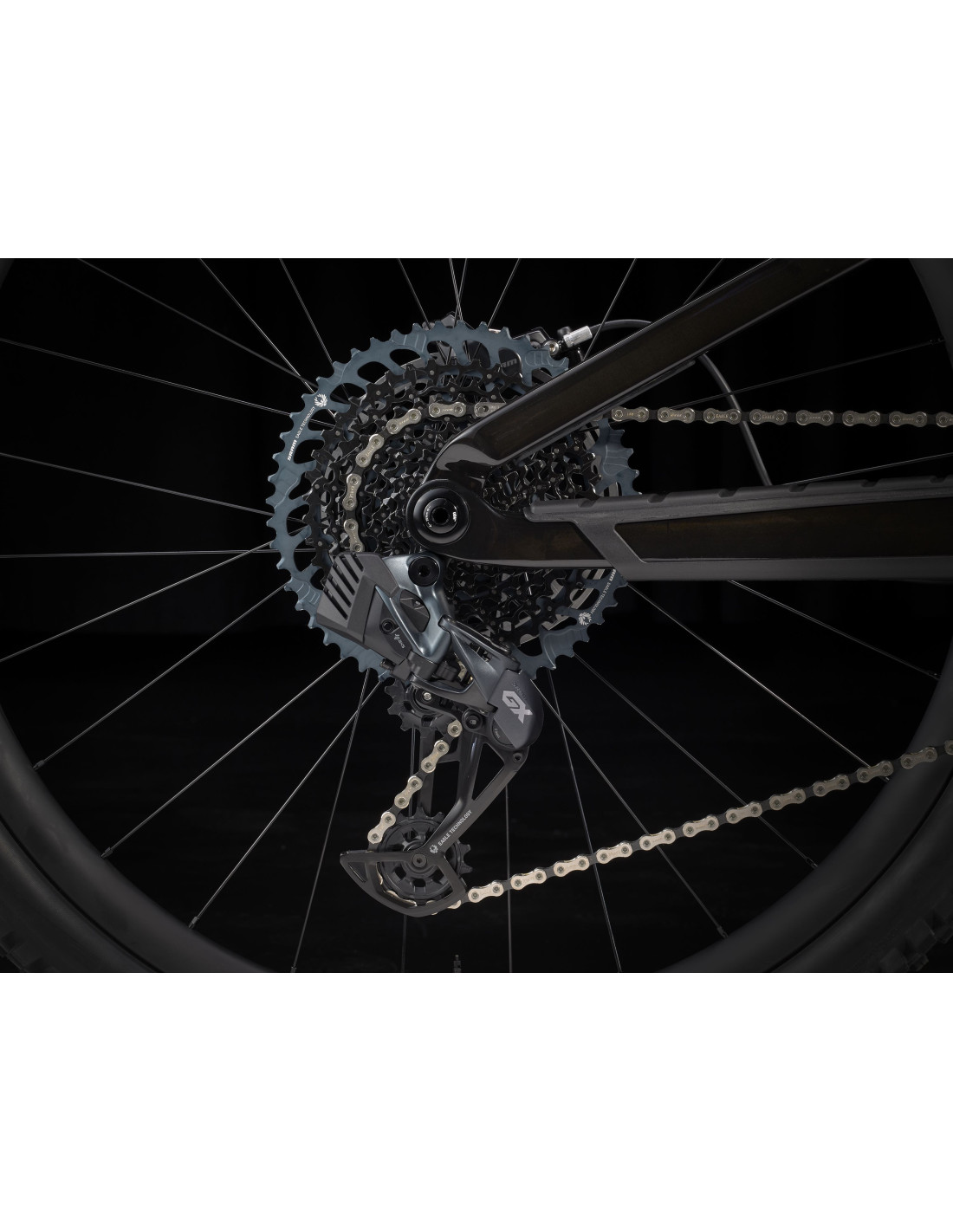

Rear derailleur:SRAM GX Eagle AXS
Crankset:SRAM GX Eagle, DUB MTB Wide, 30D, 55mm chainline, 170mm length
Bottom bracket:SRAM DUB MTB Wide, 73mm, threaded BSA
Cassette:SRAM Eagle XG-1275, 10-52, 12-speed
Chain:SRAM GX Eagle, 12-speed

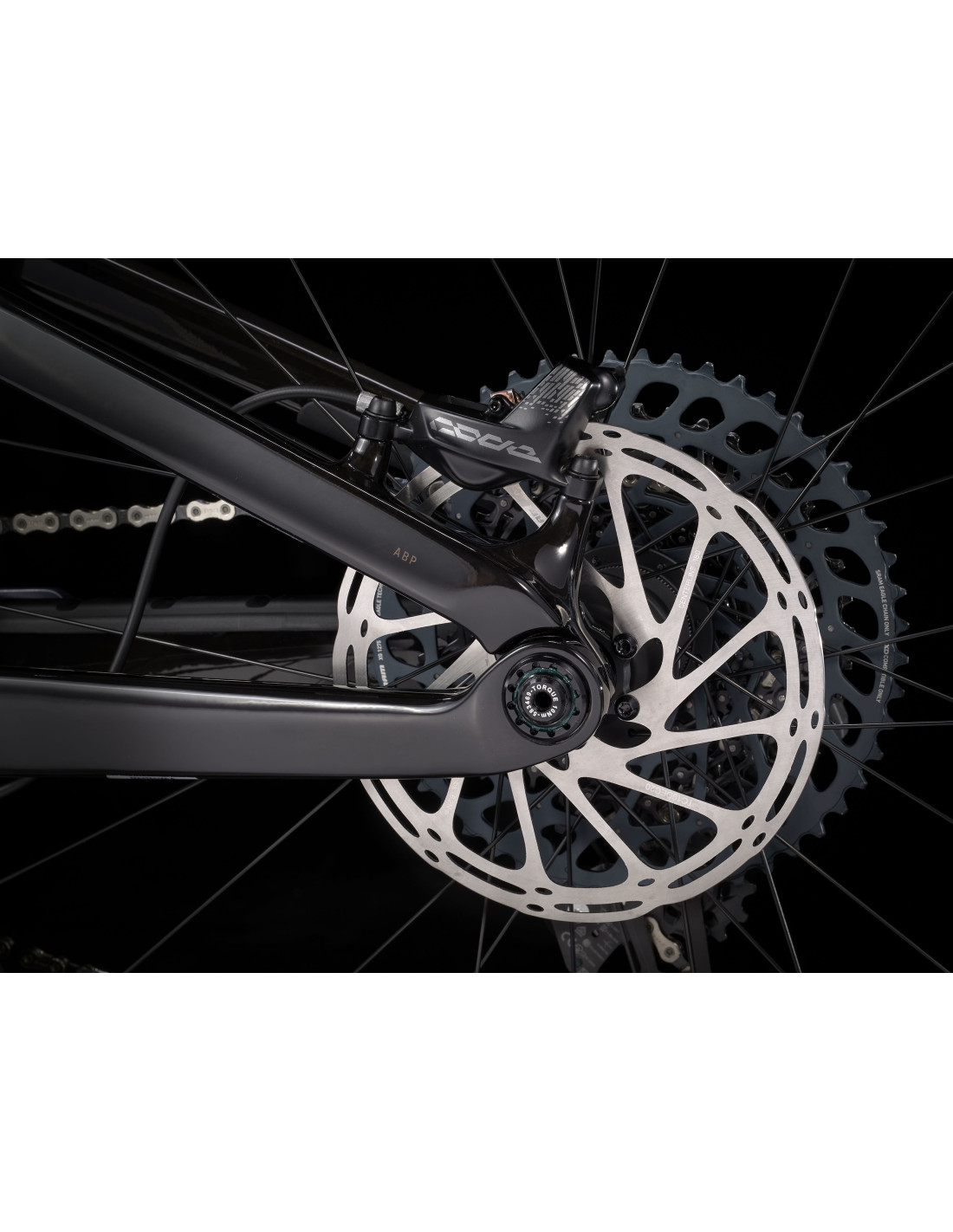

Brake:Hydraulic disc SRAM Code R 4-piston
Disc size:Maximum sizes from
Saddle:Bontrager Arvada, austenite rails, 138 mm wide
Seatpost: Bontrager Line telescopic seatpost Elite, 150 mm travel, MaxFlow, internal guiding, 34.9 mm, 440 mm length
Handlebar:Integrated handlebar and stem system Bontrager RSL, OCLV carbon, 27.5 mm handlebar height, 820 mm width, 0 degree stem height, 45 mm stem length
Steering:Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, compatible with angle adjustment cup
Grips:Bontrager XR Trail Elite, nylon lockout
| Model year | 2023 |
|---|
| Frame material | Carbon |
|---|---|
| Frame type | Unisex |
| Frame size | XL |
| framesize | 47 |
| Fork | Fox Performance 36, cámara de aire Float EVOL, amortiguación GRIP, tubo de horquilla perfilado, avance de 44 mm, Boost110, eje Kabolt de 15 mm, recorrido de 150 mm |
| headset_model | Rodamiento de cartucho integrado, 1-1/8” superior, 1,5” inferior, compatible con cazoleta de ajuste de ángulo |
| Gears | SRAM GX Eagle AXS |
|---|---|
| Shifters | SRAM GX Eagle AXS, 12 speed |
| Rear derailleur | SRAM GX Eagle AXS |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 velocidades |
| Chain | SRAM GX Eagle, 12 velocidades |
| Crankset | SRAM GX Eagle, DUB MTB Wide, 30D, línea de cadena de 55 mm, longitud de 170 mm SRAM DUB MTB Wide, 73 mm, BSA roscado |
| Wheels | Bontrager Line Elite 30, carbono OCLV Mountain, Tubeless Ready, 6 tornillos, Boost110, eje pasante de 15 mm, 29” Bontrager Line Elite 30, carbono OCLV Mountain, Tubeless Ready, Rapid Drive 108, 6 tornillos, núcleo SRAM XD, Boost148, eje pasante de 12 mm, |
|---|---|
| Tyres | Bontrager SE5 Team Issue, Tubeless Ready, flancos Core Strength, aro de aramida, 120 tpi, 29x2,50” |
| Front wheel size | 29 |
| Rear wheel size | 29 |
| Front brake | Disco hidráulico SRAM Code R de 4 pistones SRAM CenterLine, 6 tornillos, borde redondeado, 180 mm Tamaños máximos del |
|---|---|
| Front brake brand | Sram |
| Rear brake | Disco hidráulico SRAM Code R de 4 pistones SRAM CenterLine, 6 tornillos, borde redondeado, 180 mm Tamaños máximos del |
| Rear brake brand | Sram |
| Handlebar | Sistema de manillar y potencia integrado Bontrager RSL, carbono OCLV, altura del manillar de 27,5 mm, anchura de 820 mm, altura de la potencia de 0 grados, longitud de la potencia 45 mm |
|---|---|
| bartape_or_grips_model | Bontrager XR Trail Elite, bloqueo de nailon |
| Saddle | Bontrager Arvada, raíles de austenita, anchura de 138 mm |
| Seatpost | Tija telescópica Bontrager Line Elite, recorrido de 200 mm, MaxFlow, guiado interno, 34,9 mm, longitud de 550 mm |
| Reach | 52.1 |
|---|---|
| Stack | 63 |
| Head angle | 65 |
| Seat tube angle | 71.3 |
| Top tube length | 66 |
| Seat tube length | 47 |
| Head tube length | 12 |
| Chainstay length | 44.3 |
| Wheelbase | 128.6 |
| Standover height | 76.7 |
| Bottom bracket drop | 3 |
| bottom_bracket_height | 34.3 |
| Trail | 12.5 |
| Offset | 4.4 |
