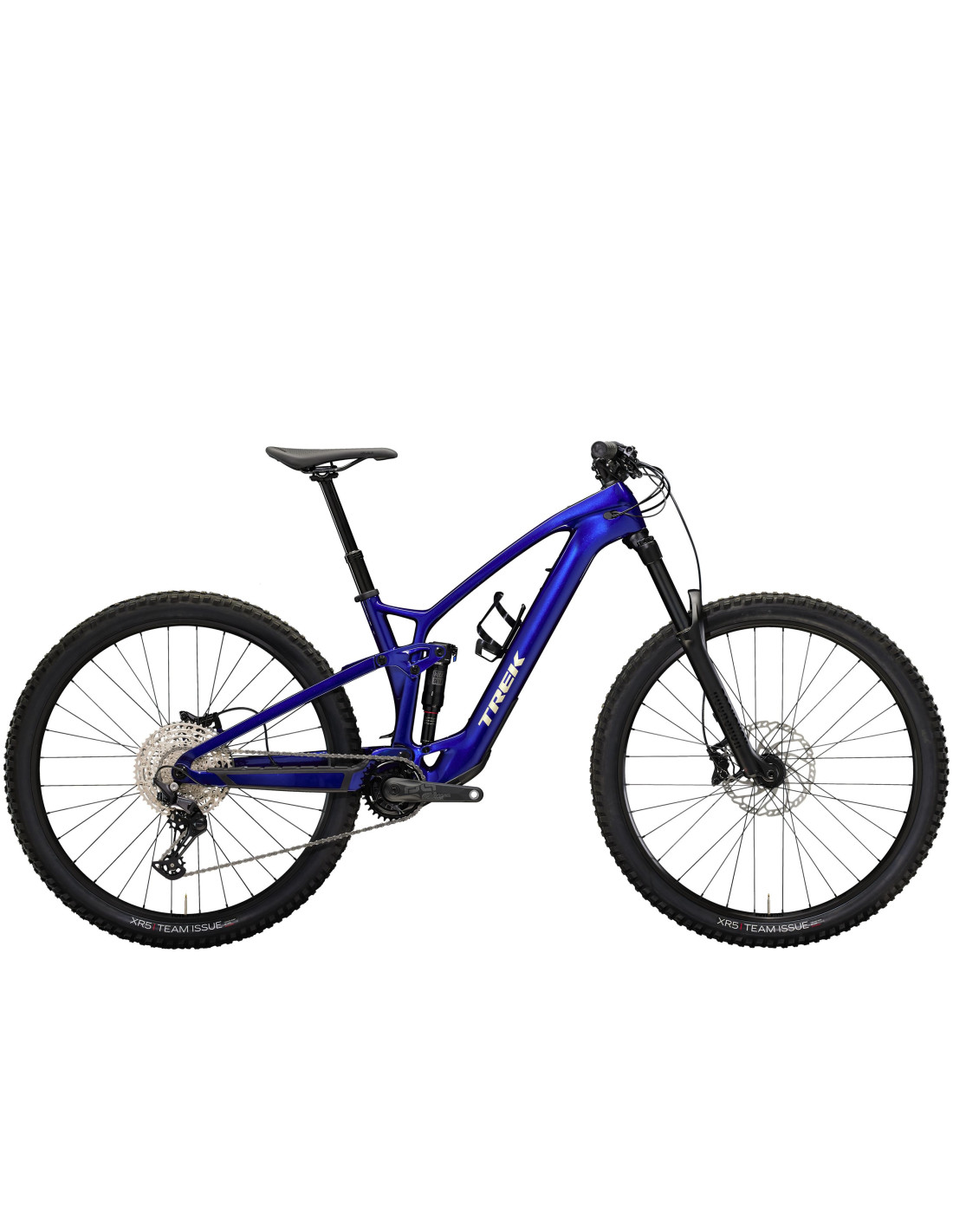

The Fuel EXe 9.5 Deore is a new category of electric mountain bikes that combines the virtues of pedal-assist and conventional bikes. It incorporates a carbon frame and a compact motor resulting in a light, quiet and agile bike. It takes advantage of the benefits of pedal assist on long climbs, and the agile, fun feeling of a conventional mountain bike on descents. Equipped with a 150 mm RockShox Gold RL fork for maximum performance
Compra a plazos desde 3 cuotas mensuales

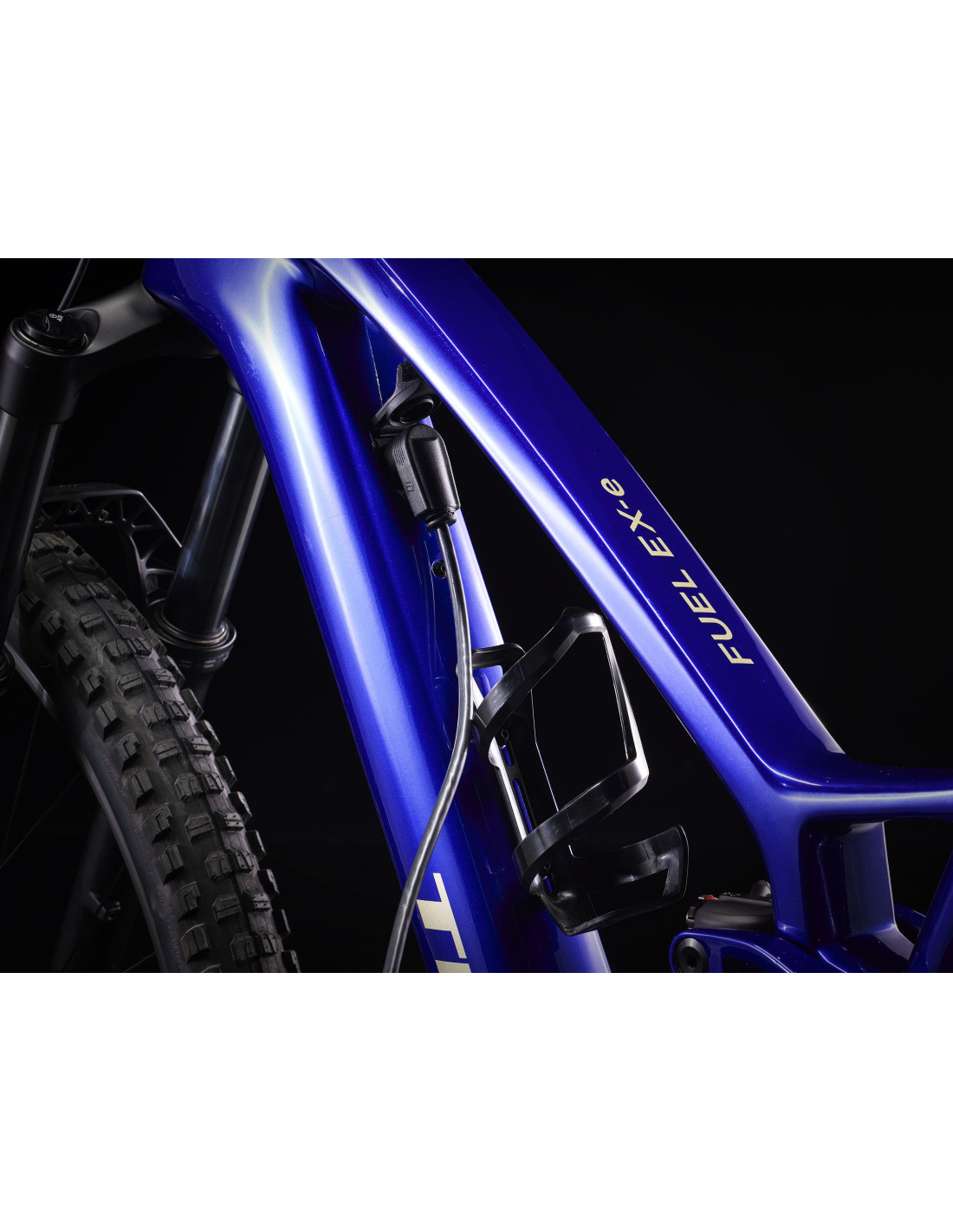

Frame:OCLV Mountain carbon, removable battery, internal guiding, aluminum rocker crankset, 34.9mm seat tube, top chain guide bracket, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Frame material:CARBON
Rim size:29
Fork:RockShox 35 Gold RL, DebonAir, Motion Control, lockout, profiled steerer tube, 44 mm steerer, Boost110, 15 mm Maxle Stealth, 150 mm travel
Rear suspension:RockShox

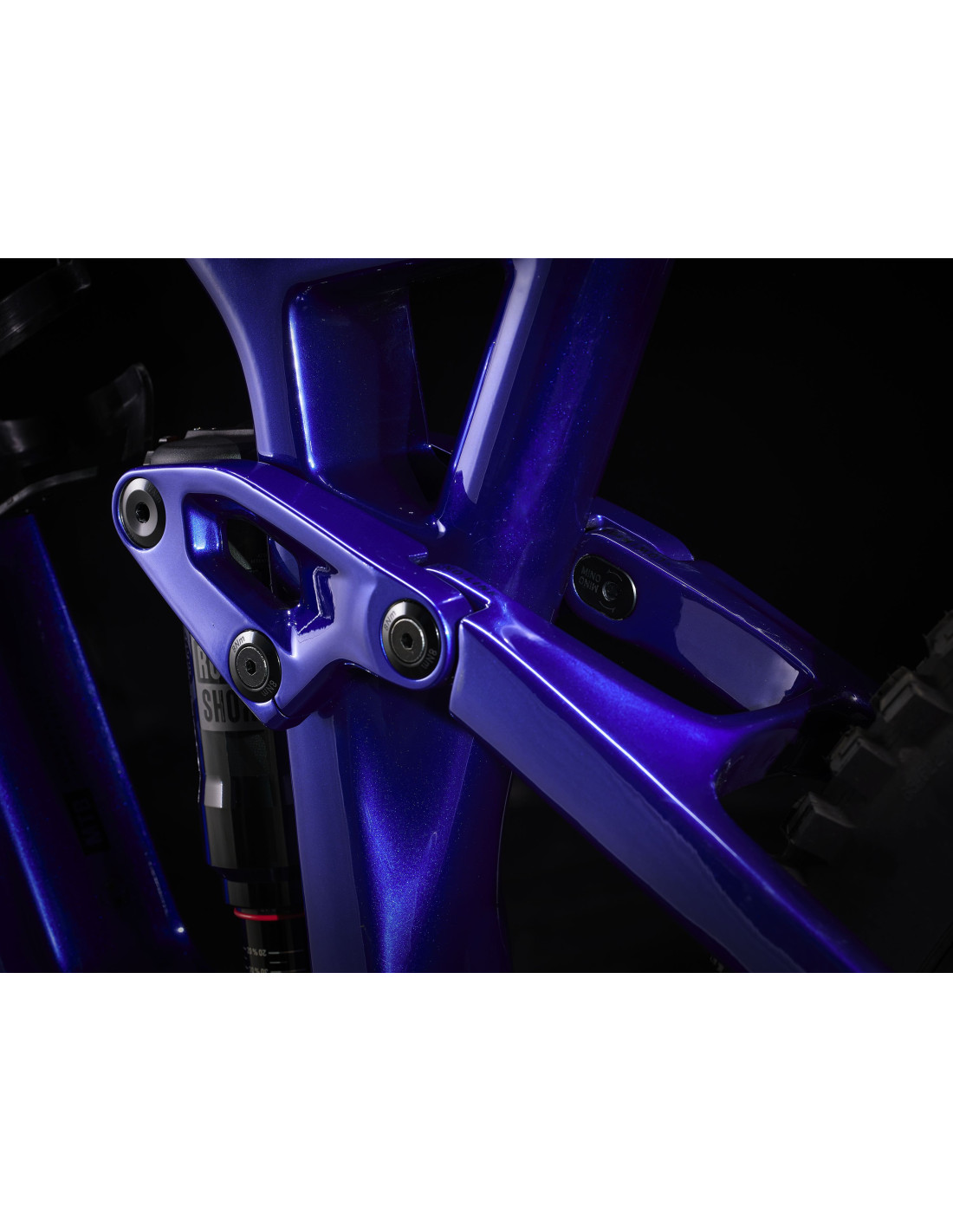

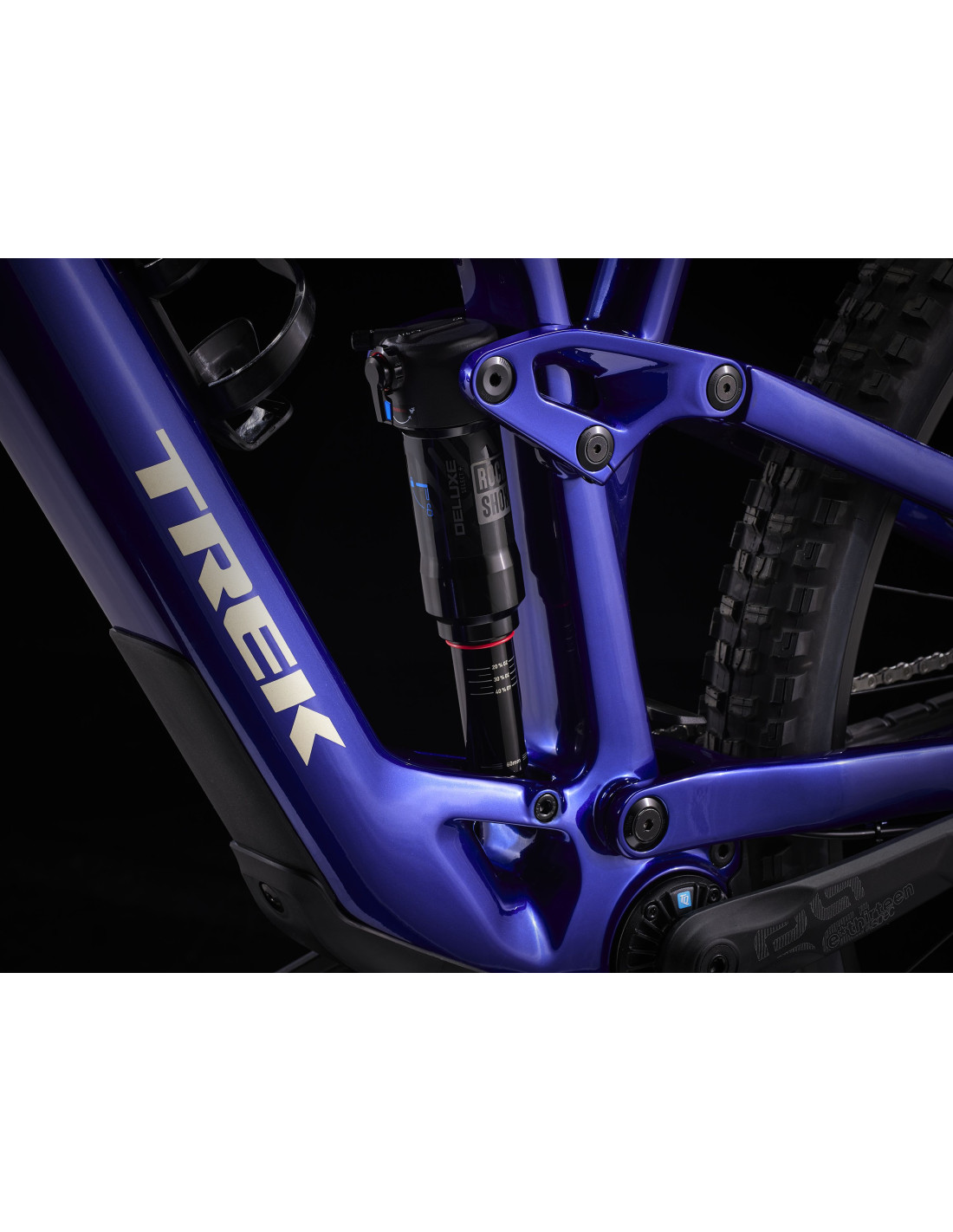

Rear suspension:RockShox Deluxe Select+ RT, 205mm x 60mm
Tires:Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid rim, 60 tpi, 29x2.50"
Front hub: Bontrager sealed bearing, aluminum axle, 6 bolts, Boost110, 15mm thru axle
Rear hub:Bontrager alloy, sealed bearing, alloy axle, 6 bolts, Shimano 8/9/10 hub, Boost148, 12mm thru axle
Shift lever:Shimano
Rear derailleur:Shimano Deore M6100, long cage
Crankset:E*thirteen E*spec Plus, 160 mm length // E*thirteen E*spec Plus, 165 mm length
Cassette:SunRace CSMZ800 11-51, 12 speed
Chain:Shimano Deore M6100, 12 speed

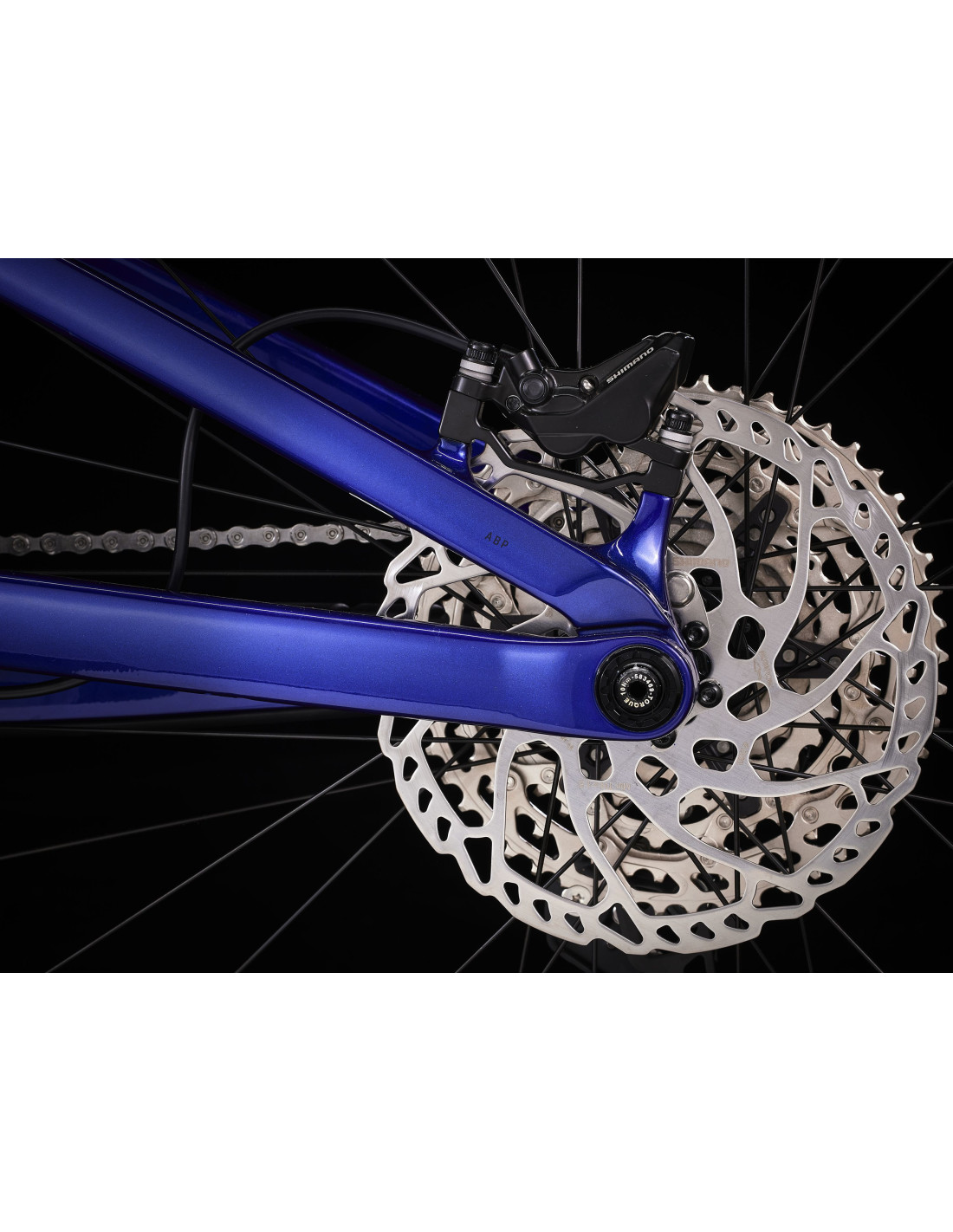

Brake:TRP Slate EVO hydraulic disc
Disc size:Maximum sizes from
Saddle:Bontrager Arvada, steel rails, 138 mm wide
Seatpost:TranzX JD-YSI-22PLQ, 170 mm travel, internal guiding, 34.9 mm, length 497 mm
Handlebars:Bontrager Rhythm Comp, aluminum, 31.8 mm, height 15 mm, width 750 mm
Stem:Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 50 mm length
Grips:Bontrager XR Trail Comp with nylon lockout

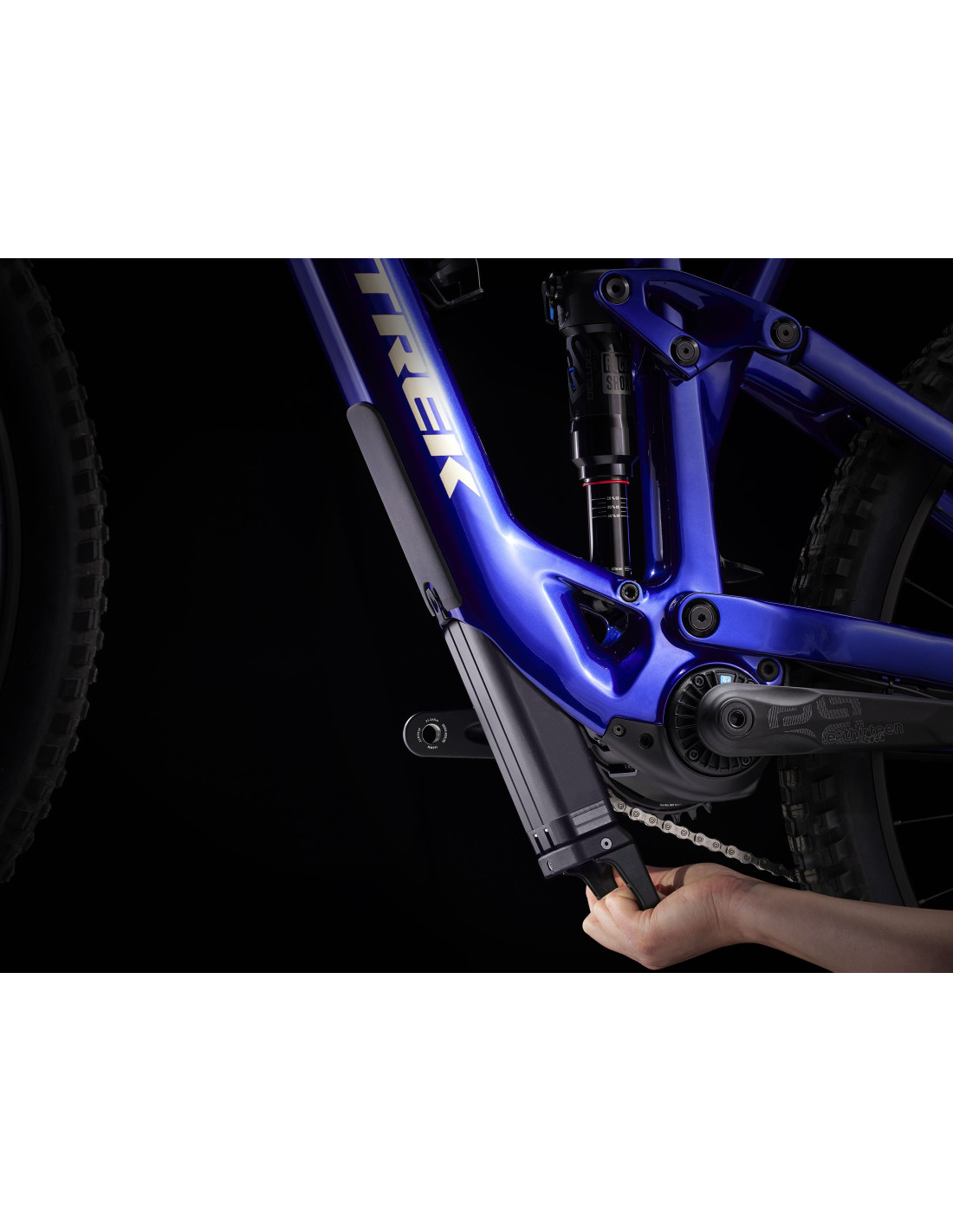

Battery:TQ 360 Wh

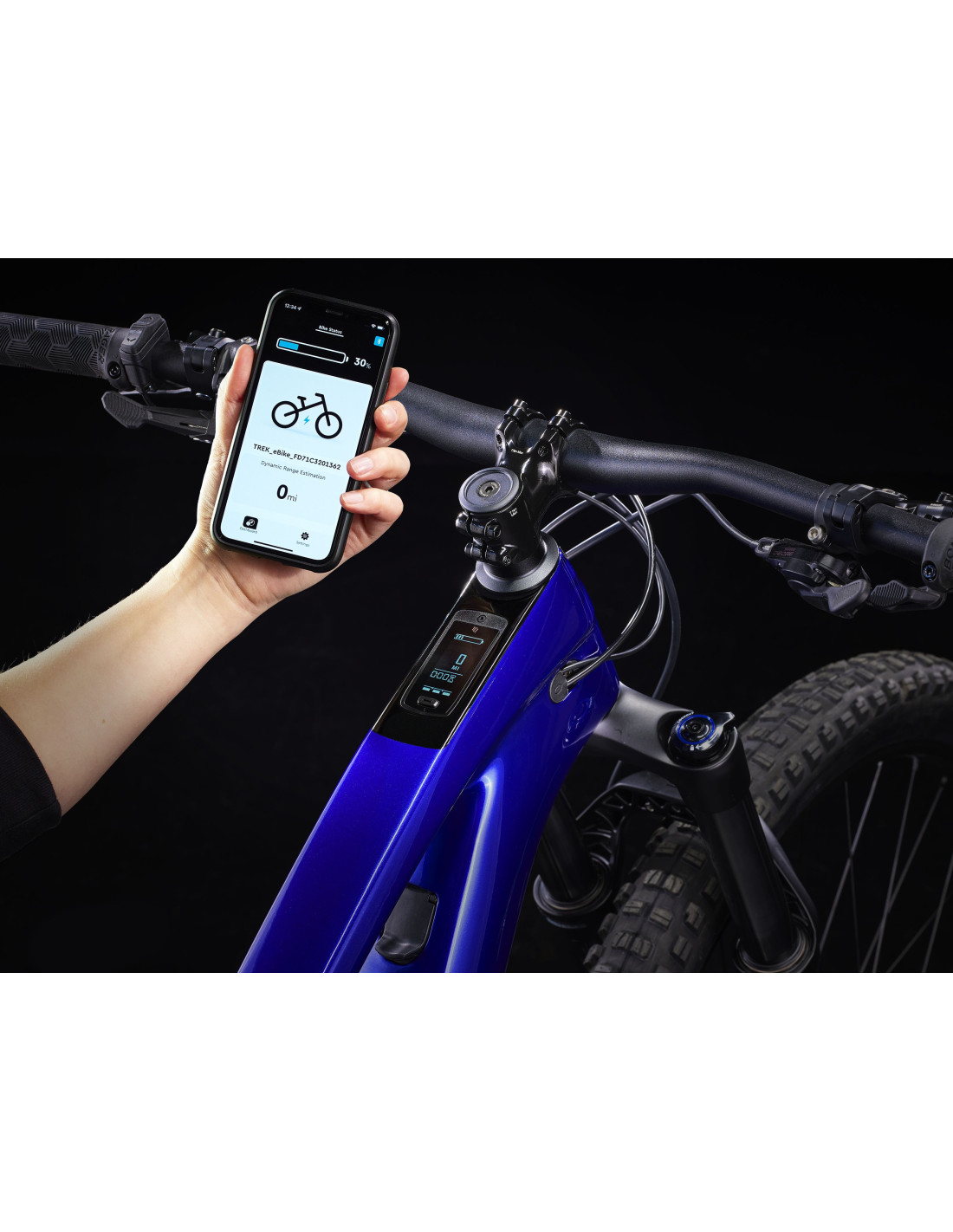

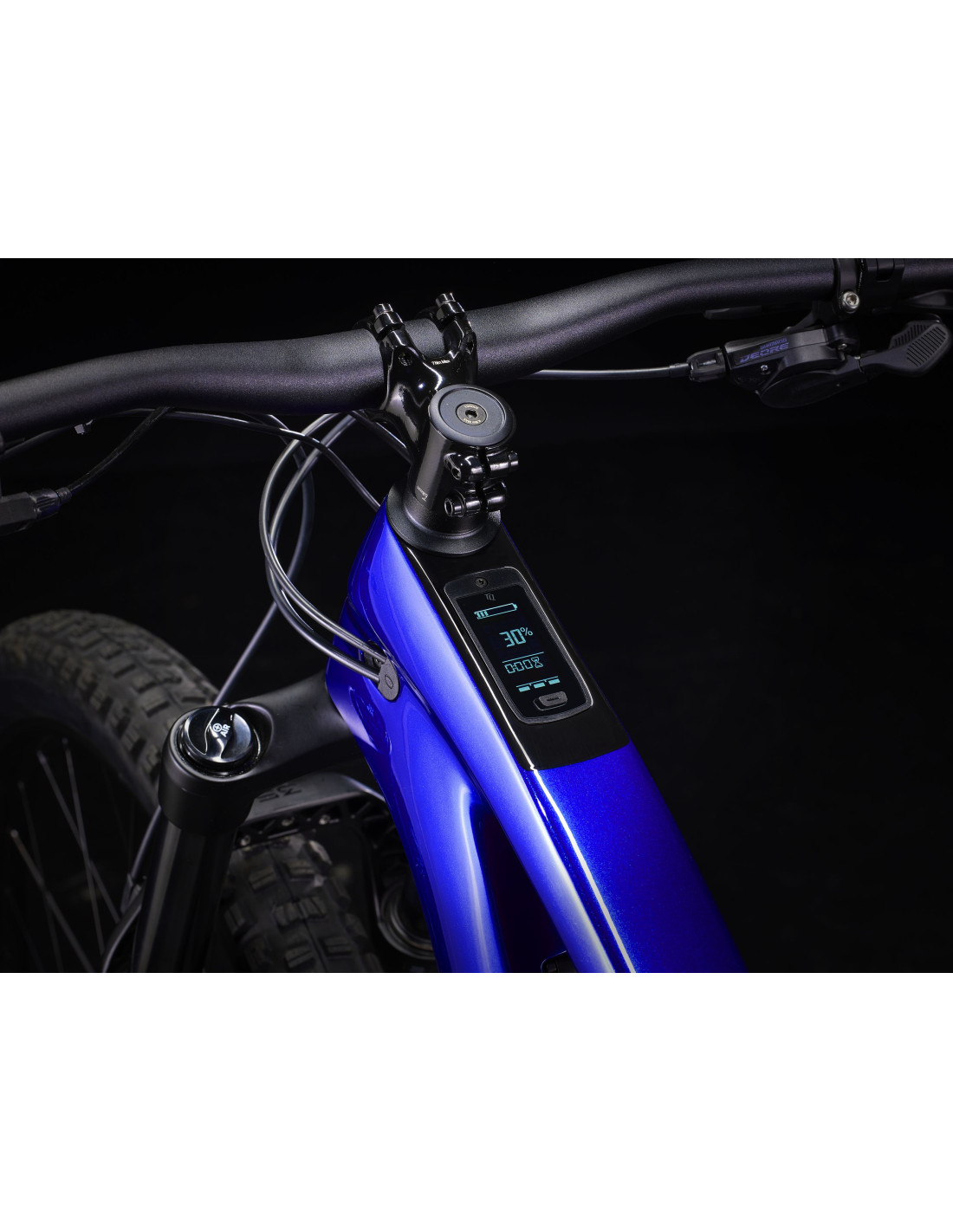

Controller:TQ LED display with Bluetooth and ANT+ connectivity
Motor:TQ-HPR50, 50 Nm, 250 watt max continuous power rating, 300 watt max power rating
| Model year | 2023 |
|---|
| Frame material | Carbon |
|---|---|
| Frame type | Unisex |
| Frame size | L |
| framesize | 44 |
| Fork | RockShox 35 Gold RL, DebonAir, Motion Control, bloqueo, tubo de horquilla perfilado, avance de 44 mm, Boost110, Maxle Stealth de 15 mm, recorrido de 150 mm |
| Gears | Shimano Deore M6100, caja larga |
|---|---|
| Shifters | Shimano Deore M6100, 12 velocidades |
| Rear derailleur | Shimano Deore M6100, caja larga |
| Cassette | SunRace CSMZ800 11-51, 12 speed |
| Chain | Shimano Deore M6100, 12 velocidades |
| Crankset | E*thirteen E*spec Plus, longitud de 160 mm // E*thirteen E*spec Plus, longitud de 165 mm |
| Wheels | Rodamiento sellado Bontrager, eje de aluminio, 6 tornillos, Boost110, eje pasante de 15 mm Bontrager de aleación, rodamiento sellado, eje de aleación, 6 tornillos, nucleo Shimano 8/9/10, Boost148, eje pasante de 12 mm |
|---|---|
| Tyres | Bontrager XR5 Team Issue, Tubeless Ready, carcasa Inner Strength, aro de aramida, 60 tpi, 29x2,50" |
| Front wheel size | 29 |
| Rear wheel size | 29 |
| Front brake | Disco hidráulico TRP Slate EVO TRP, 6 tornillos, 203 mm Tamaños máximos del |
|---|---|
| Rear brake | Disco hidráulico TRP Slate EVO TRP, 6 tornillos, 203 mm Tamaños máximos del |
| Handlebar | Bontrager Rhythm Comp, aluminio, 31,8 mm, altura 15 mm, anchura 750 mm |
|---|---|
| stem_model | Bontrager Comp, 31,8 mm, compatible con Blendr, 7 grados, longitud de 50 mm |
| bartape_or_grips_model | Bontrager XR Trail Comp con bloqueo de nylon |
| Saddle | Bontrager Arvada, raíles acero, anchura 138 mm |
| Seatpost | TranzX JD-YSI-22PLQ, recorrido de 170 mm, guiado interno, 34,9 mm, longitud 497 mm |
| Reach | 48.9 |
|---|---|
| Stack | 62.5 |
| Head angle | 65.3 |
| Seat tube angle | 70.8 |
| Top tube length | 62.9 |
| Seat tube length | 43.5 |
| Head tube length | 11 |
| Chainstay length | 43.8 |
| Wheelbase | 124.6 |
| Standover height | 73.9 |
| Bottom bracket drop | 3.2 |
| bottom_bracket_height | 34.1 |
| Trail | 12.4 |
| Offset | 4.4 |
