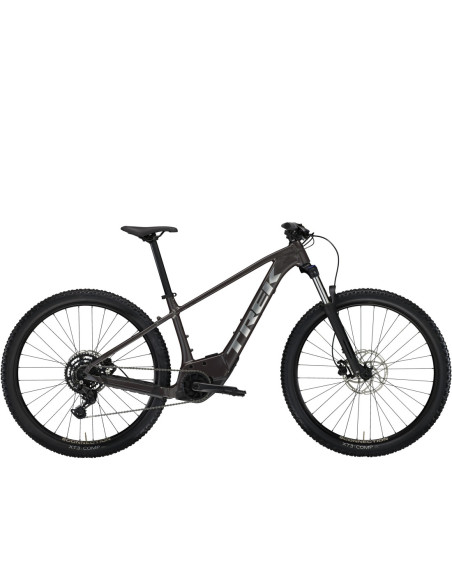

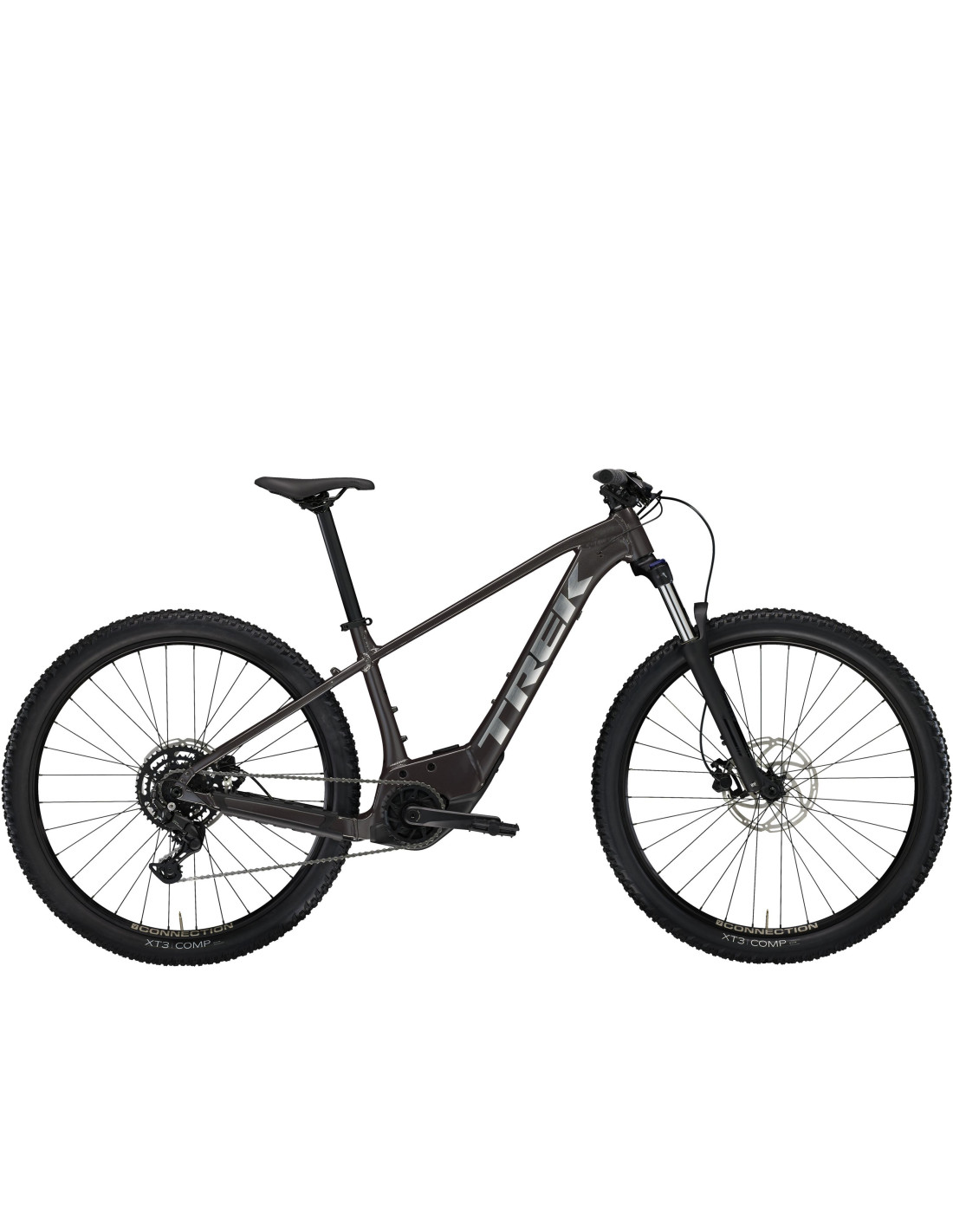

The Marlin+ 6 is an electric mountain bike ready to propel you on the trails without spending all your savings. It has the same safe and fun geometry of the conventional Marlin, but with the added power of the Active Line Plus motor from Bosch. The 120mm suspension fork soaks up rocks, roots and bumps, while the 9-speed Shimano CUES drivetrain is durable and reliable, ideal for tackling any terrain.
Compra a plazos desde 3 cuotas mensuales

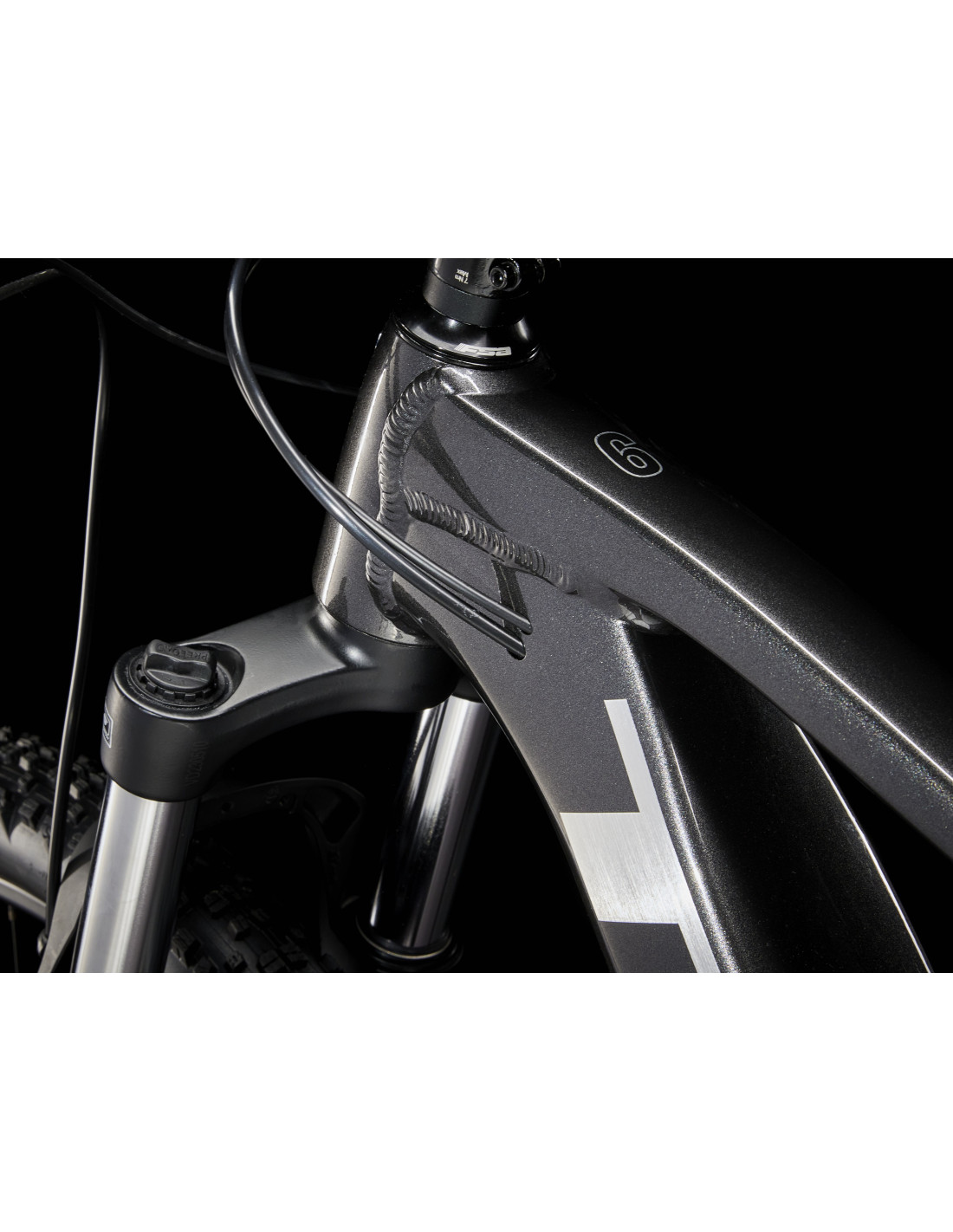

Frame:Alpha Gold aluminum, profiled steerer tube, internal guiding, rack, fender and kickstand mount, UDH, Boost148, 12 mm thru axle
Frame material:ALUMINIUM
Rim size:29

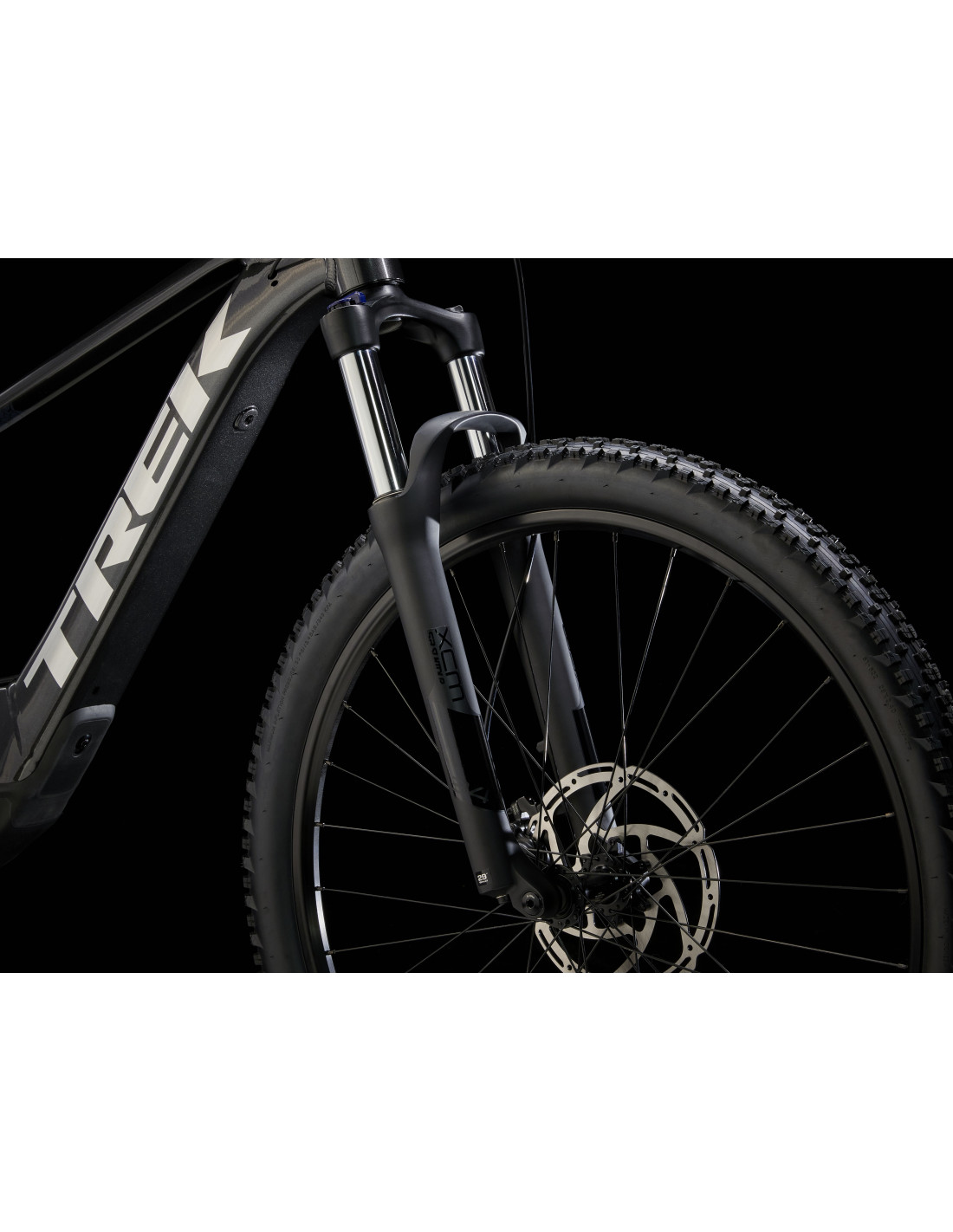

Fork:SR Suntour XCM 34, spring, preload, lockout, profiled steerer tube, 44 mm steerer, Boost110, 15 mm thru axle, 120 mm travel
Tires:Bontrager XT3 Comp, wire rim, 30 tpi, 29 x 2.40"
Front hub:Bontrager alloy, sealed bearing, alloy axle, centerlock, Boost110, 15 mm thru axle
Rear hub:Formula CL-3248M, aluminum, CenterLock, Shimano 8/9/10 hub, Boost148, 12 mm thru axle
Rims:Bontrager Connection, double wall, 32 holes, 20 mm wide, Presta valve
Shift lever:Shimano

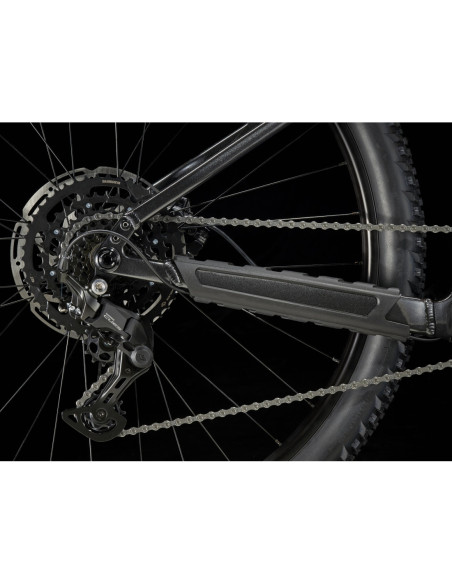

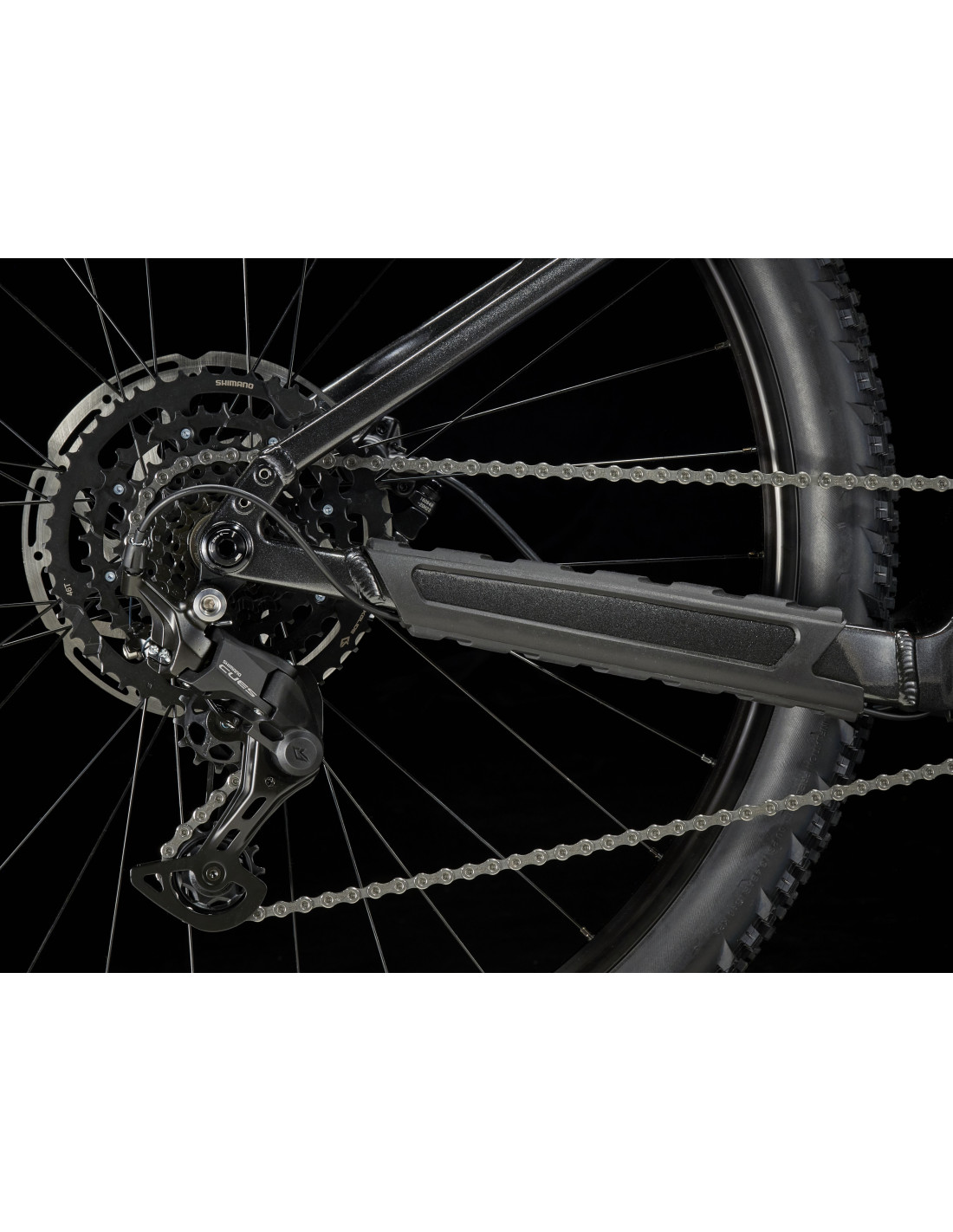

Rear derailleur:Shimano CUES U4000
Crankset:FSA CK-220, 165 mm length
Cassette:Shimano LINKGLIDE LG300, 11-46, 9-speed
Chain:Shimano LG500, 9/10/11-speed
Disc size:
maximum sizesPedals:VP-536 nylon platform

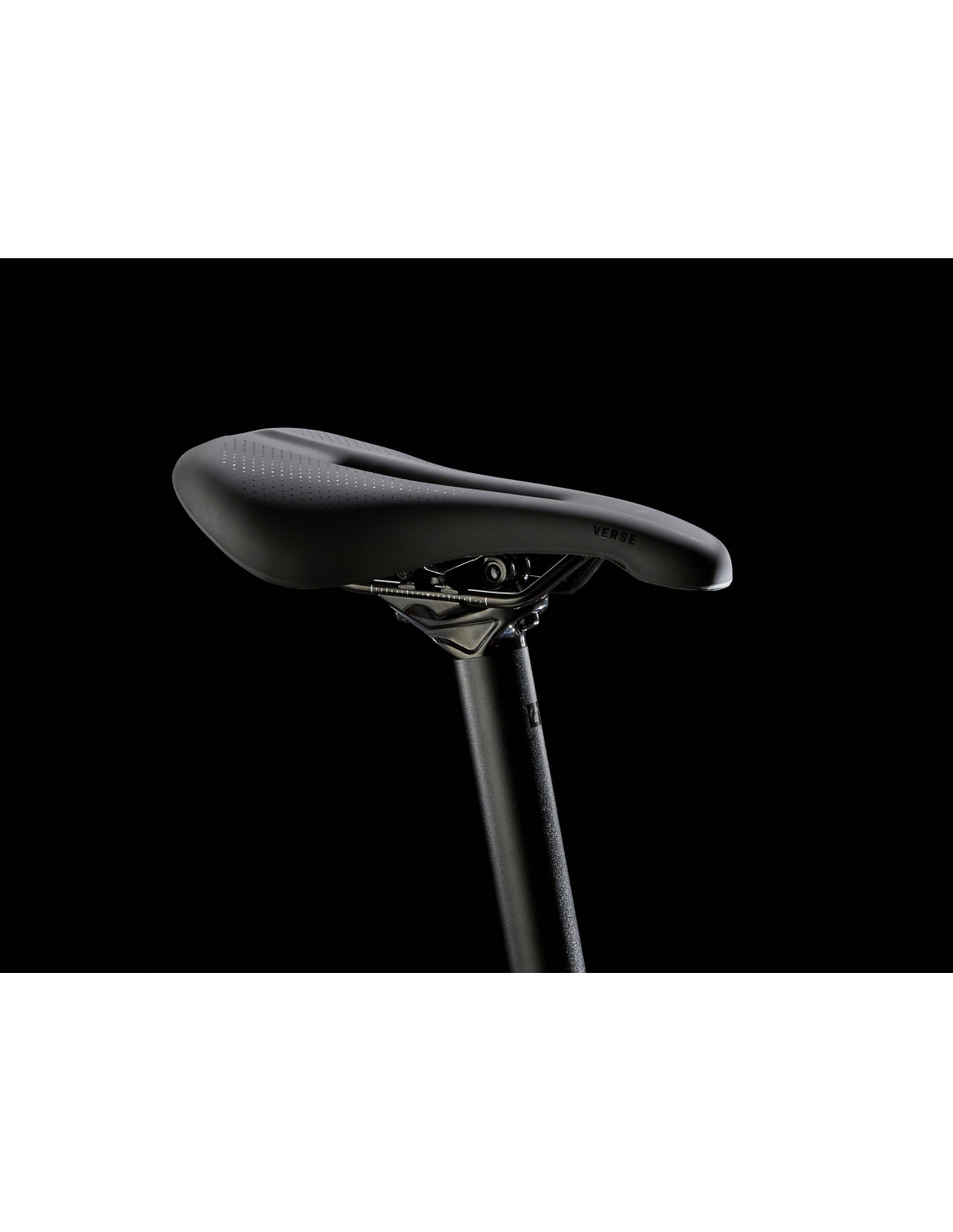

Saddle:Bontrager Arvada, steel rails, 138 mm width
Seatpost:Bontrager alloy, 31.6 mm, 12 mm setback, 400 mm length
Handlebars:Bontrager aluminum, 31.8 mm, 15 mm height, 750 mm width
Stem:Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length
Steering:Semi-integrated, loose ball bearing, 1-1/8" on top and 1.5" on bottom
Grips:Bontrager XR Endurance Comp, lockout

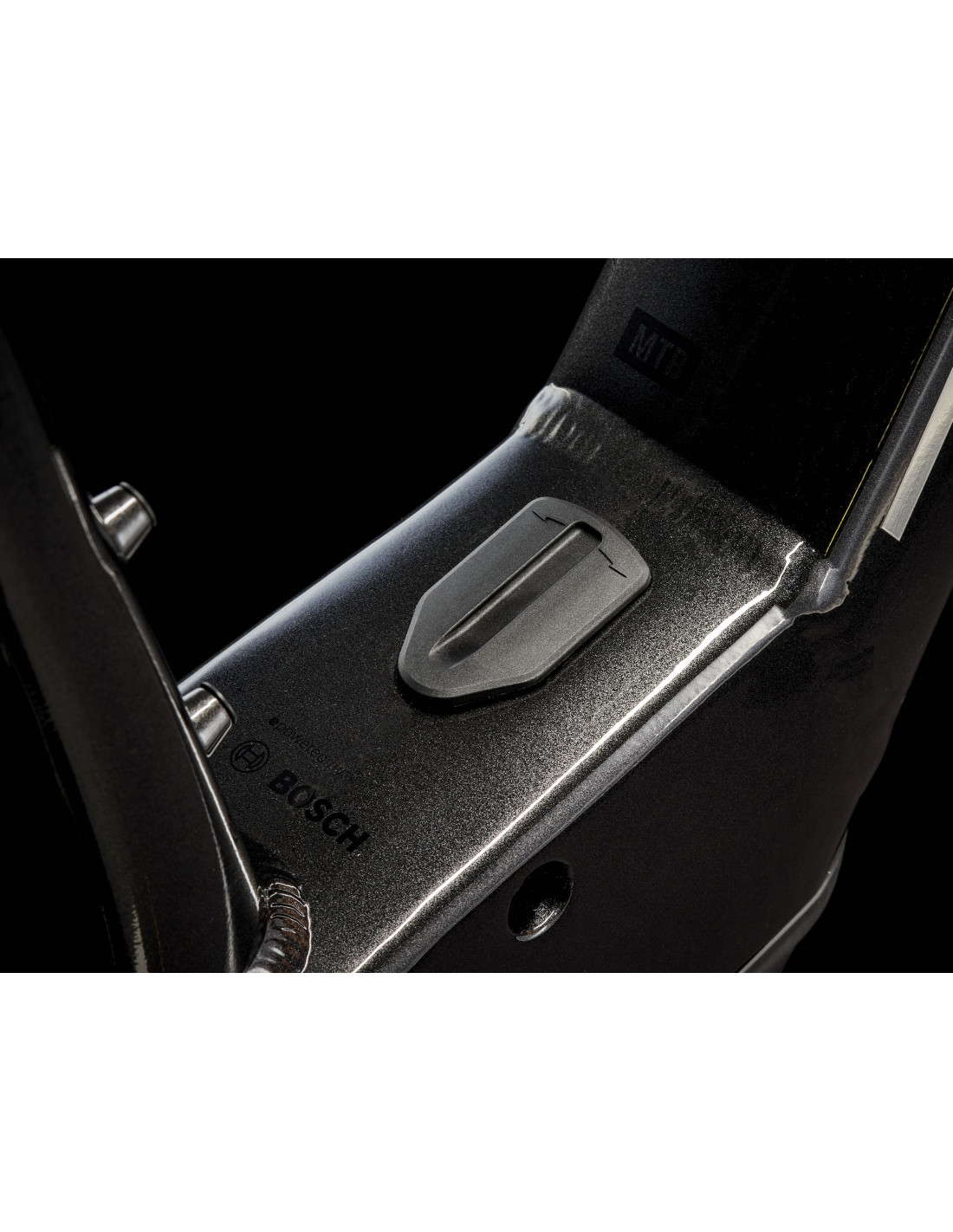

Battery:Bosch CompactTube 400 Wh

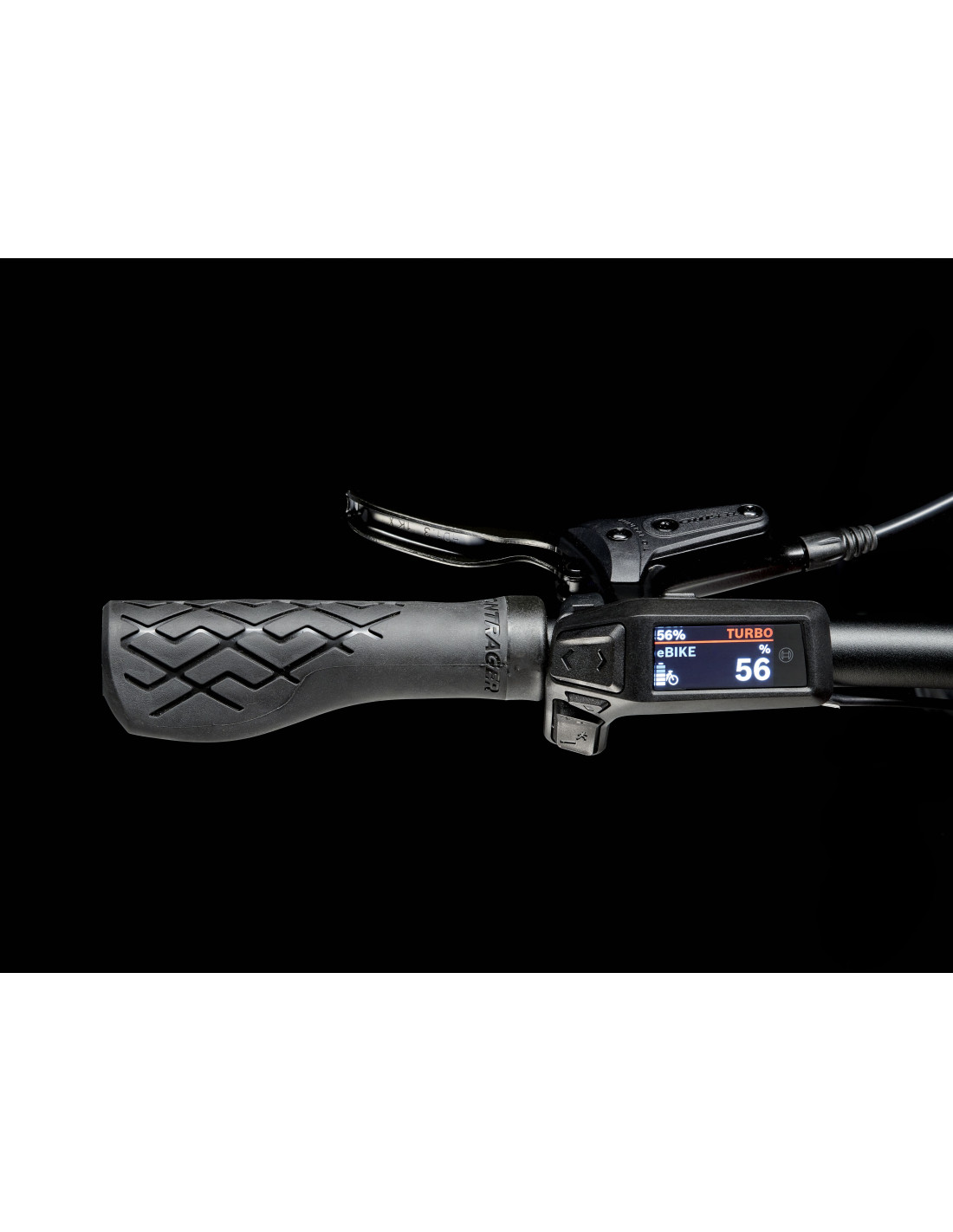

Controller:Bosch Purion 200

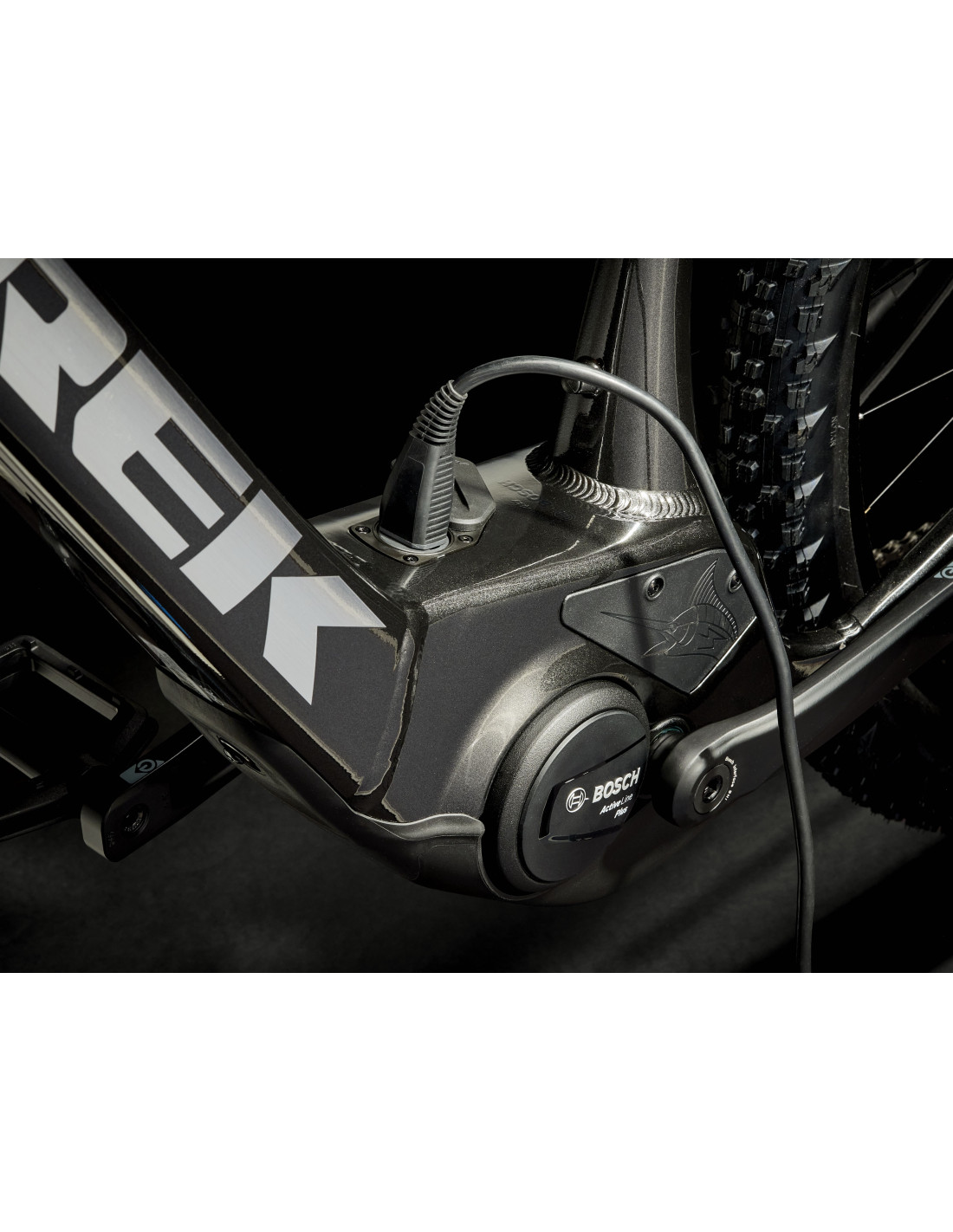

Motor:Bosch Active Line Plus, 50 Nm
| Model year | 2025 |
|---|
| Frame material | Aluminium |
|---|---|
| Frame type | Unisex |
| Frame size | S |
| framesize | 37 |
| Fork | SR Suntour XCM 34, muelle, precarga, bloqueo, tubo de horquilla perfilado, avance de 44 mm, Boost110, eje pasante de 15 mm, recorrido de 120 mm |
| headset_model | Semintegrado, rodamiento de bolas sueltas, 1-1/8” en la parte superior y 1,5” en la inferior |
| Gears | Shimano CUES U4000 |
|---|---|
| Shifters | Shimano U4000, 9 velocidades |
| Rear derailleur | Shimano CUES U4000 |
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 velocidades |
| Chain | Shimano LG500, 9/10/11 velocidades |
| Crankset | FSA CK-220, longitud de 165 mm |
| Wheels | Bontrager Connection, doble pared, 32 agujeros, anchura 20 mm, válvula Presta Bontrager de aleación, rodamiento sellado, eje de aleación, centerlock, Boost110, eje pasante 15 mm Formula CL-3248M, aluminio, CenterLock, núcleo Shimano 8/9/10, Boost148, eje |
|---|---|
| Tyres | Bontrager XT3 Comp, aro de alambre, 30 tpi, 27,5 x 2,40" |
| Front wheel size | 27.5 |
| Rear wheel size | 27.5 |
| Front brake | Tektro, centerlock, 203 mm Tamaños máximos del |
|---|---|
| Rear brake | Tektro, centerlock, 203 mm Tamaños máximos del |
| Handlebar | Bontrager de aluminio, 31,8 mm, altura de 15 mm, anchura de 720 mm |
|---|---|
| stem_model | Bontrager Comp, 31,8 mm, 7 grados, longitud 35 mm |
| bartape_or_grips_model | Bontrager XR Endurance Comp, bloqueo |
| Saddle | Bontrager Arvada, raíles acero, anchura 138 mm |
| Seatpost | Bontrager de aleación, 31,6 mm, retroceso de 12 mm, longitud de 330 mm |
| Reach | 41.5 |
|---|---|
| Stack | 59 |
| Head angle | 66.5 |
| Seat tube angle | 73.8 |
| Top tube length | 58.4 |
| Seat tube length | 37 |
| Head tube length | 10 |
| Chainstay length | 47 |
| Wheelbase | 116.6 |
| Standover height | 71 |
| Bottom bracket drop | 4.5 |
| bottom_bracket_height | 31.3 |
| Trail | 11 |
| Offset | 4.6 |
| Pedals | Plataforma de nylon VP-536 |
|---|
