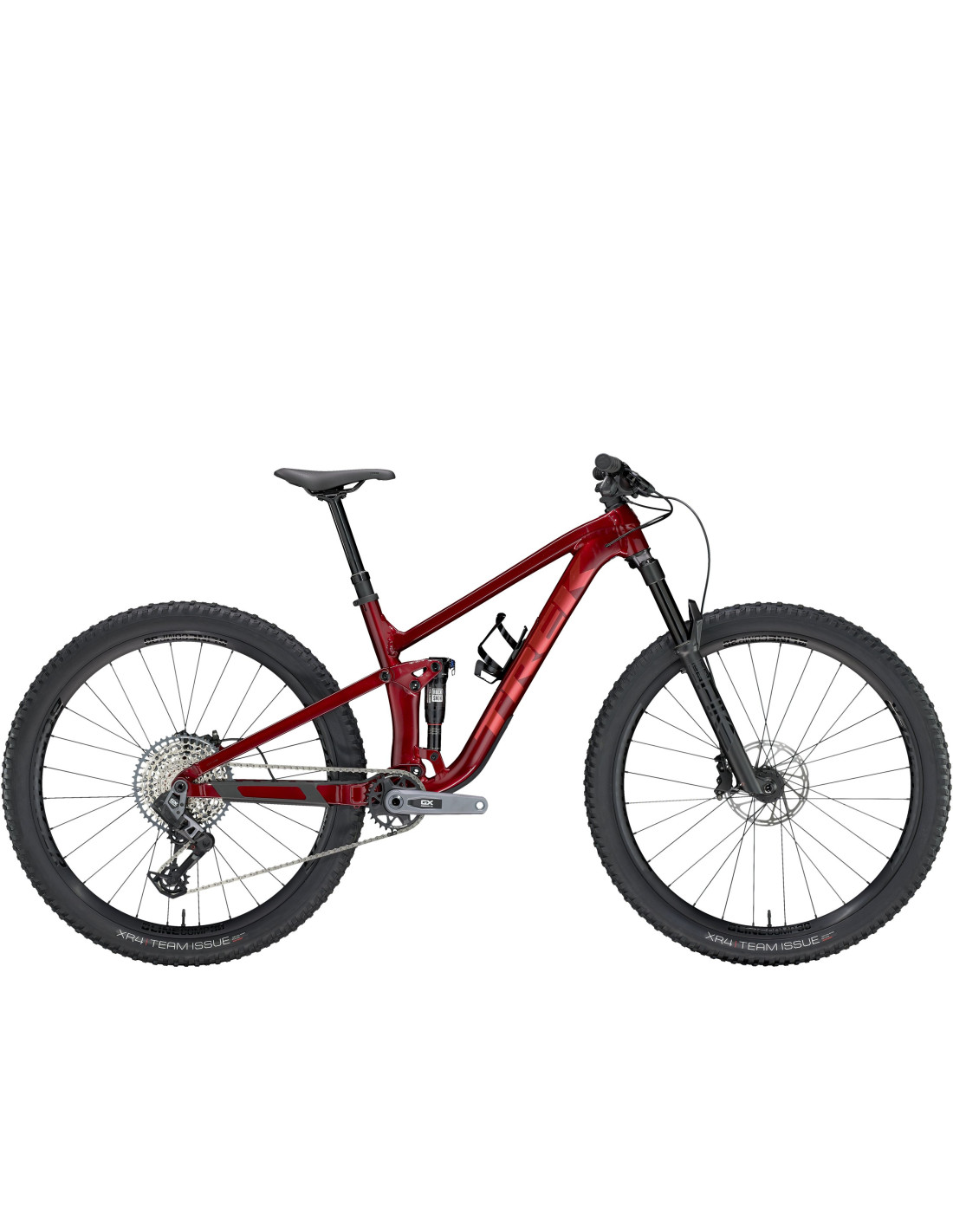

The Top Fuel 8 combines the speed of a cross country bike with the capability and forgiveness of a full suspension trail bike. It's fast, agile and offers plenty of fun on both fast trails and technical descents. Plus, you get the upgrade of wireless electronic shifting.
Compra a plazos desde 3 cuotas mensuales

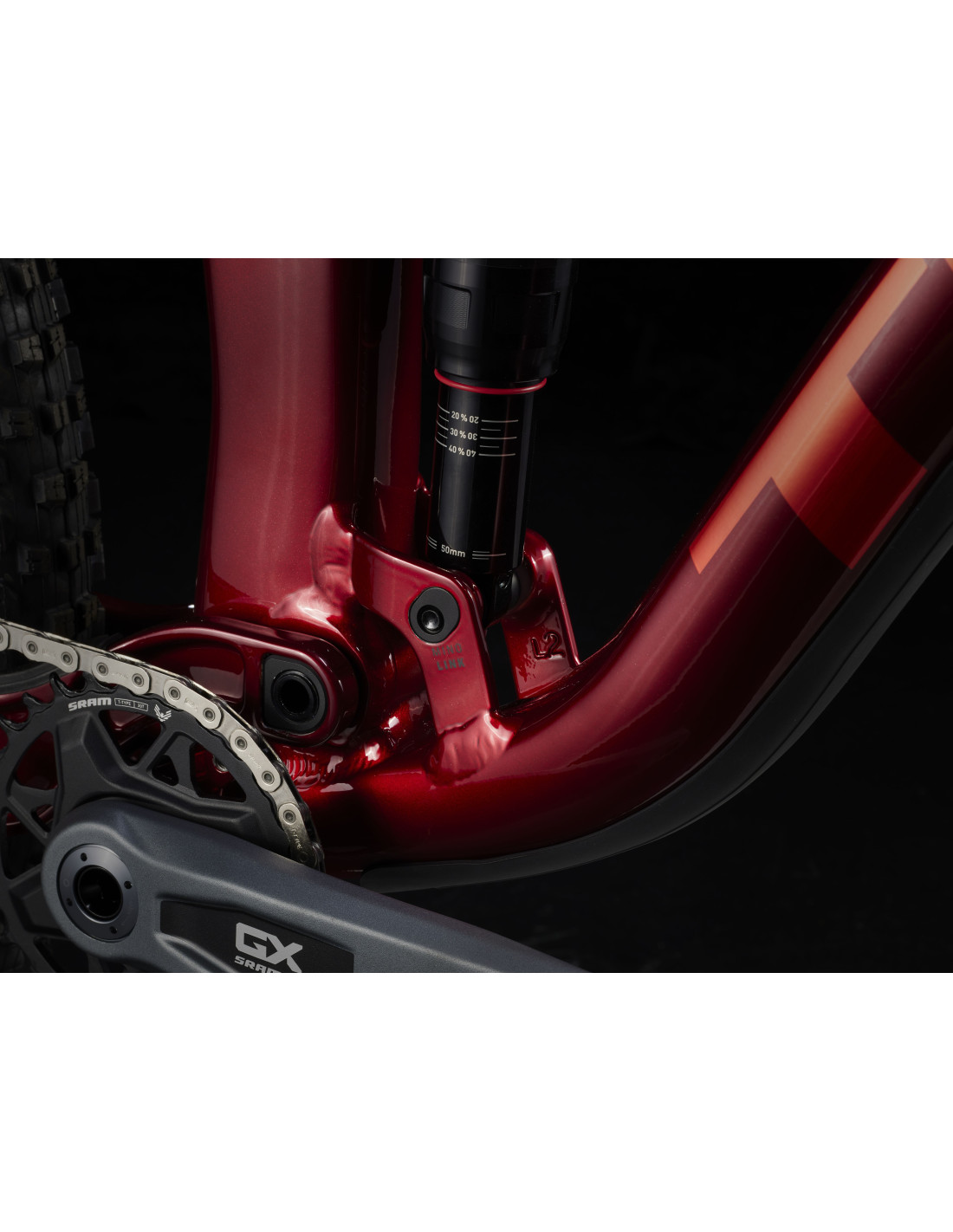

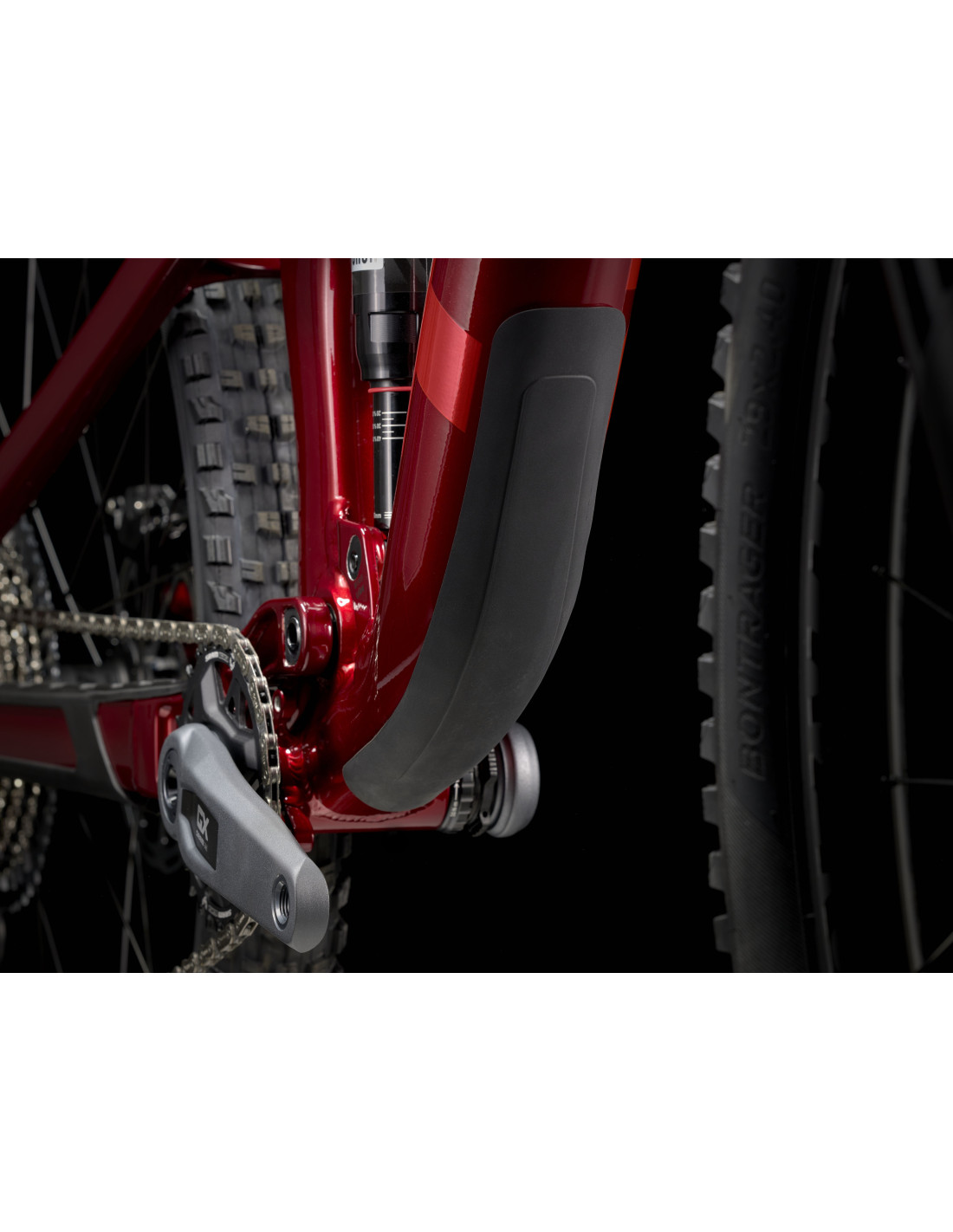

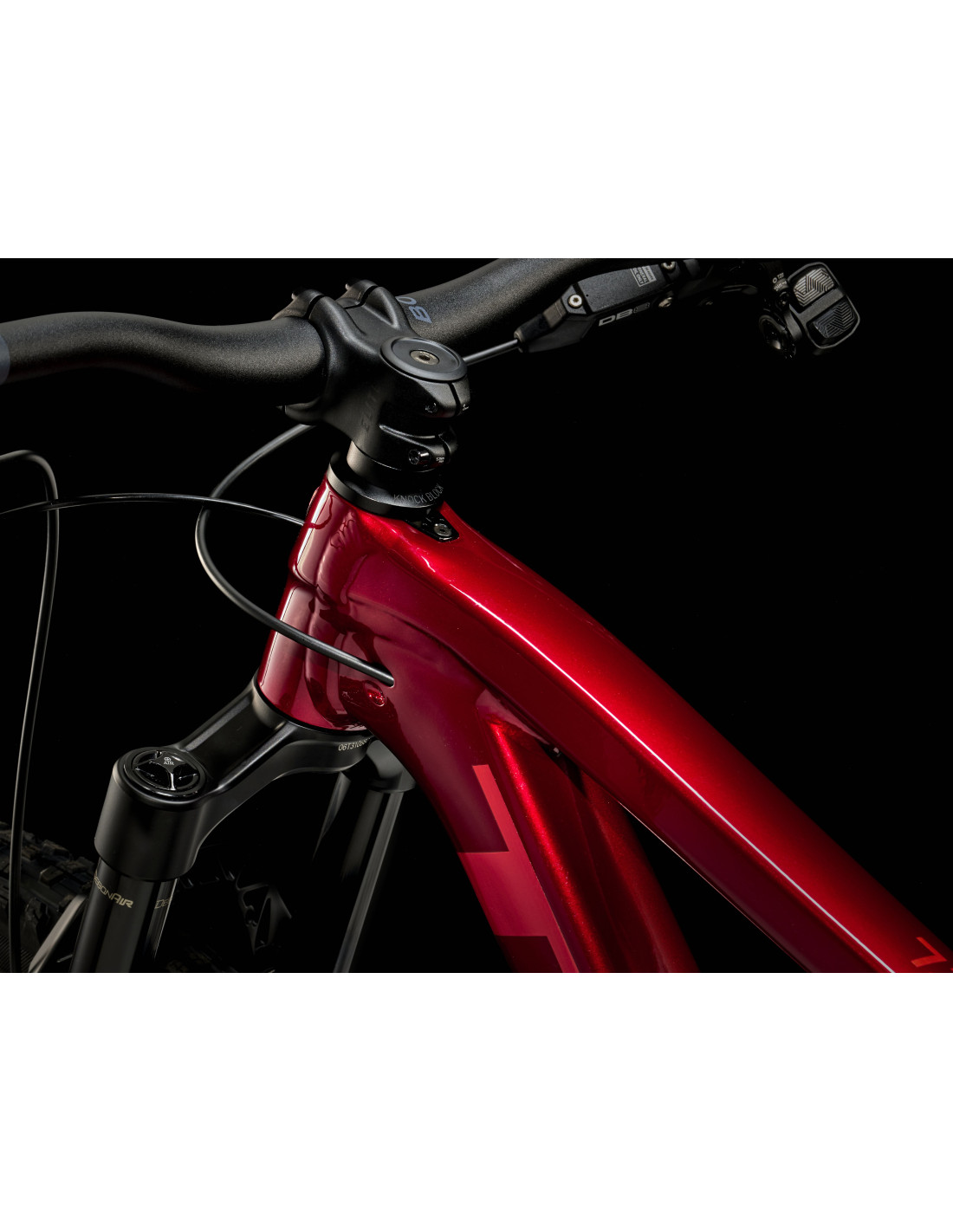

Frame:Alpha Platinum aluminum, internal storage, profiled head tube, Knock Block 2.0, internal cable routing, down tube protector, magnesium rocker linkage, Mino Link, ABP, Boost148, 120mm travel
Frame Material:ALUMINIUM
Rim Size:29
Fork:RockShox Pike, DebonAir spring, Rush RC shock, profiled fork tube, 44mm steerer, Boost110, 15mm Maxle Stealth, 130mm travel
Rear suspension:RockShox

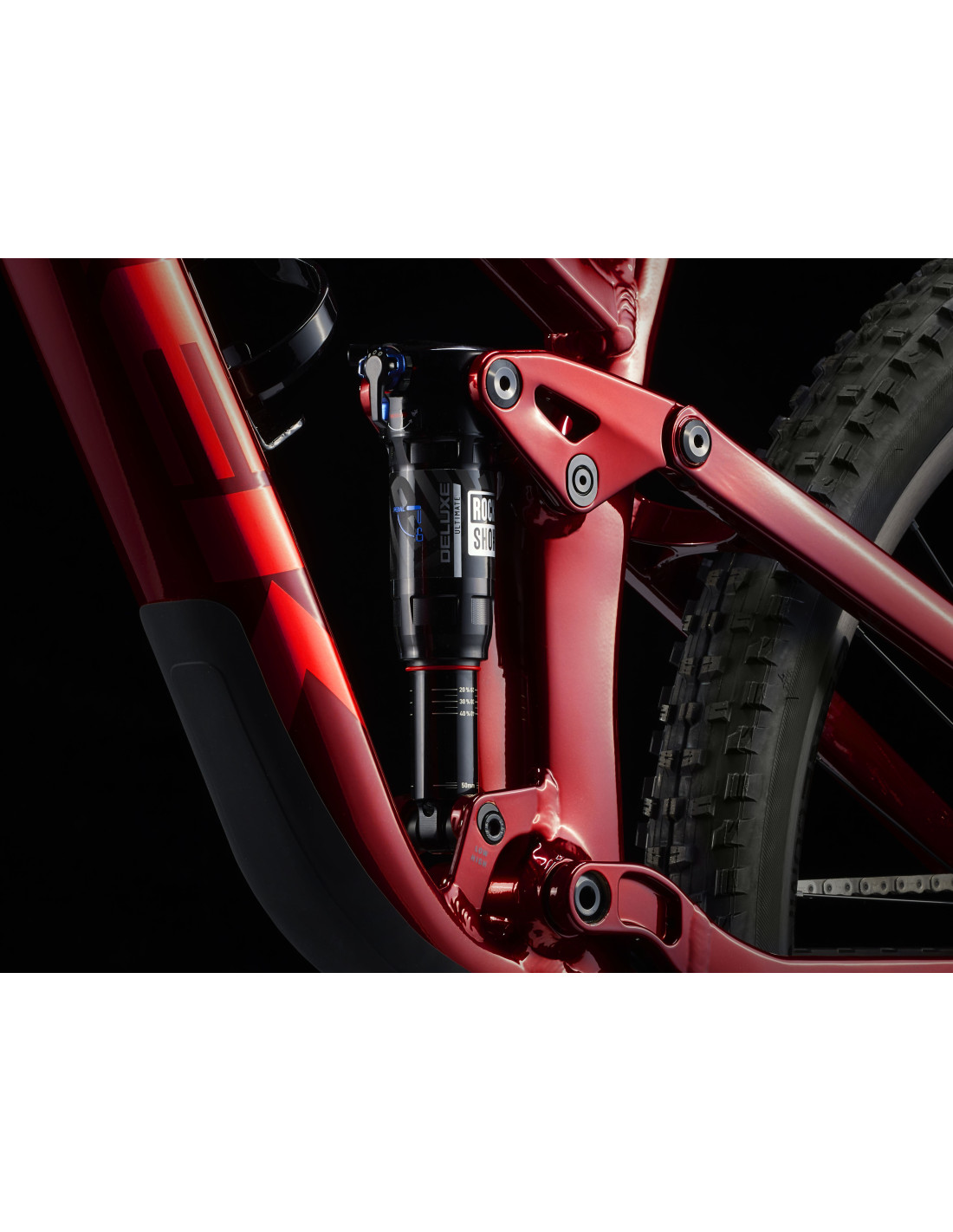

Rear suspension:RockShox Deluxe Ultimate RCT, 185x50 mm

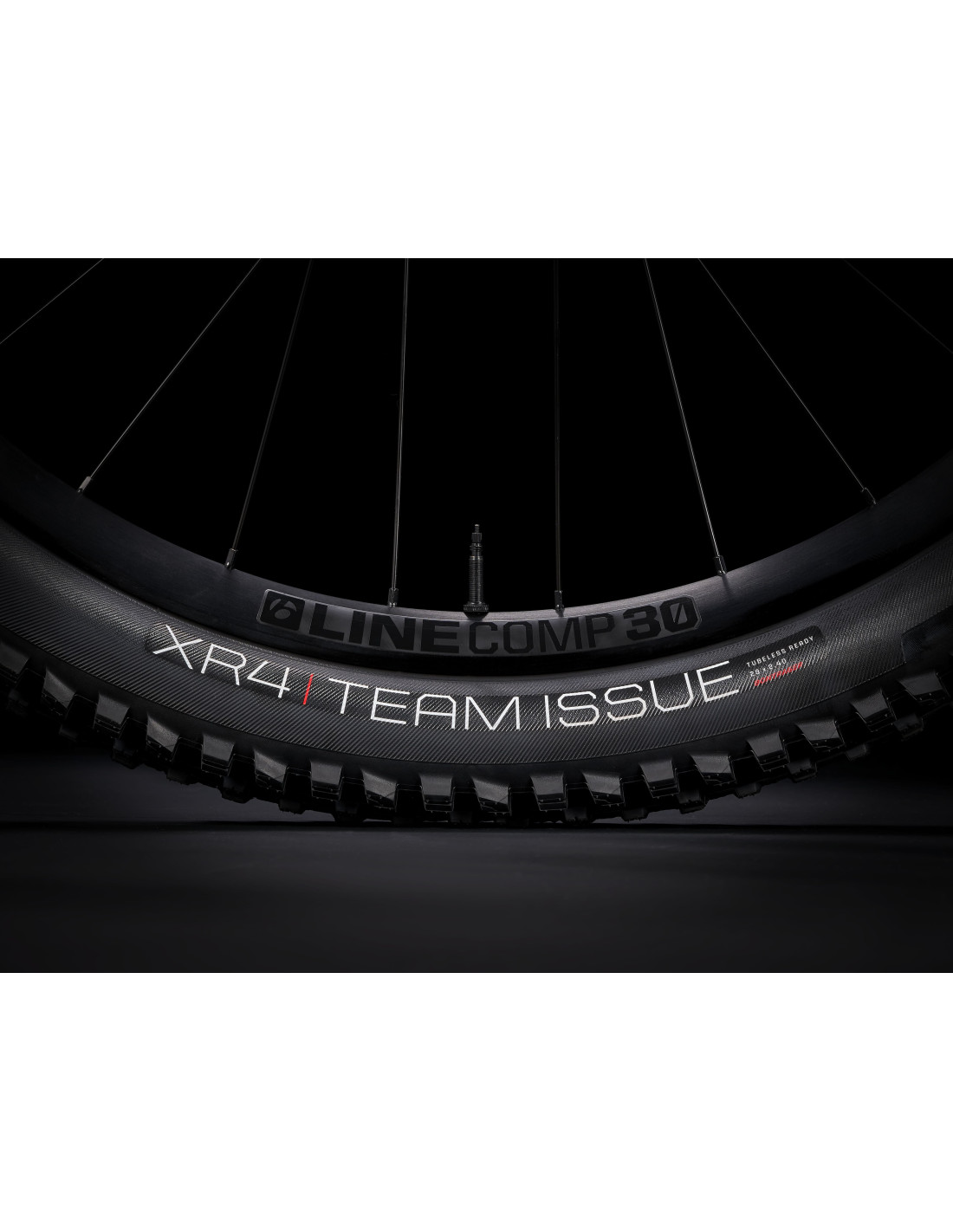

Wheels:Bontrager Line Comp 30
Shift lever:SRAM

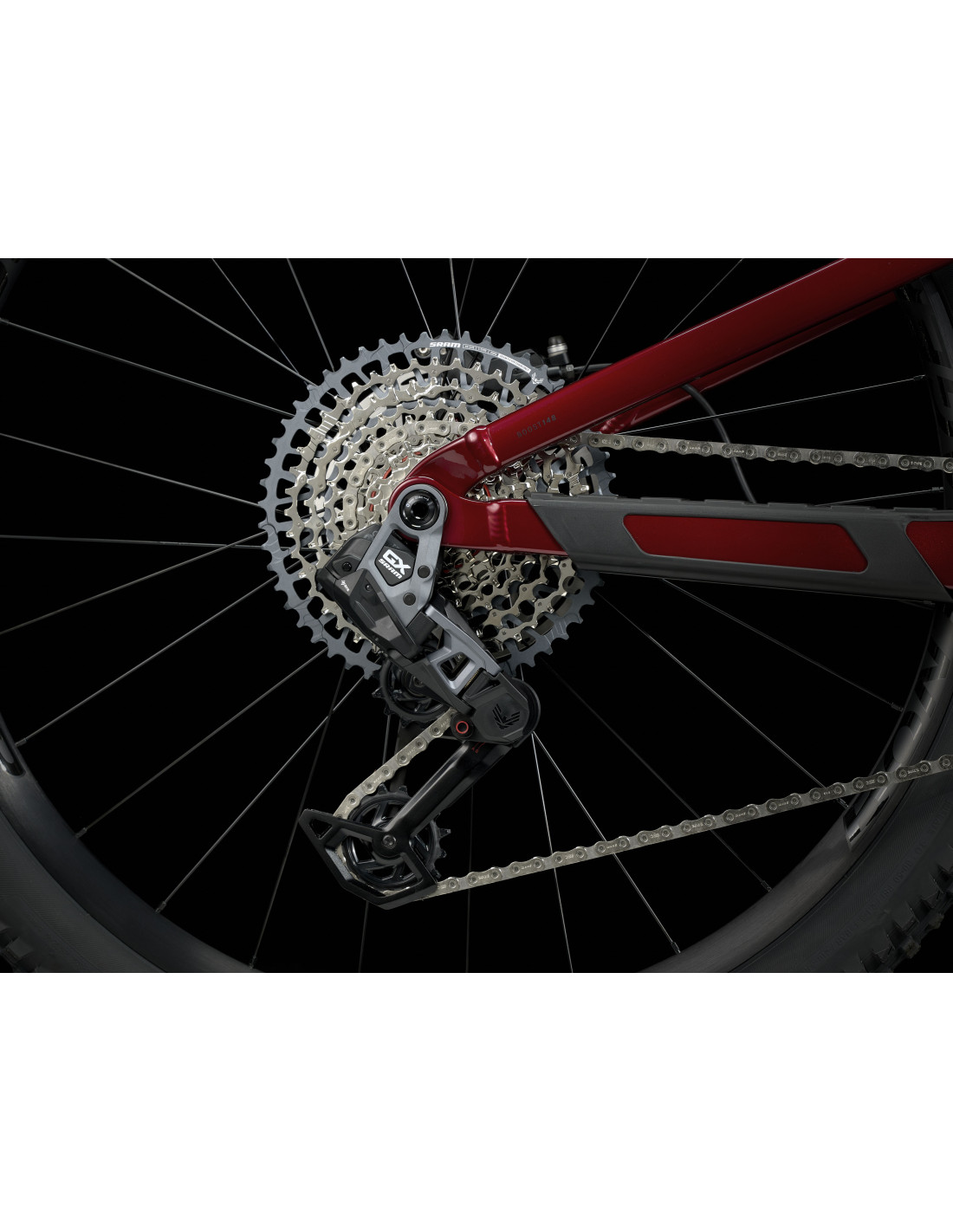

Rear derailleur:SRAM GX Eagle AXS, T-Type

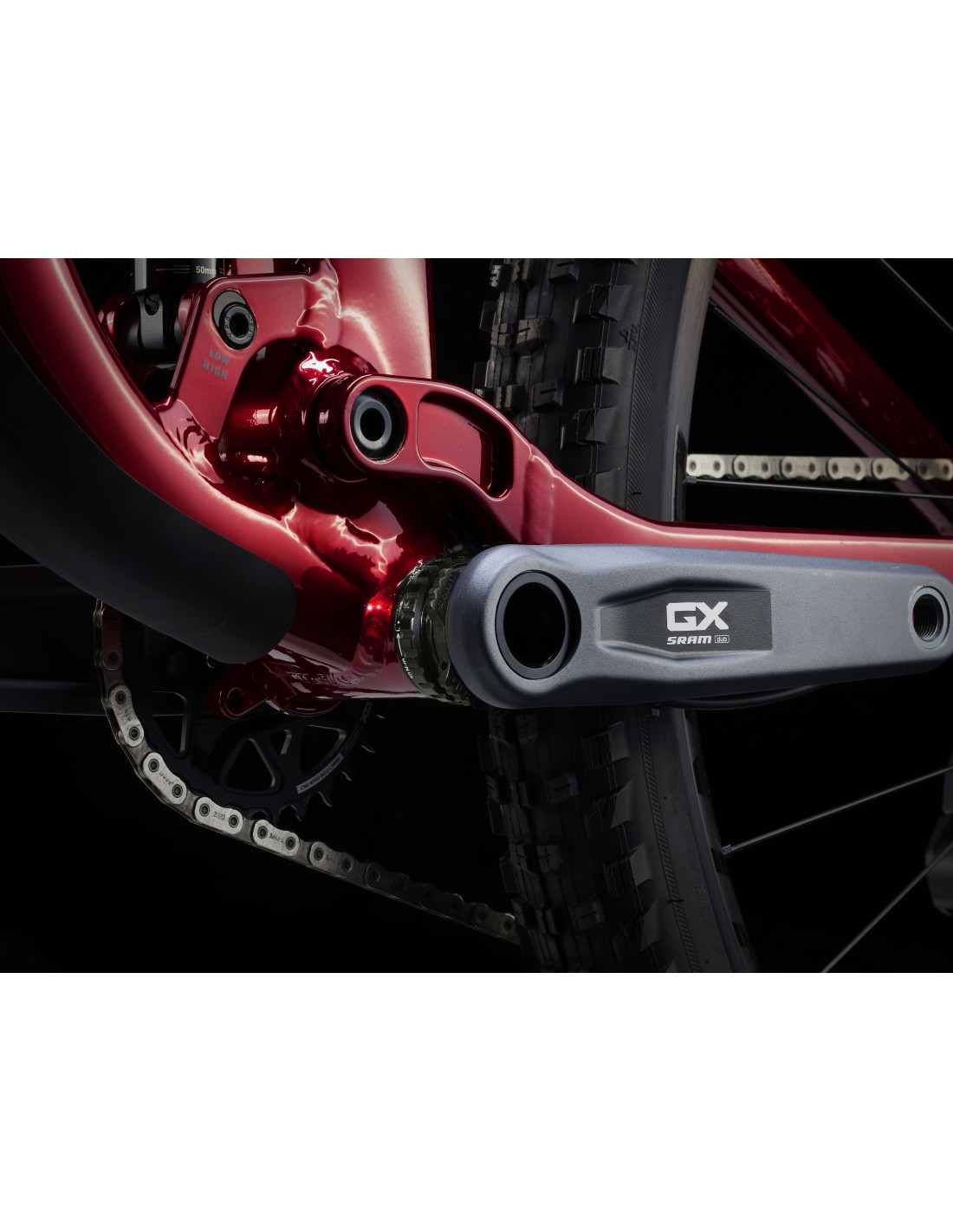

Crankset:SRAM GX Eagle, T-Type, DUB, 30D, 55mm chainline, 170mm length
Bottom Bracket:SRAM DUB MTB Wide, 73mm, threaded BSA
Cassette:SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
Chain:SRAM GX Eagle, T-Type, 12-speed // SRAM GX Eagle, T-Type, 12-speed

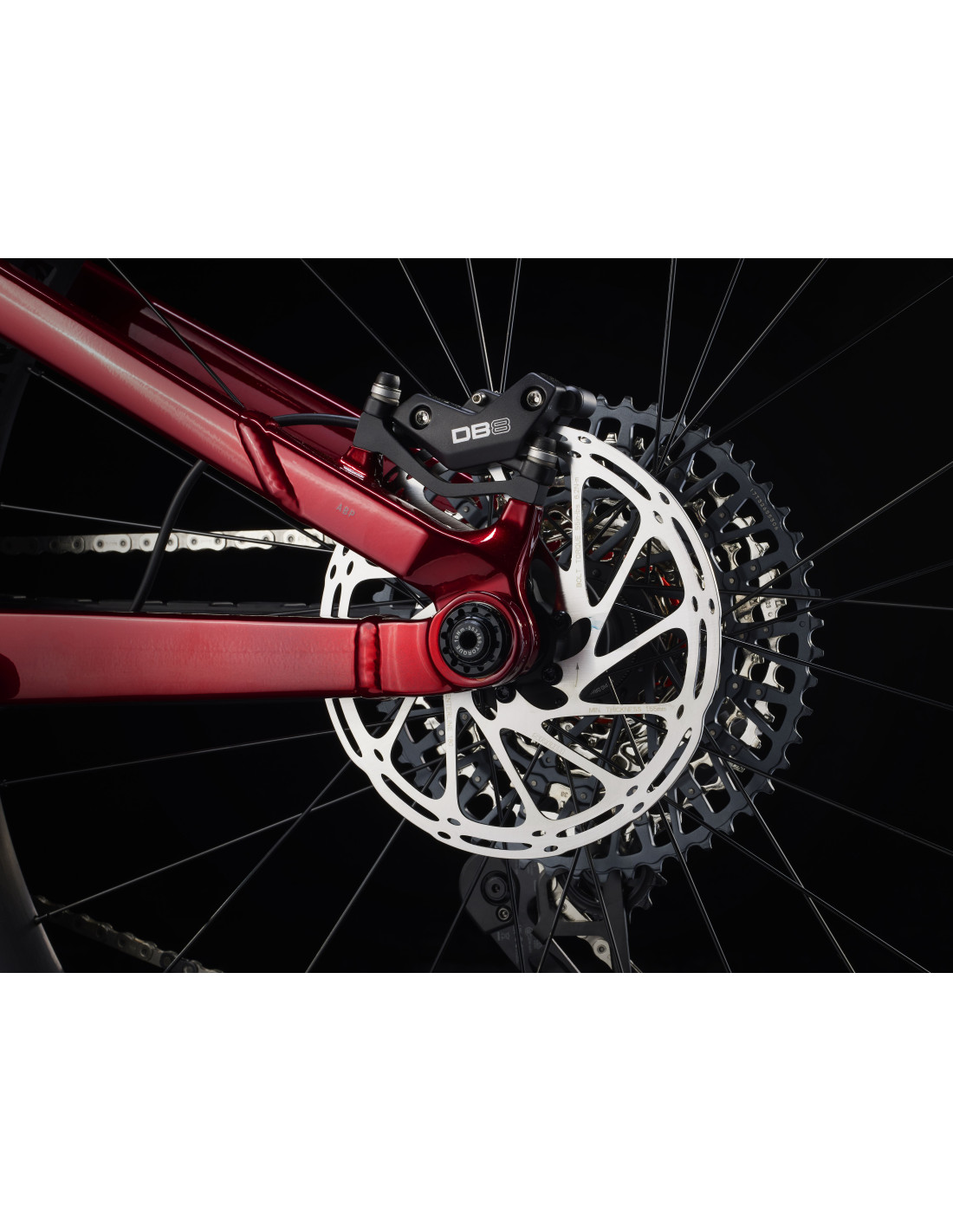

Brake:SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
Disc size:Overall dimensions
Saddle:Bontrager Arvada, hollow chromoly rails, 138 mm wide
Seatpost:TranzX JD-YSP39, 150 mm travel, internal guiding, 34.9 mm
Handlebars:Bontrager Line, aluminum, 35 mm, height 27.5 mm, width 780 mm
Stem:Bontrager Elite, 35 mm, 0 degrees, 45 mm length
Grips:Bontrager XR Trail Comp with nylon lockout
Battery:Battery pack SRAM AXS (with charger)
| Model year | 2024 |
|---|
| Frame material | Aluminium |
|---|---|
| Frame type | Unisex |
| Frame size | M |
| framesize | 42 |
| Fork | RockShox Pike, muelle DebonAir, amortiguador Rush RC, tubo de horquilla perfilado, avance de 44 mm, Boost110, Maxle Stealth de 15 mm, recorrido de 130 mm |
| Gears | SRAM GX Eagle AXS, T-Type |
|---|---|
| Shifters | SRAM AXS POD |
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12 velocidades |
| Chain | SRAM GX Eagle, T-Type, 12 velocidades // SRAM GX Eagle, T-Type, 12 velocid |
| Crankset | SRAM GX Eagle, T-Type, DUB, 30D, línea de cadena de 55 mm, longitud de 170 mm SRAM DUB MTB Wide, 73 mm, BSA roscado |
| Wheels | Bontrager Line Comp 30, Tubeless Ready, 6 tornillos, Boost110, eje pasante de 15 mm, 29" Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6 tornillos, Boost148, eje pasante de 12 mm, 29" |
|---|---|
| Front wheel size | 29 |
| Rear wheel size | 29 |
| Front brake | SRAM DB 8 4-piston hydraulic disc // Disco hidráulico SRAM DB 8 de 4 pistones SRAM CenterLine, 6 tornillos, borde redondeado, 180 mm Dimensiones máximas |
|---|---|
| Front brake brand | Sram |
| Rear brake | SRAM DB 8 4-piston hydraulic disc // Disco hidráulico SRAM DB 8 de 4 pistones SRAM CenterLine, 6 tornillos, borde redondeado, 180 mm Dimensiones máximas |
| Rear brake brand | Sram |
| Handlebar | Bontrager Line, aluminio, 35 mm, altura 27,5 mm, anchura 780 mm |
|---|---|
| stem_model | Bontrager Elite, 35 mm, 0 grados, longitud de 45 mm |
| bartape_or_grips_model | Bontrager XR Trail Comp con bloqueo de nylon |
| Saddle | Bontrager Arvada, raíles de cromoly hueco, anchura 138 mm |
| Seatpost | TranzX JD-YSP39, recorrido de 150 mm, guiado interno, 34,9 mm |
| Reach | 44.9 |
|---|---|
| Stack | 59.6 |
| Head angle | 65.9 |
| Seat tube angle | 69.9 |
| Top tube length | 59.9 |
| Seat tube length | 42 |
| Head tube length | 10 |
| Chainstay length | 43.4 |
| Wheelbase | 118.3 |
| Standover height | 74.4 |
| Bottom bracket drop | 2.7 |
| bottom_bracket_height | 34.6 |
| Trail | 12 |
| Offset | 4.3 |
