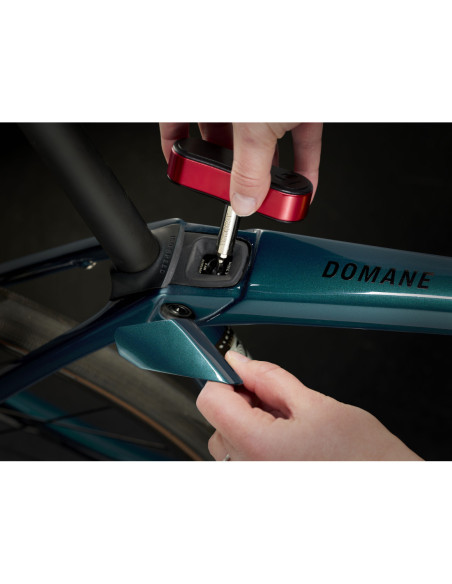

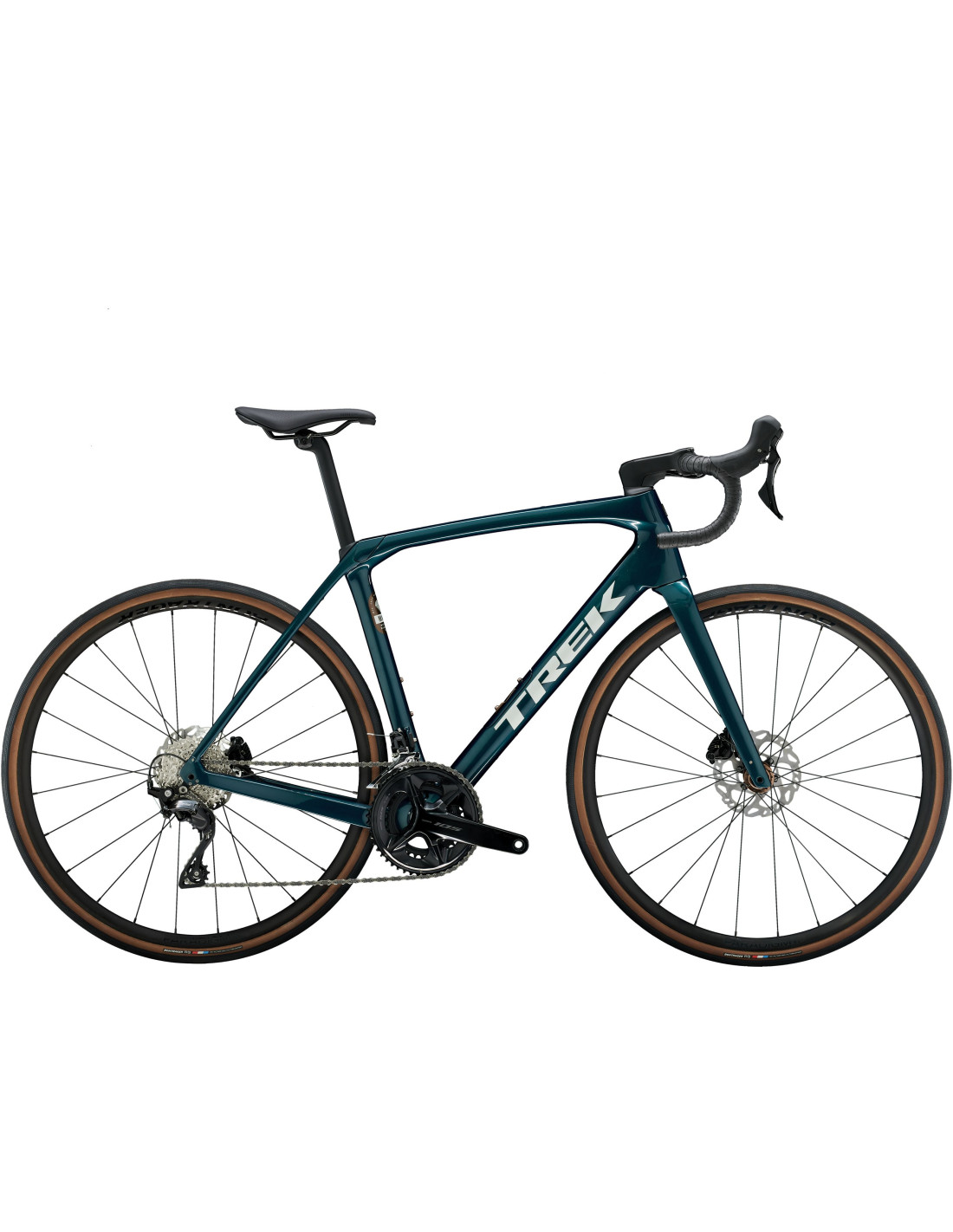

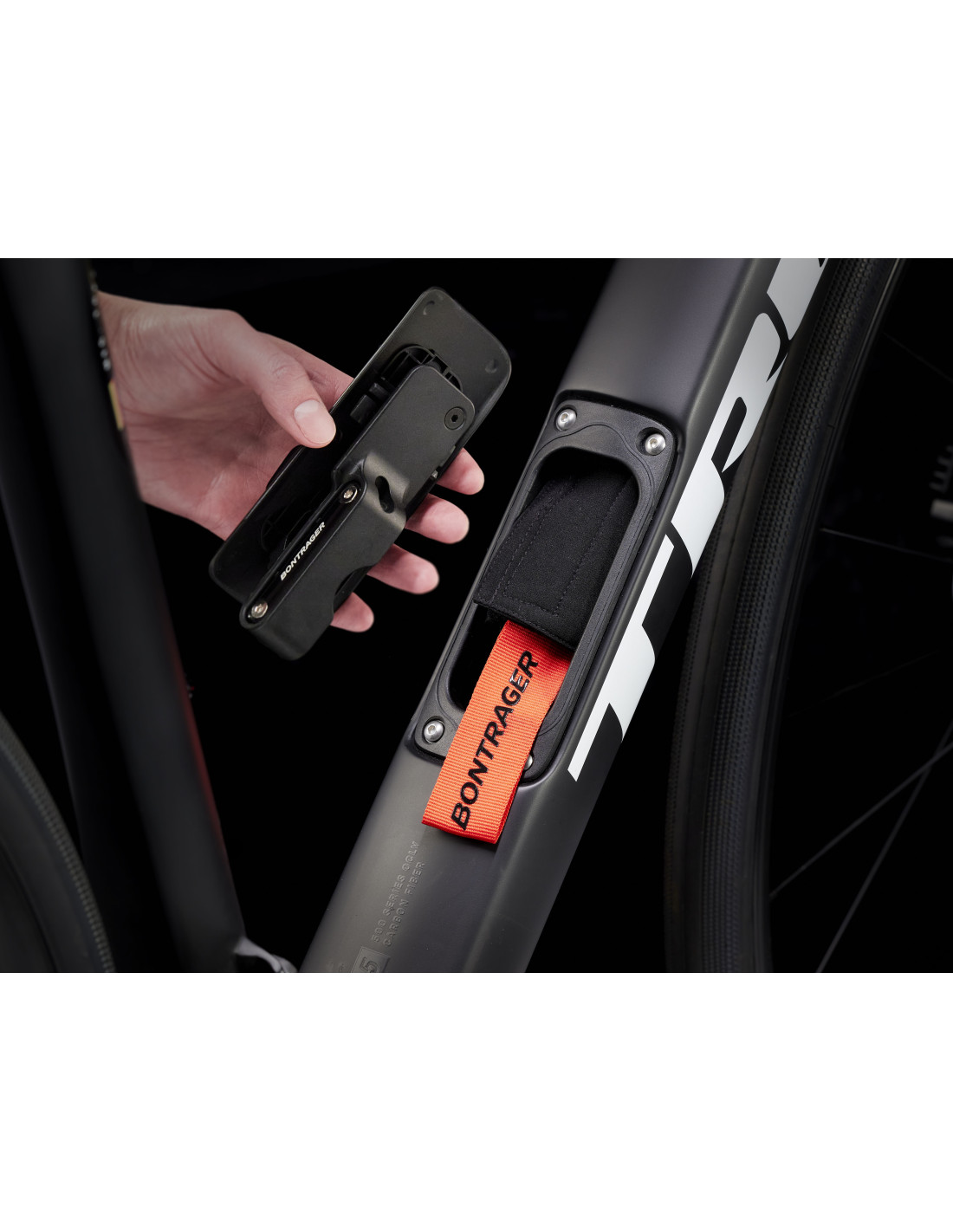

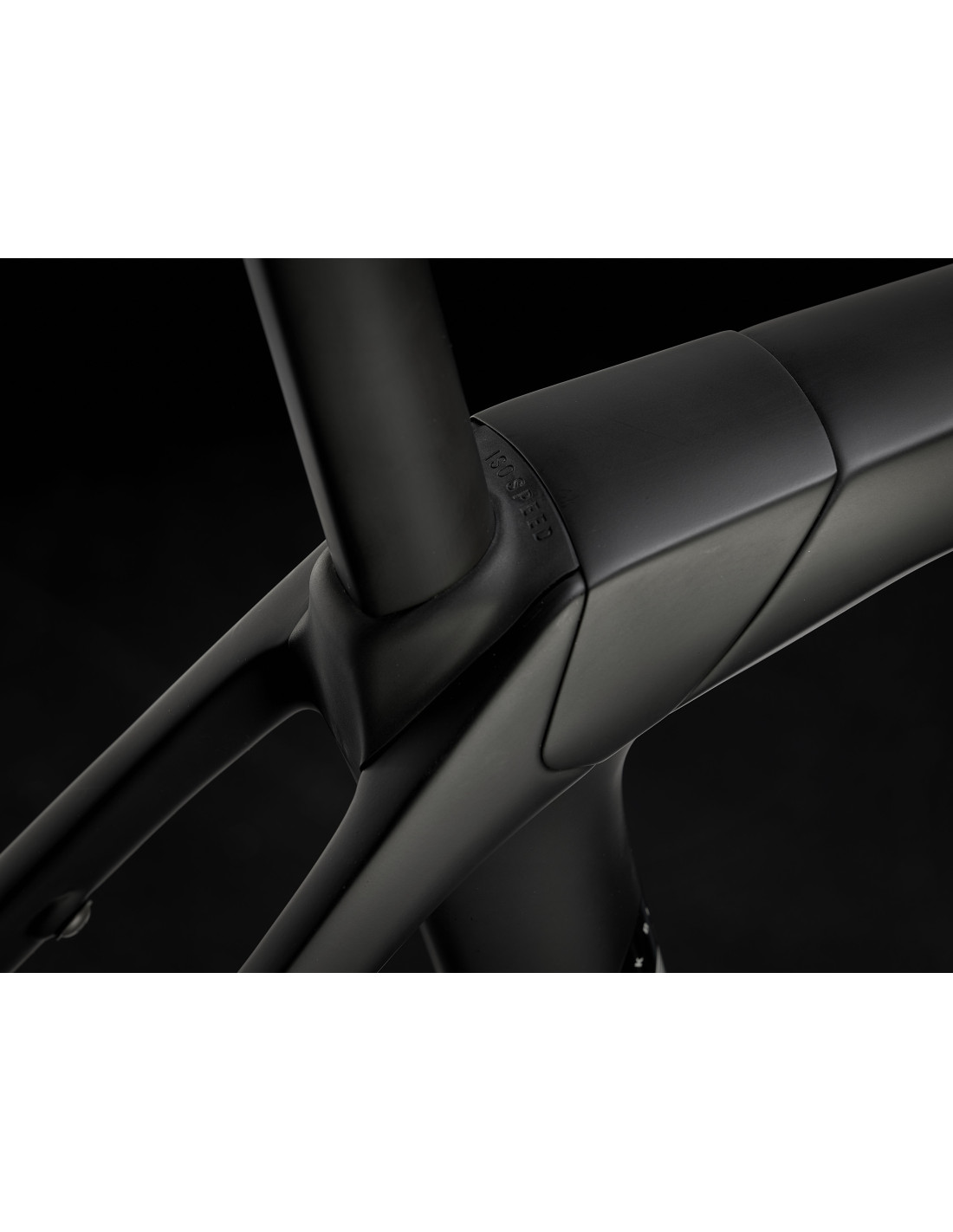

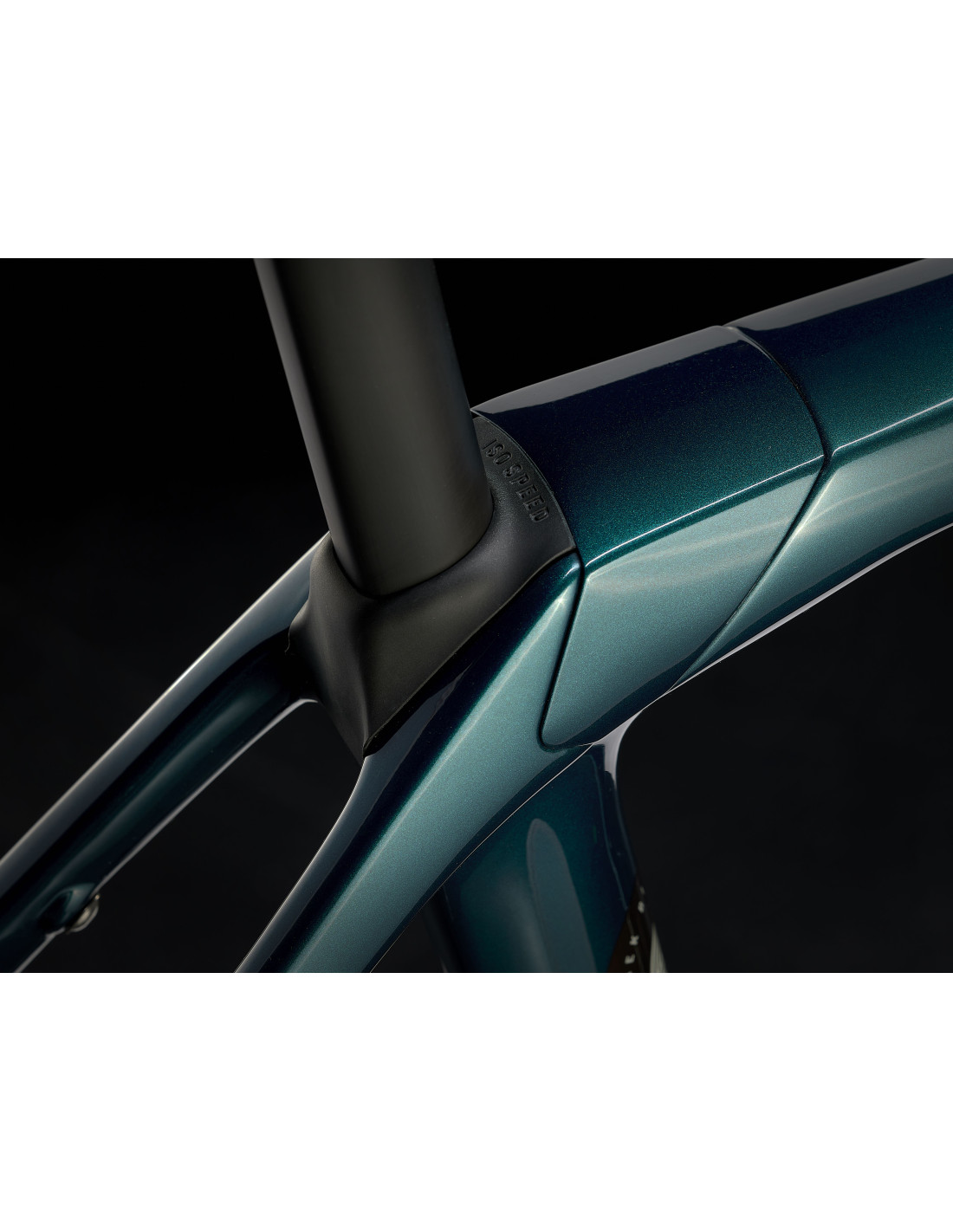

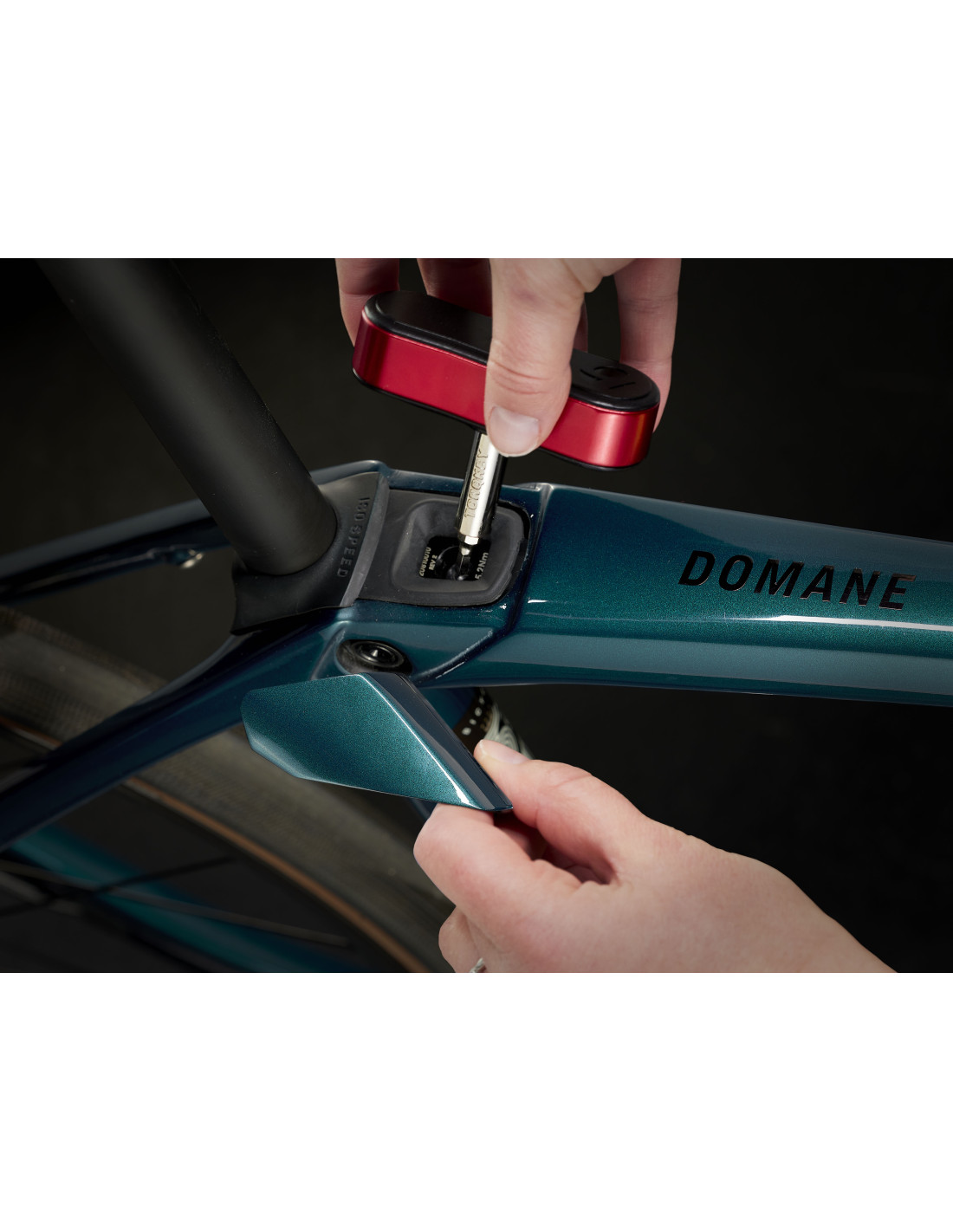

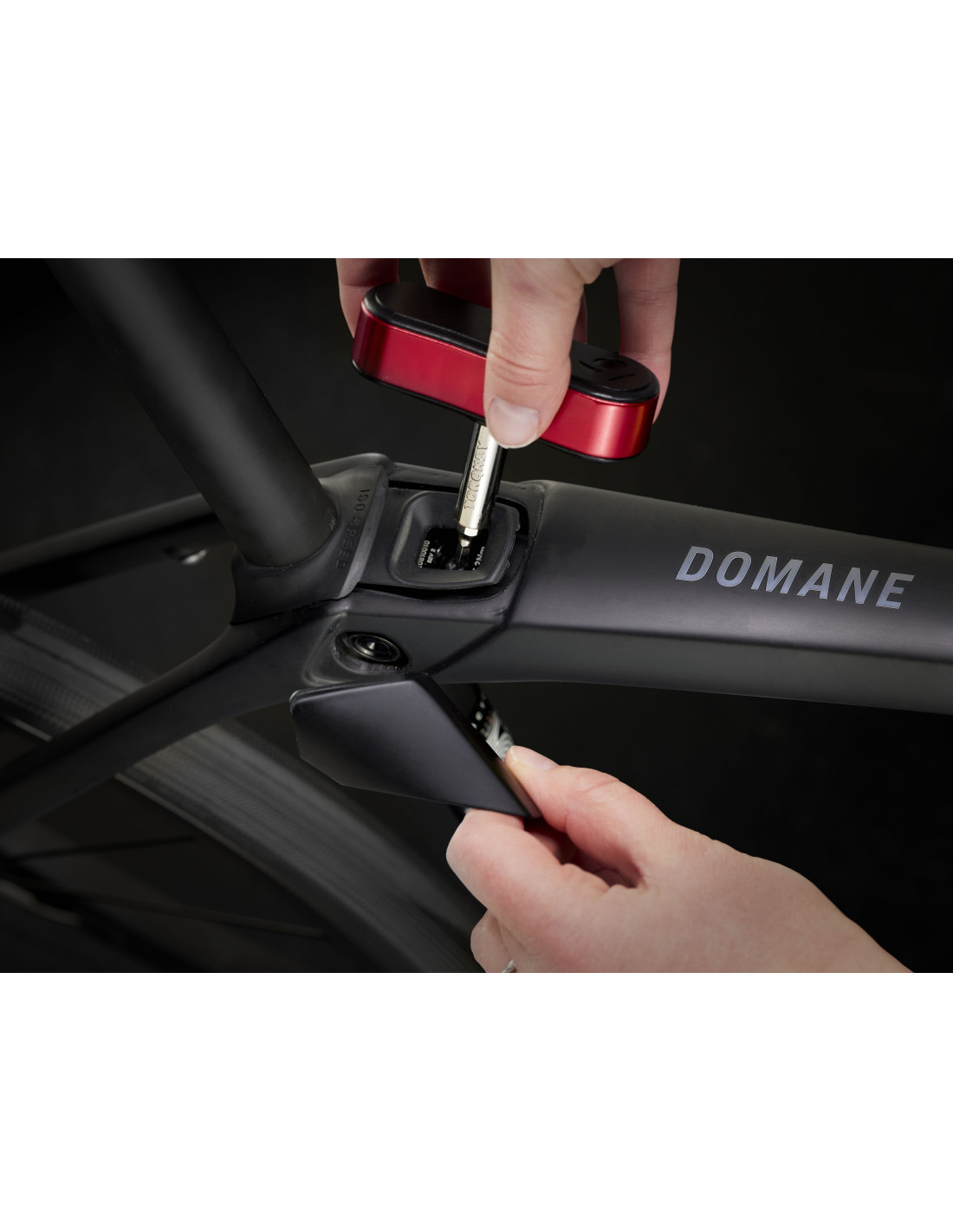

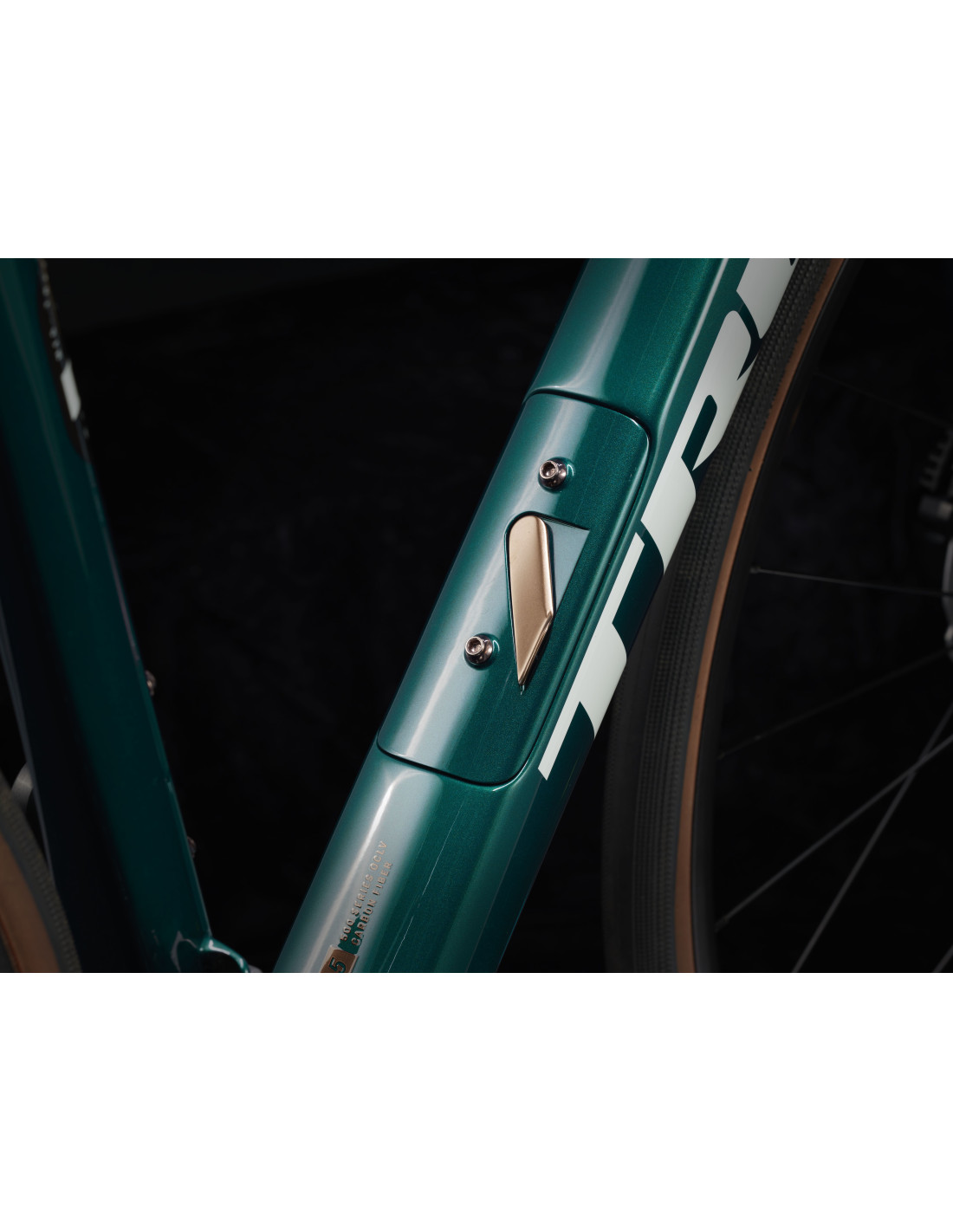

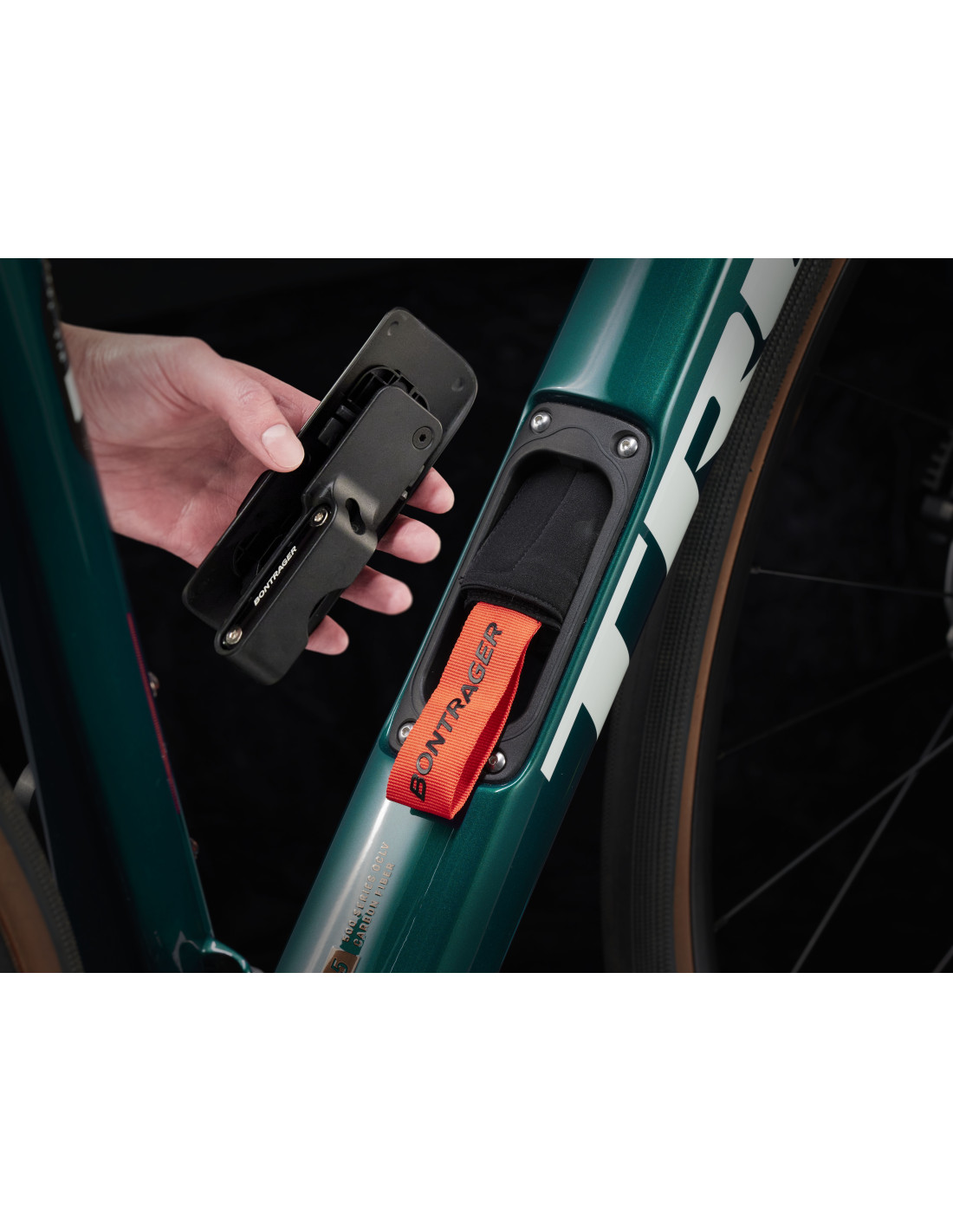

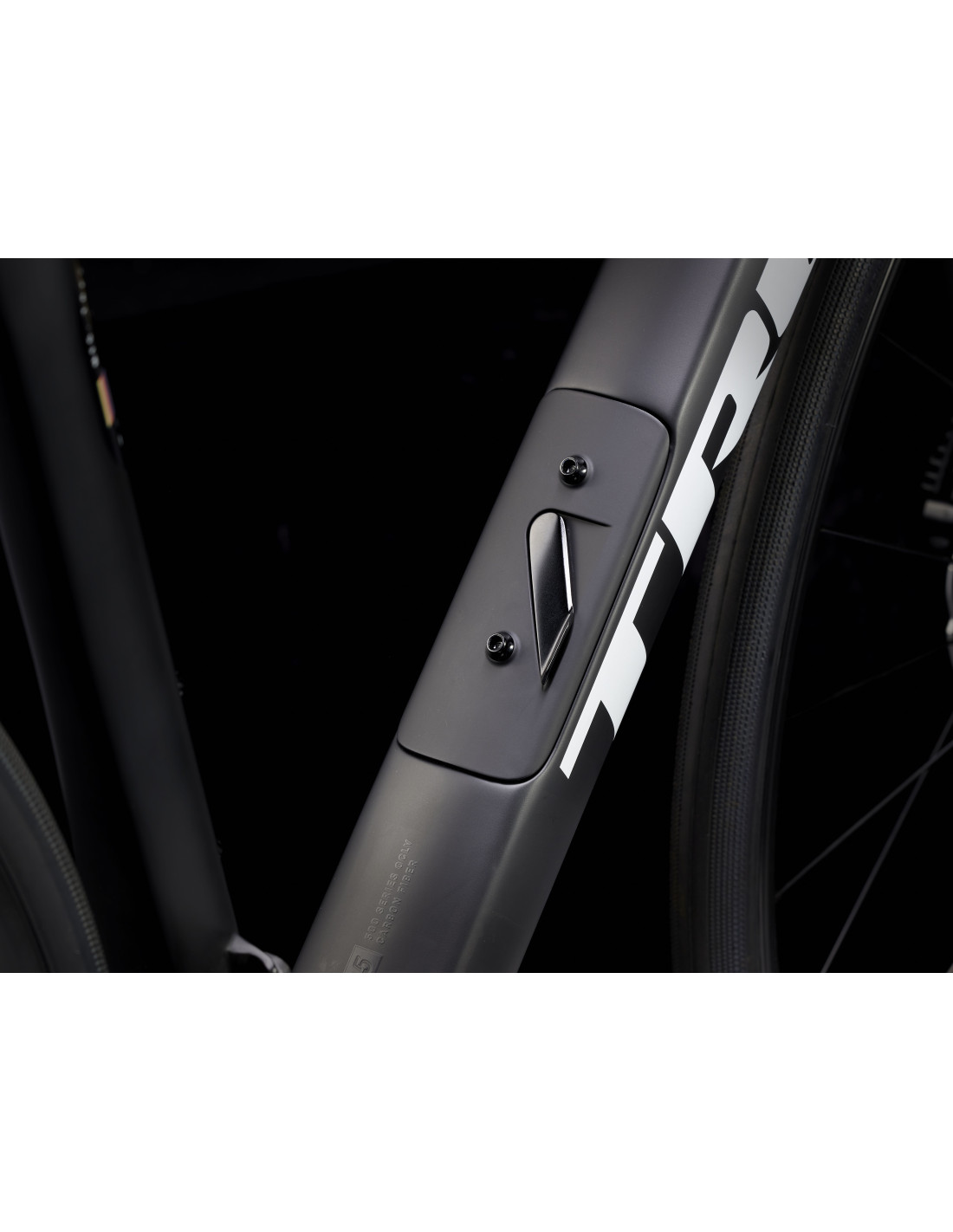

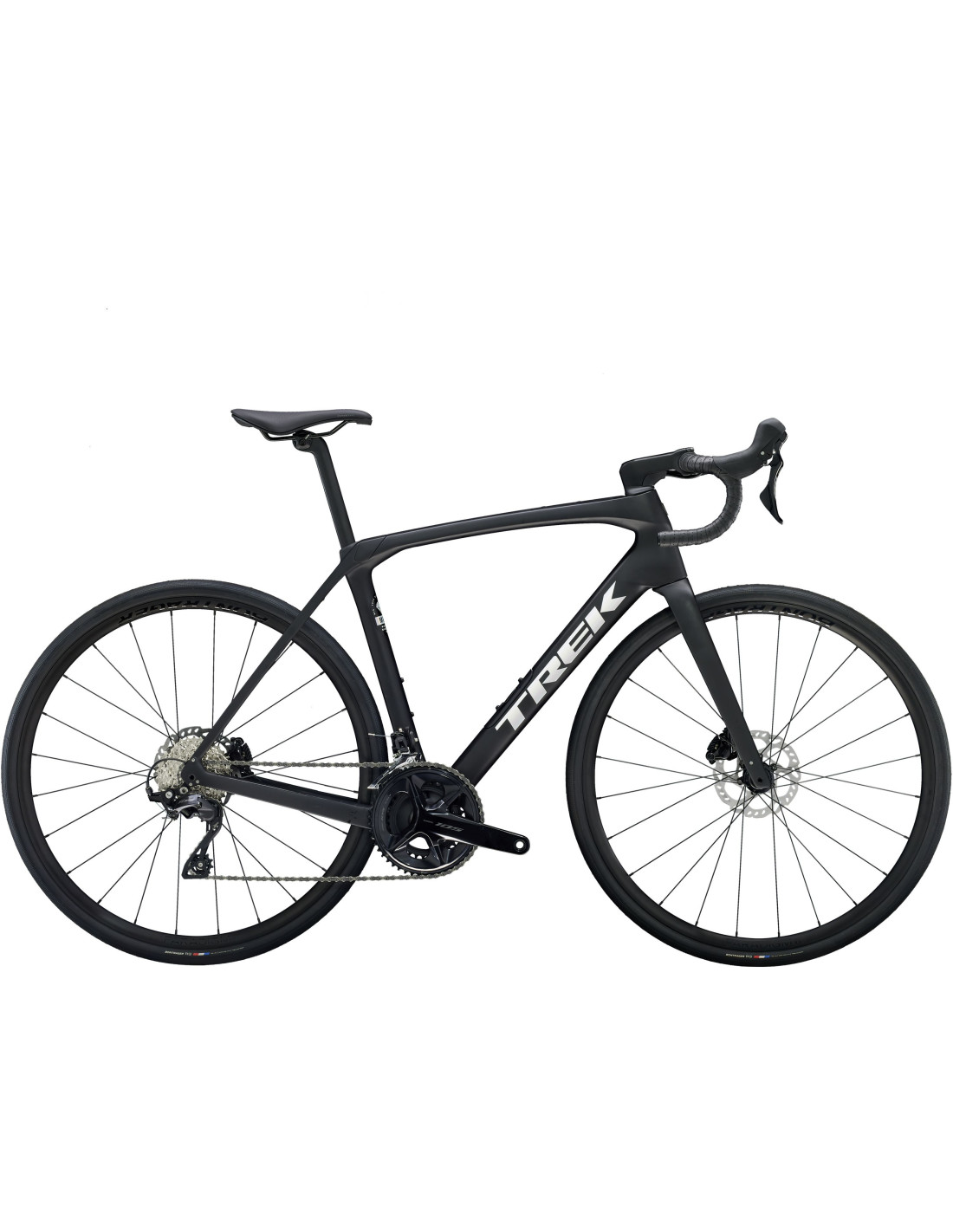

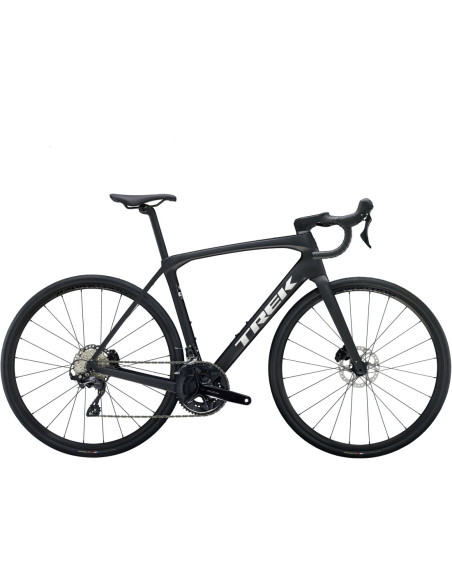

The Domane SL 5 is ready to ride rough roads and long routes in comfort. The lightweight 500-series OCLV carbon frame features a rear IsoSpeed that softens road shock and minimizes fatigue, plus an integrated cockpit for great looks and feel. It incorporates a reliable Shimano 105 transmission and an easily accessible internal storage compartment for carrying the essentials. Plus, thanks to a wheel arch that allows for 38c wheels, you'll be able to ride on virtually any terrain
Compra a plazos desde 3 cuotas mensuales
Frame:OCLV 500 Series carbon, IsoSpeed, internal storage, tapered steerer tube, internal cable routing, 3S chain guide, fender mounts, flat mount disc brakes, 142x12 mm thru axle
Frame material:CARBON
Rim size:28
Fork:Domane SL carbon, carbon profile fork tube, internal brake cable routing, fender mounts, flat mount disc, 12x100 mm thru axle
Wheels:Bontrager Paradigm SL
Tires:Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid rim, 120 tpi, 700x32 mm
Front hub:Bontrager aluminum, sealed bearing, centerlock disc, 100x12 mm thru axle
Rear hub:Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed hub, 142x12 mm thru axle
Rims:Bontrager Paradigm SL, Tubeless Ready, 24 holes, 21 mm wide, Presta valve
Shift lever:Shimano
Front derailleur:Shimano 105 R7100, soldare type, lower anchor
Rear derailleur:Shimano 105 R7100, max. sprocket. 36T

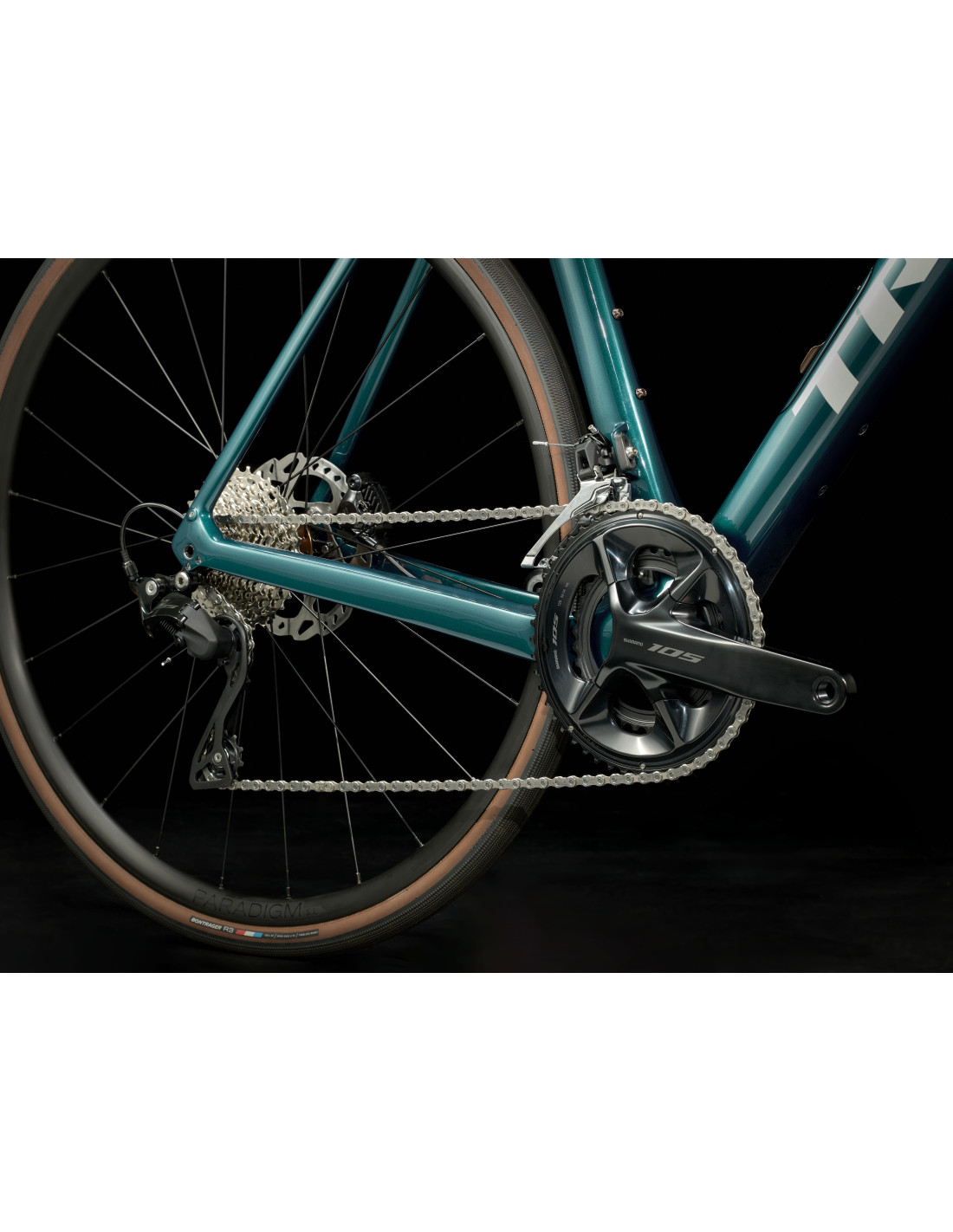

Crankset:Shimano 105 R7100, 50/34, 170 mm length
Bottom bracket:Praxis, T47 threaded, internal bearing
Cassette:Shimano 105 7101, 11-34, 12-speed
Chain:Shimano SLX M7100, 12-speed

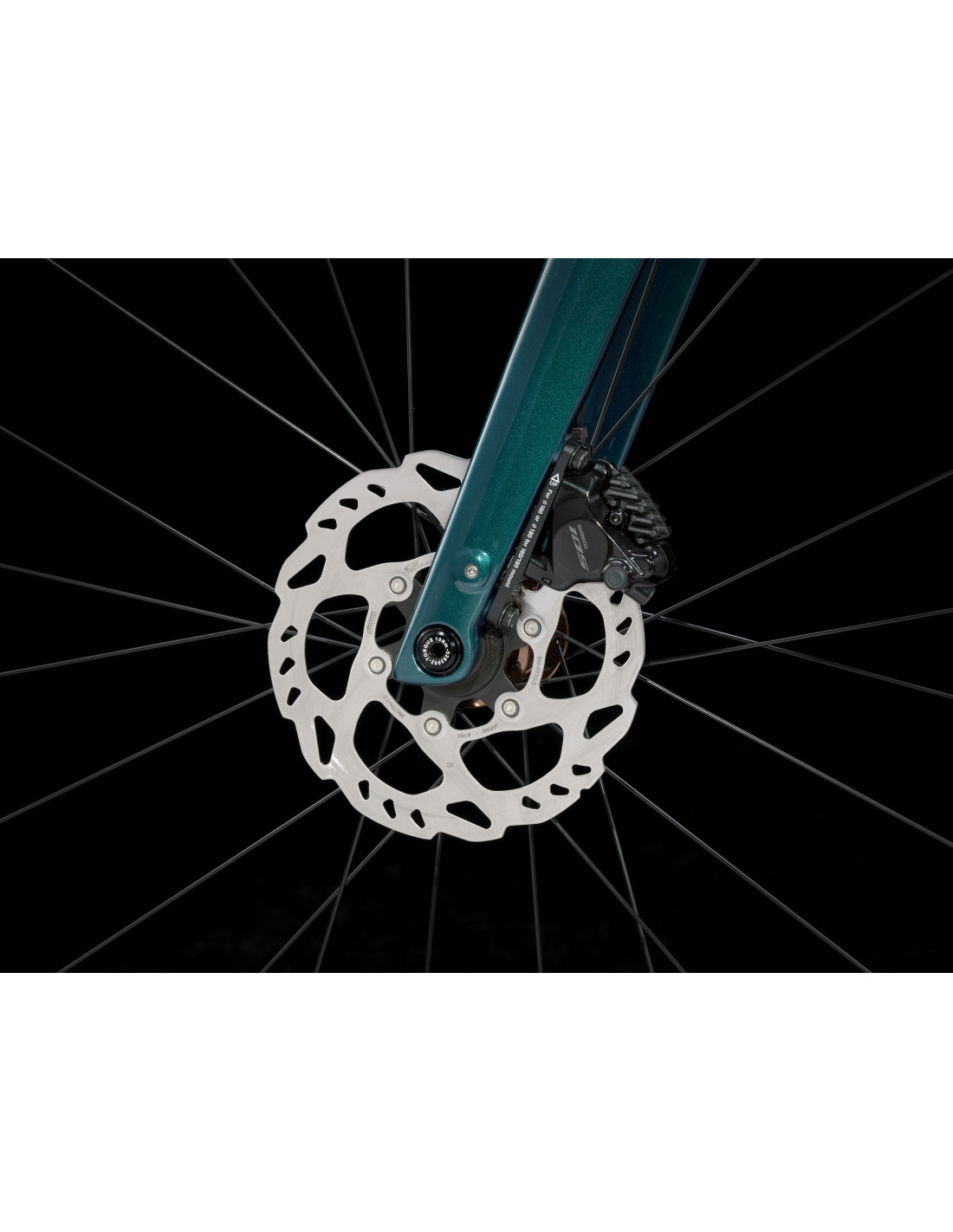

Brake:Hydraulic disc Shimano 105, flat mount
Disc size:Max. di size
Saddle:Verse Short Comp, steel rails, 155 mm width
Seatpost:Carbon KVF aero seatpost, 20 mm setback, 280 mm length

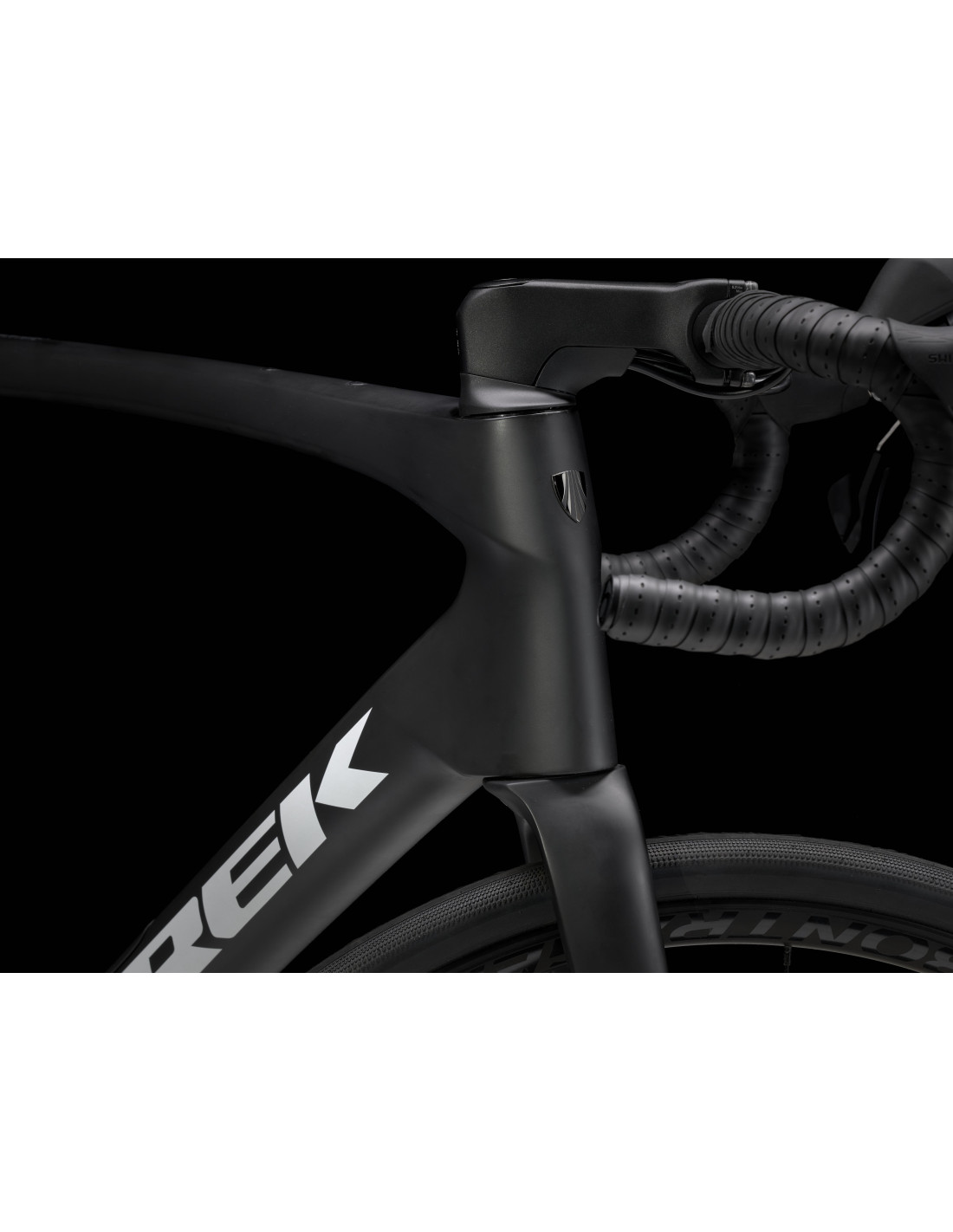

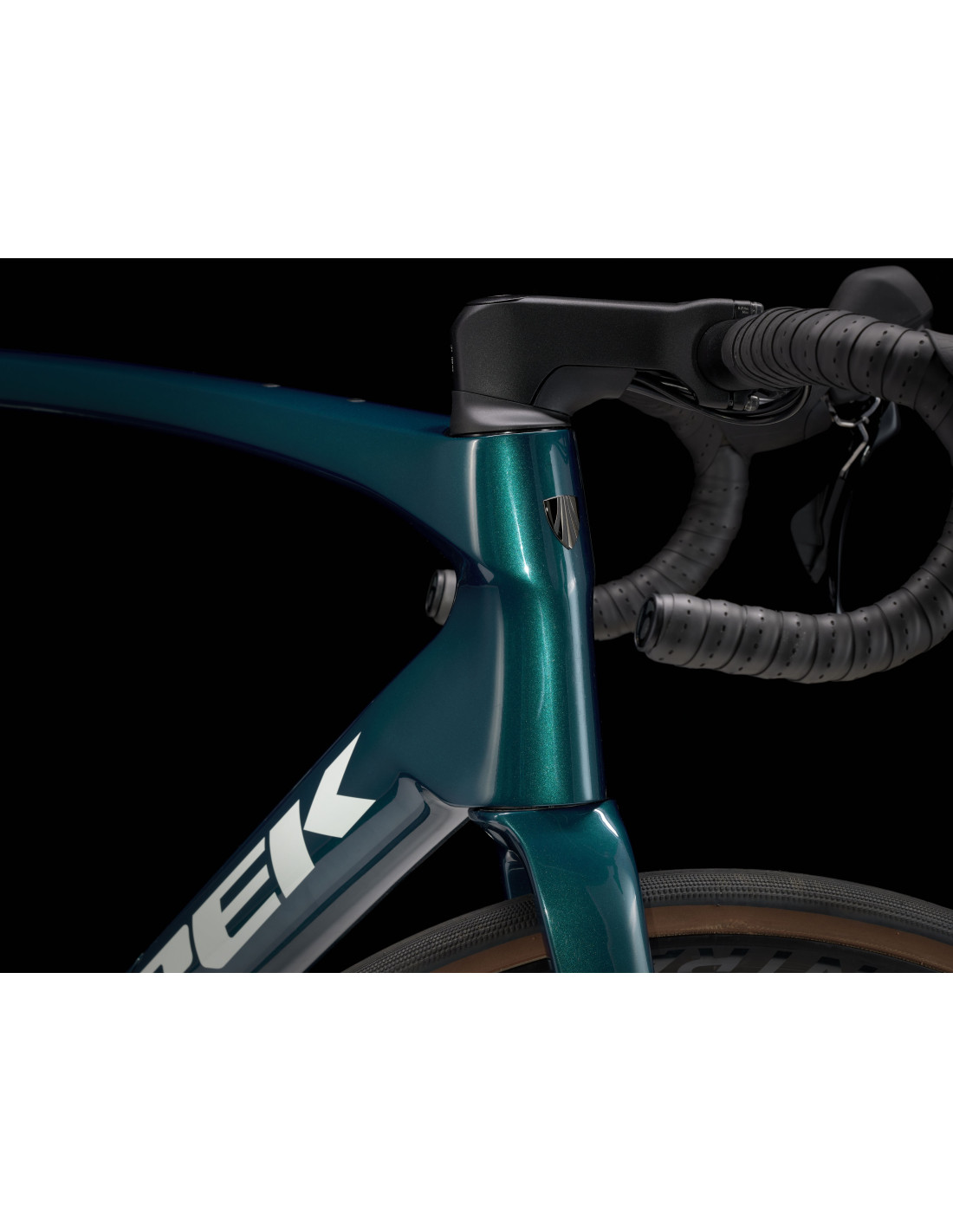

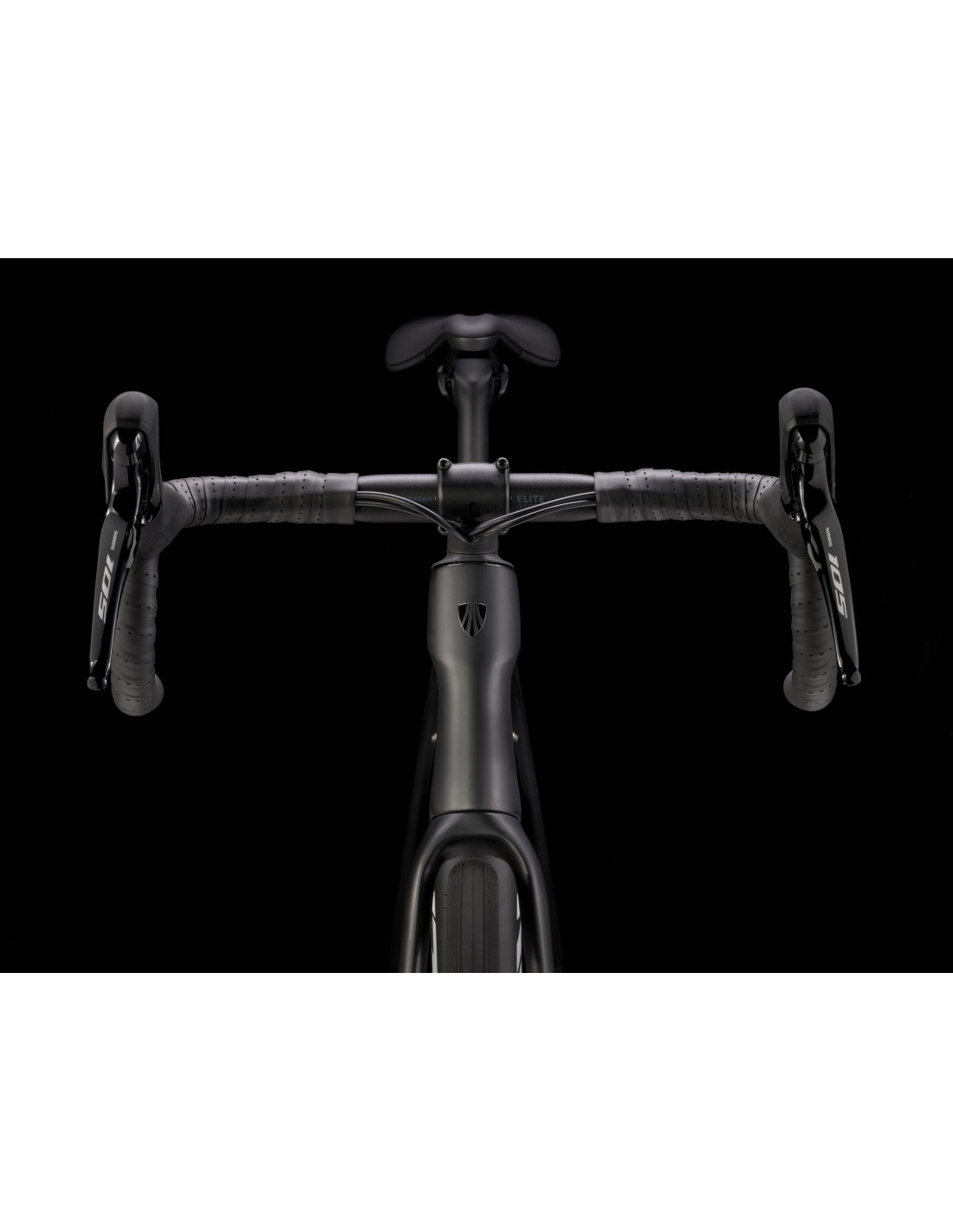

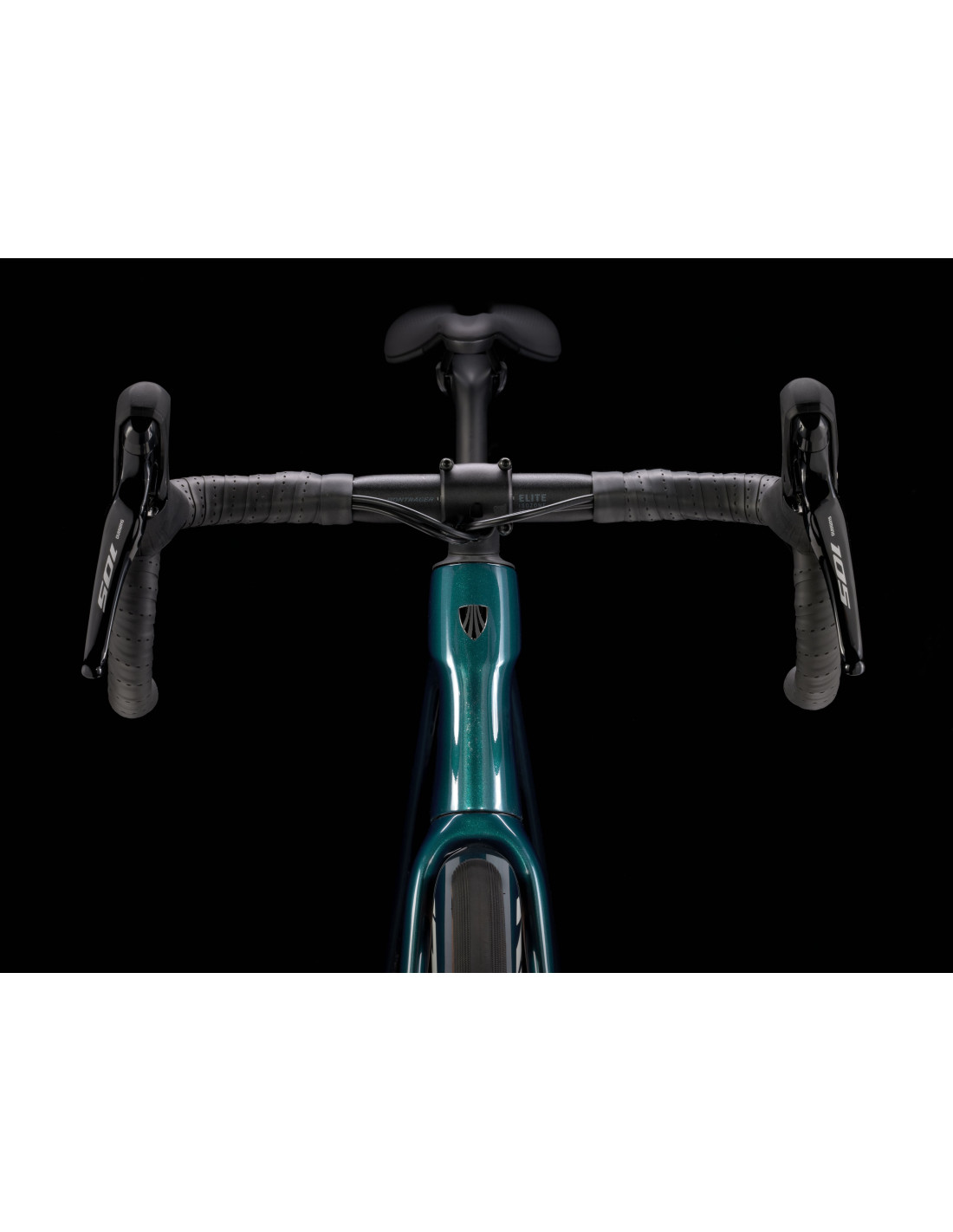

Handlebars:Bontrager Elite IsoZone VR-SF, aluminum, 31.8 mm, Di2 internal guiding, 75 mm reach, 128 mm drop, 38 cm width
Stem:Trek RCS Pro, -7 degrees, 80 mm length
| Model year | 2024 |
|---|
| Frame material | Carbon |
|---|---|
| Frame type | Unisex |
| Frame size | 47 |
| framesize | 47 |
| Fork | Domane SL de carbono, tubo de horquilla pefilado de carbono, guiado interno de los cables de freno, soportes para guardabarros, disco flat mount, eje pasante de 12x100 mm |
| Gears | Shimano 105 R7100, piñón máx. 36T |
|---|---|
| Shifters | Shimano 105 R7120, 12 velocidades // Shimano 105 R7120, 12 velocidades |
| Front derailleur | Shimano 105 R7100, tipo soldare, anclaje inferior |
| Rear derailleur | Shimano 105 R7100, piñón máx. 36T |
| Cassette | Shimano 105 7101, 11-34, 12 velocidades |
| Chain | Shimano SLX M7100, 12 velocidades |
| Crankset | Shimano 105 R7100, 50/34, longitud de 165 mm Praxis, T47 roscado, rodamiento interno |
| Wheels | Bontrager Paradigm SL, Tubeless Ready, anchura de llanta 21 mm, eje pasante de 100x12 mm Bontrager Paradigm SL, Tubeless Ready, anchura de llanta 21 mm, eje pasante de 142x12 mm Bontrager Paradigm SL, Tubeless Ready, 24 orificios, anchura de 21 mm, válvul |
|---|---|
| Tyres | Bontrager R3 Hard-Case Lite, Tubeless Ready, aro de aramida, 120 tpi, 700x32 mm |
| Front wheel size | 28 |
| Rear wheel size | 28 |
| Front brake | Disco hidráulico Shimano 105, flat mount Shimano RT70, centerlock, 160 mm Tamaño máximo del di |
|---|---|
| Front brake brand | Shimano |
| Rear brake | Disco hidráulico Shimano 105, flat mount Shimano RT70, centerlock, 160 mm Tamaño máximo del di |
| Rear brake brand | Shimano |
| Handlebar | Bontrager Elite IsoZone VR-SF, aluminio, 31,8 mm, guiado interno Di2, alcance 75 mm, caída 128 mm, anchura 36 cm |
|---|---|
| stem_model | Trek RCS Pro, -7 grados, longitud de 70 mm |
| Saddle | Verse Short Comp, raíles de acero, anchura de 155 mm |
| Seatpost | Tija de sillín KVF aero de carbono, retroceso de 20 mm, longitud 280 mm |
| Reach | 36.4 |
|---|---|
| Stack | 52.7 |
| Head angle | 71 |
| Seat tube angle | 74.6 |
| Top tube length | 50.9 |
| Seat tube length | 42 |
| Head tube length | 11 |
| Chainstay length | 42 |
| Wheelbase | 98.6 |
| Standover height | 68.6 |
| Bottom bracket drop | 8 |
| Trail | 6.1 |
| Offset | 5.3 |
