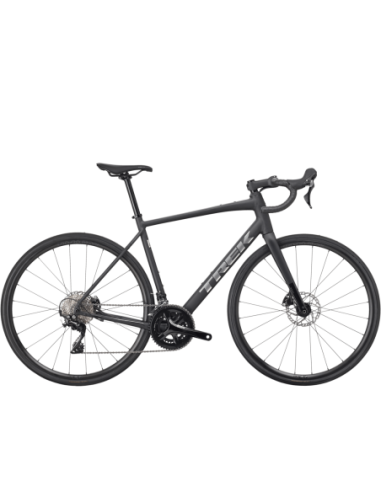

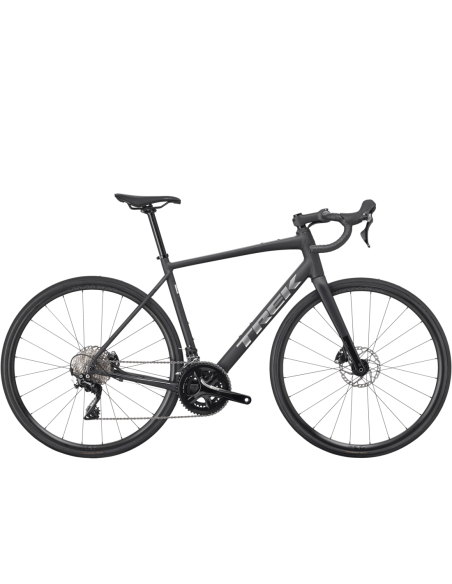

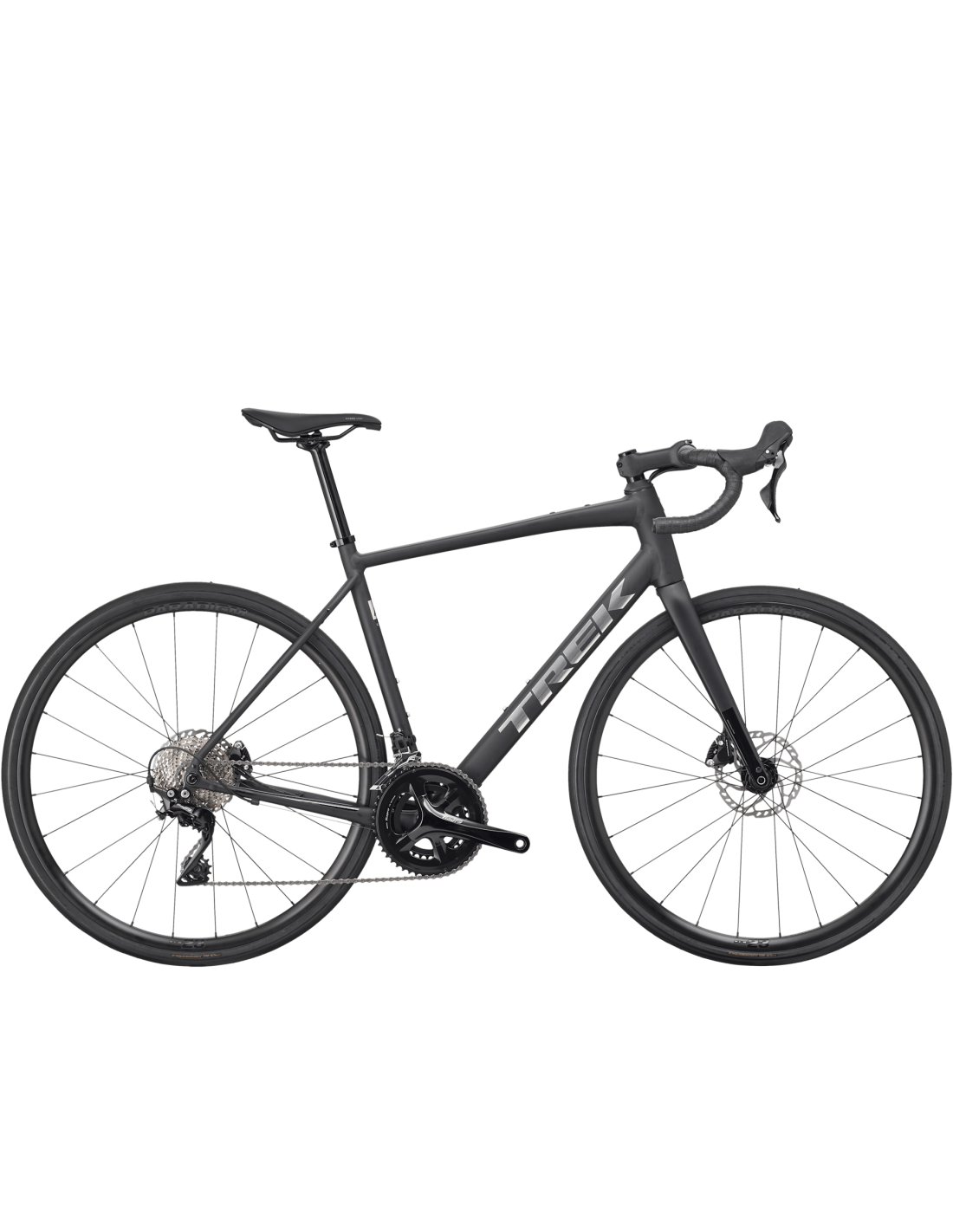

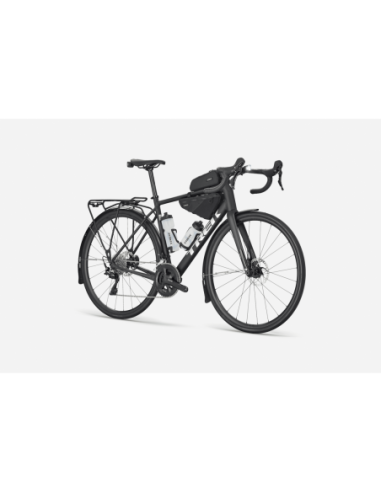

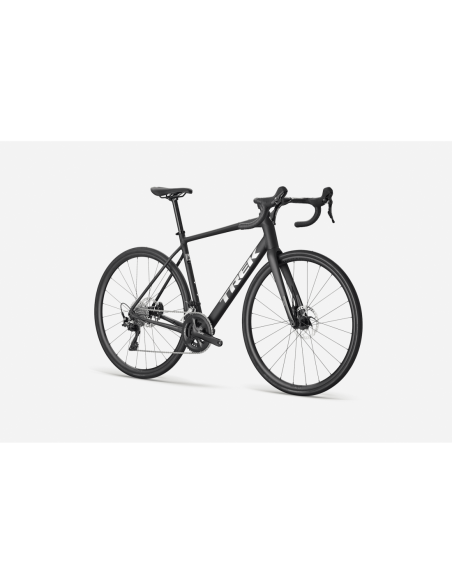

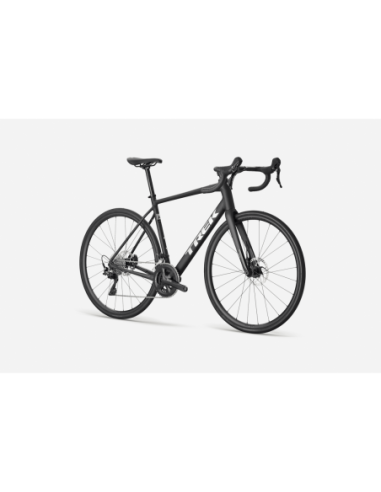

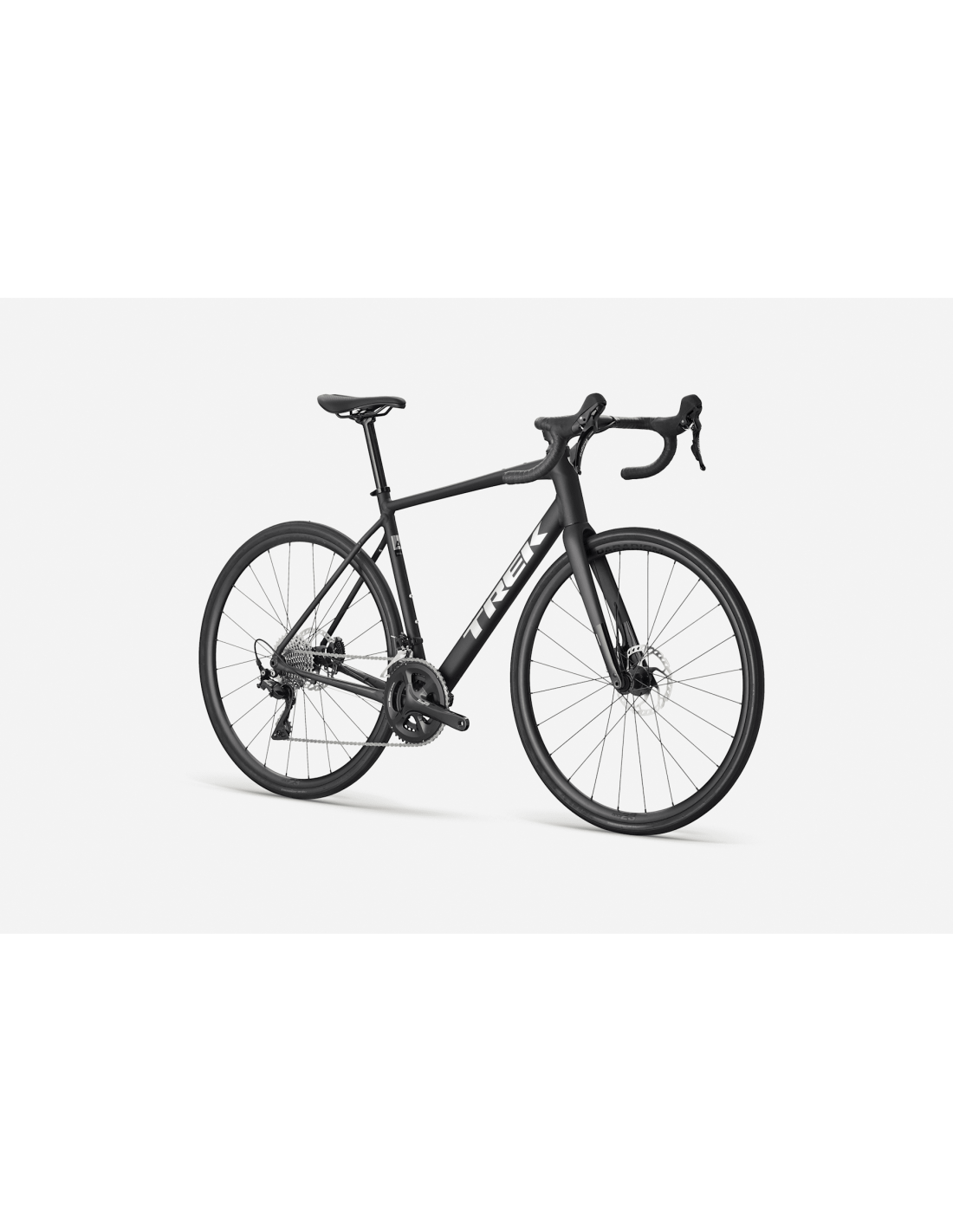

Domane AL 4 is a versatile road bike that’s ideal for riders looking to go faster and farther on every ride.
Compra a plazos desde 3 cuotas mensuales

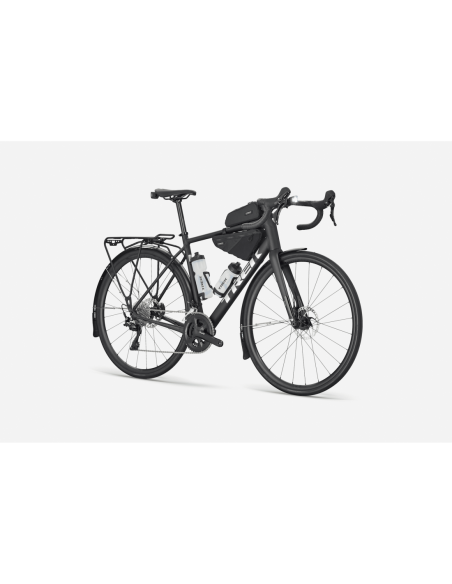

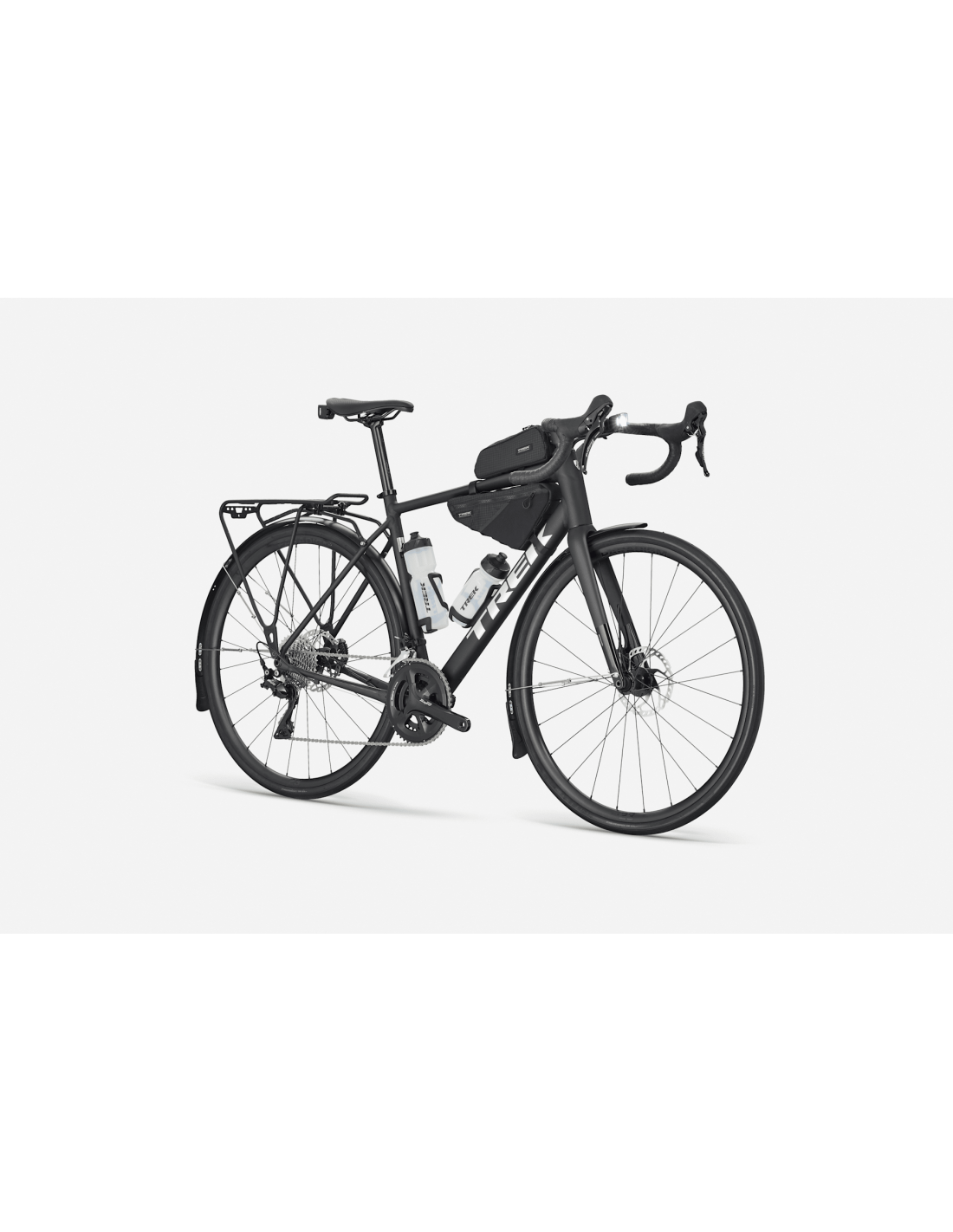

Domane AL 4 is a versatile road bike that’s ideal for riders looking to go faster and farther on every ride. Its Alpha Aluminum frame and all-day comfort geometry pair with an 11-speed Shimano Tiagra drivetrain for smoother shifting and better range than entry-level builds. With top tube mounts, larger tire clearance, and confident handling, it’s ready for everything from long group rides to adventurous gravel detours.

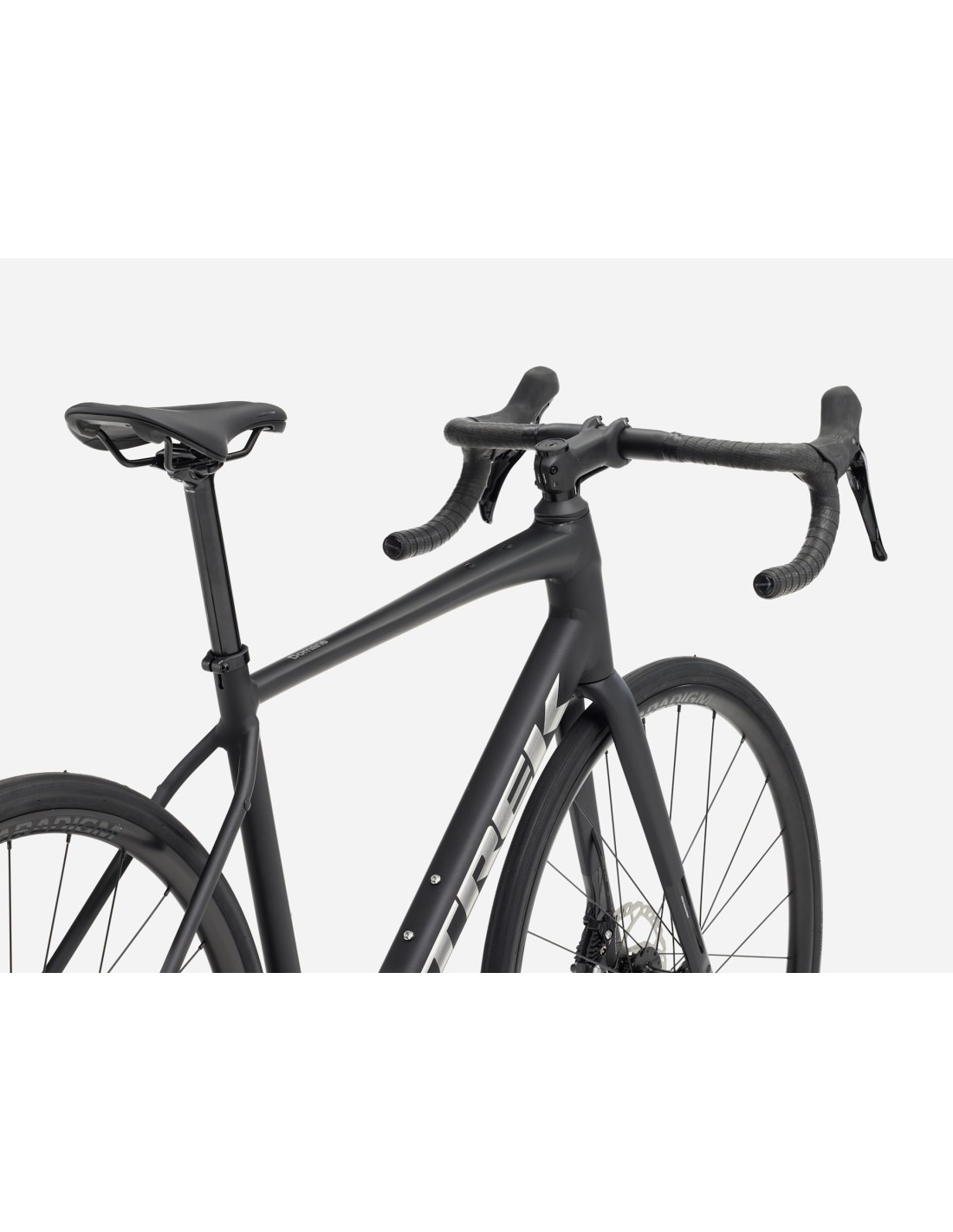

| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
| Front hub | Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle |
|---|---|
| Rear hub | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Tyre | Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |
| Shifter | Shimano Tiagra R4020 |
|---|---|
| Front derailleur | Shimano Tiagra R4000, down swing |

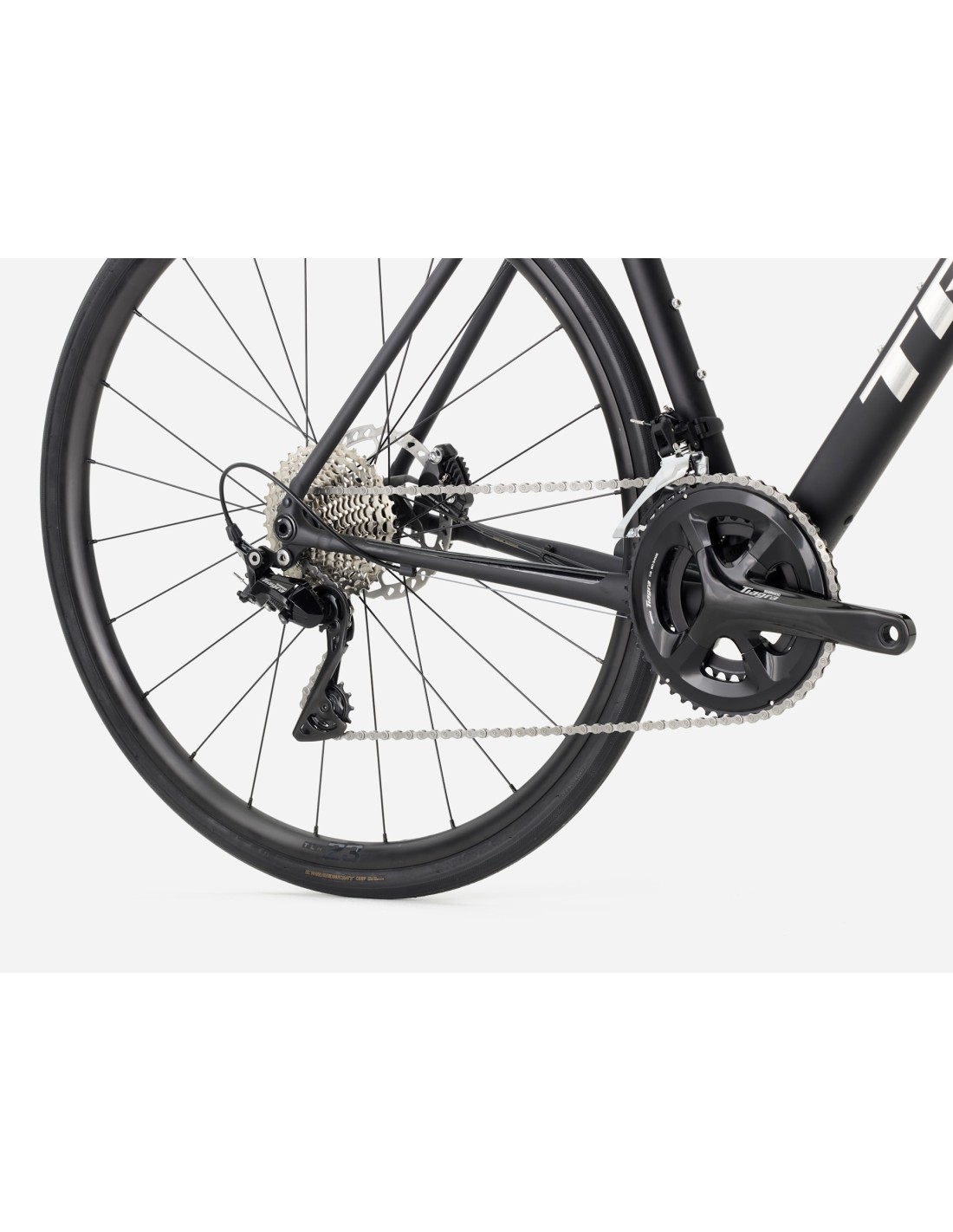

| Rear derailleur | Shimano Tiagra R4000 |
| Crankset | Sizes 44, 49, 52, 54, 56: Shimano Tiagra R4000, 50/34, 165 mm length Sizes 58, 61: Shimano Tiagra R4000, 50/34, 170 mm length |
| Bottom bracket | Shimano RS501 BSA |
| Cassette | Shimano RS400, 11-36, 11-speed |
| Chain | Shimano LG500 |
| Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| Seatpost | Sizes 44, 49: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length Sizes 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |

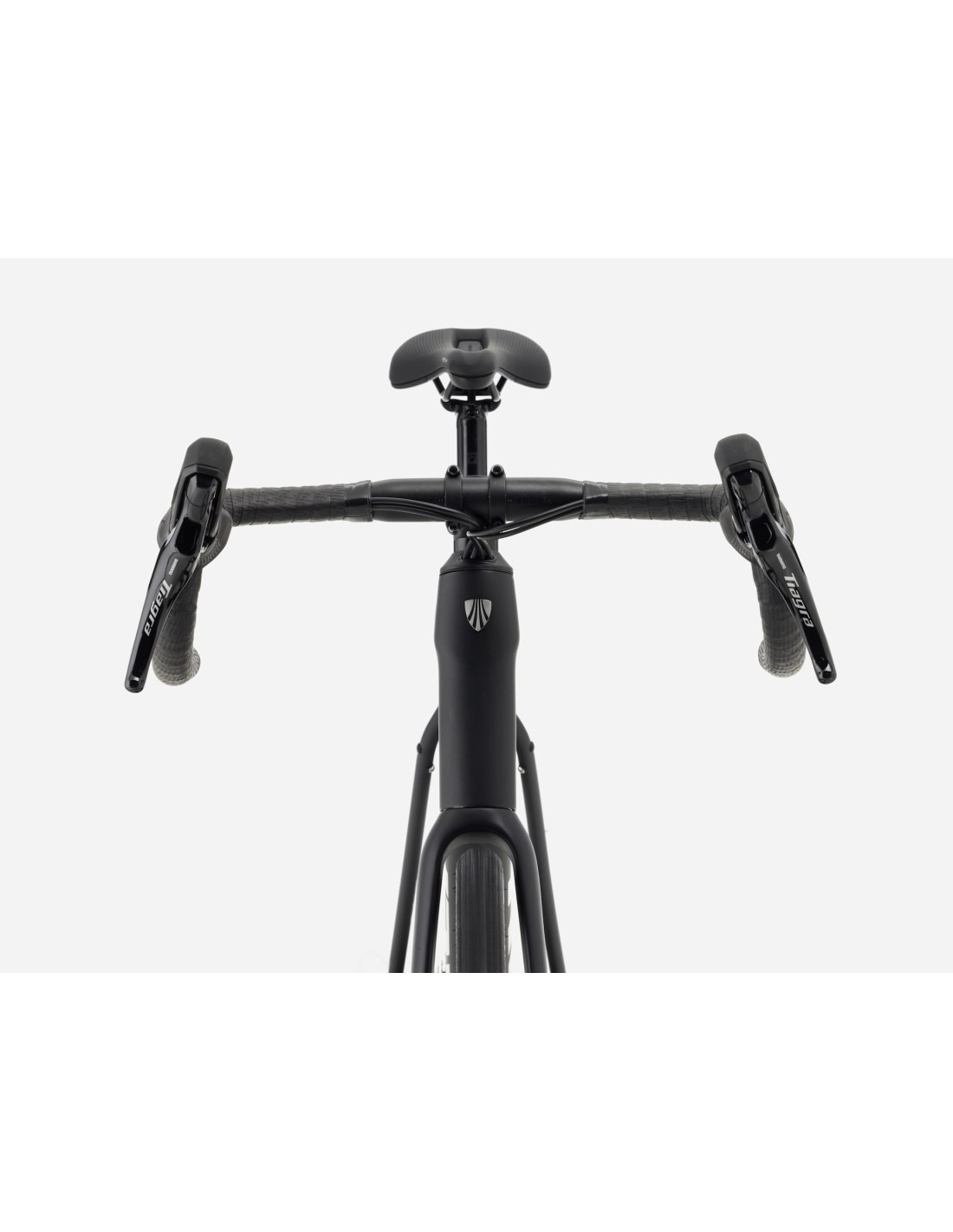

| Handlebar | Sizes 44: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Sizes 49, 52: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Sizes 54, 56, 58: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Sizes 61: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Handlebar tape | Trek EcoTack Trek gel cork |
| Stem | Sizes 44: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Sizes 49: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Sizes 52, 54: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Sizes 56, 58: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Sizes 61: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
| Brake rotor | Shimano RT66, 6-bolt, 160 mm |
We reserve the right to make changes to the product information contained on this site at any time, without prior notice, including with regard to equipment, specifications, models, colours, materials and prices. Due to supply chain issues, compatible parts may be substituted at any time, without prior notice.
The weights of bikes and frames are based on painted frames at the pre-production stage at the time of publication. Weights may vary in final production.
