Domane AL 5 is a smooth, capable road bike built for riders who want performance without sacrificing comfort.

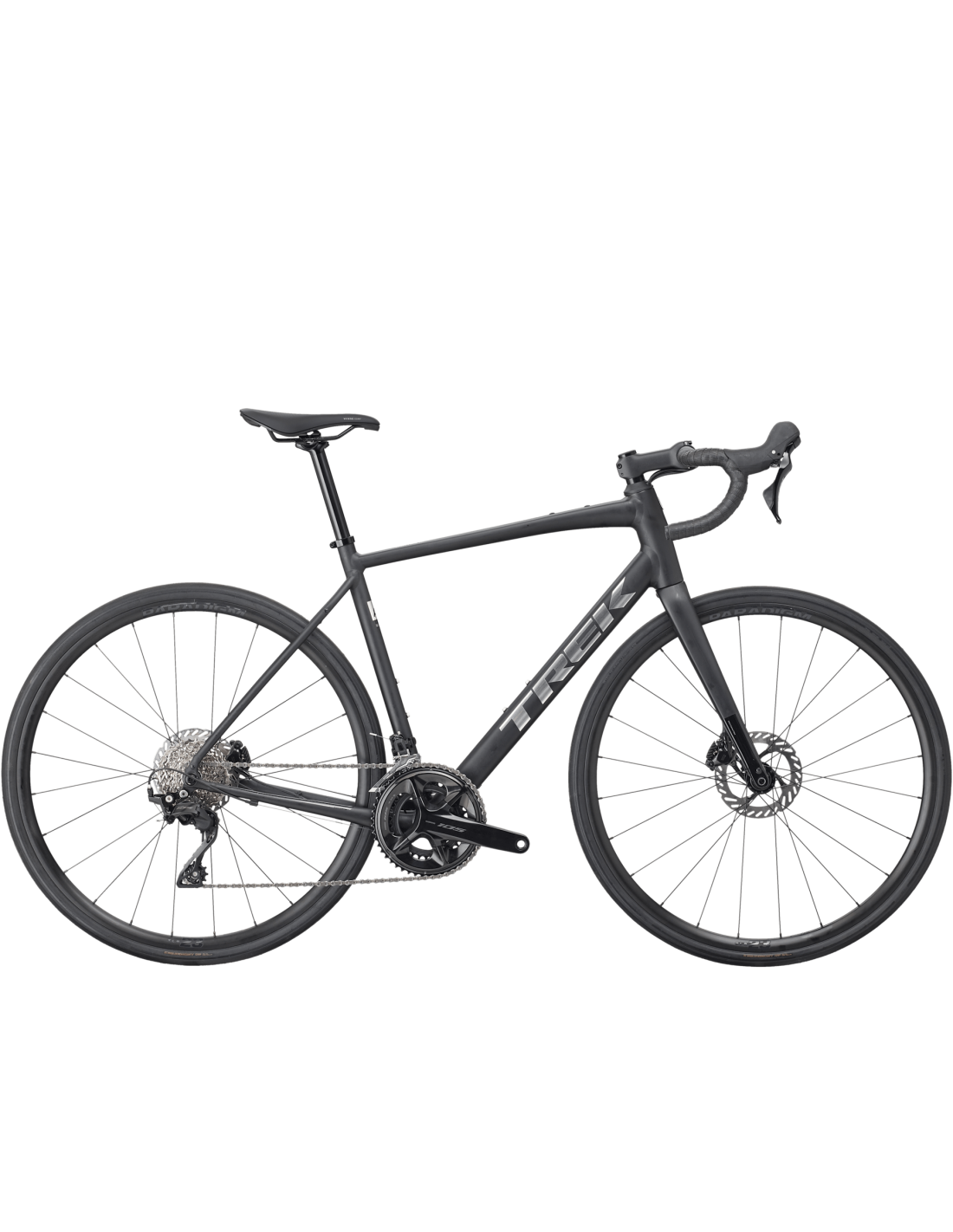

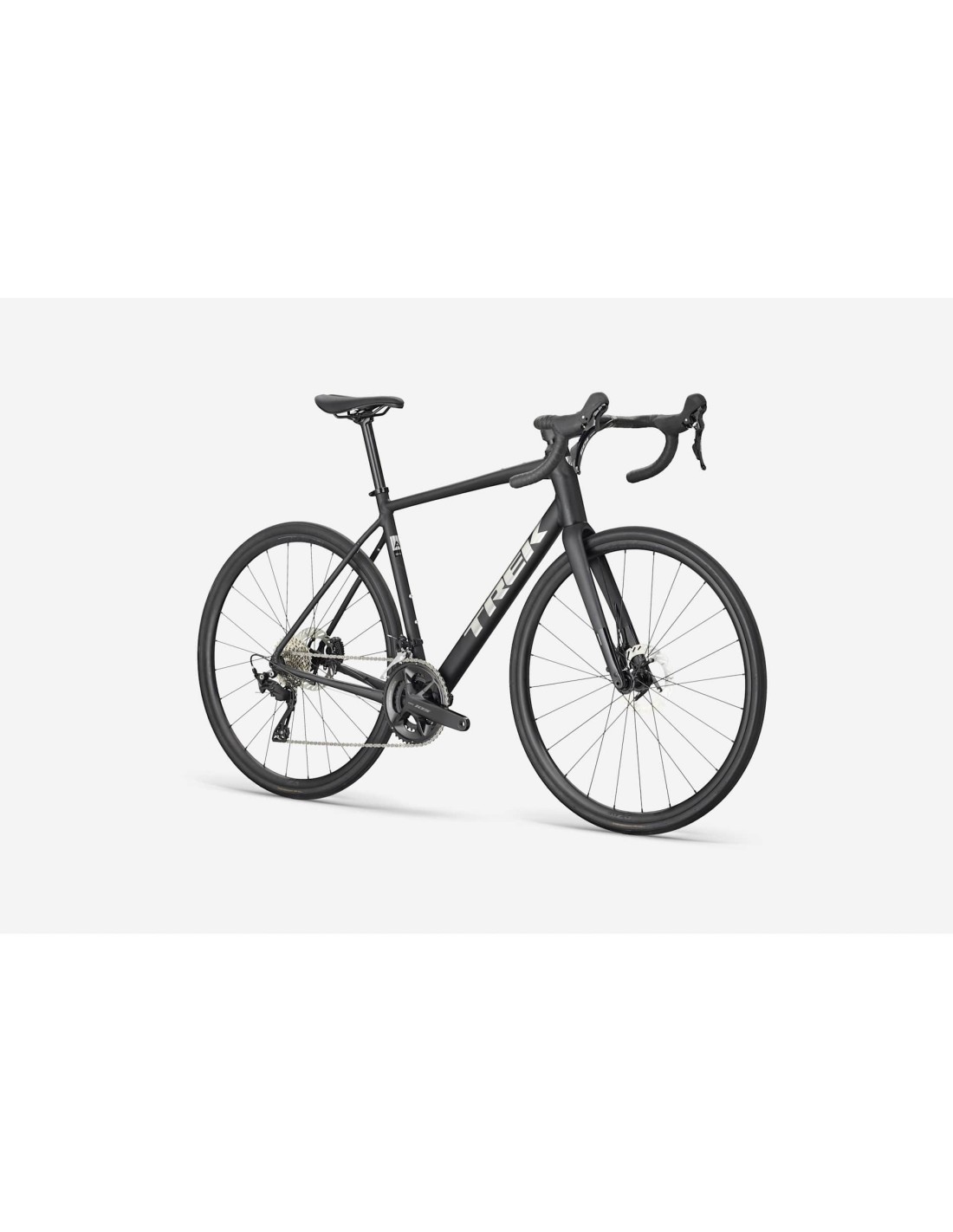

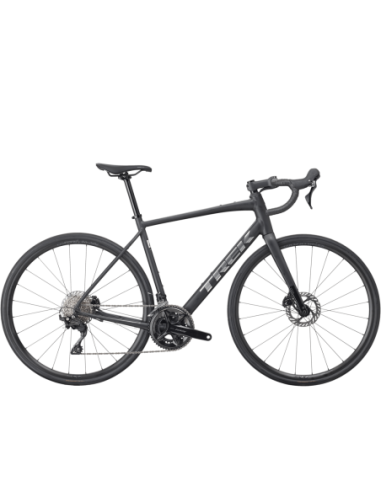

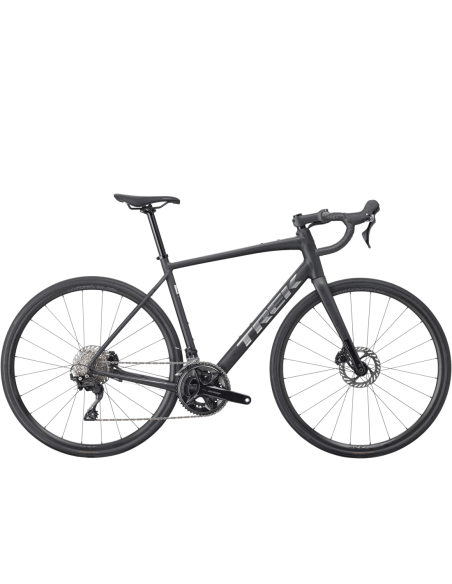

Trek Domane AL 5 Gen 4 Road Bike
- ENVÍO GRATIS Pedidos a partir de 70€ (España peninsular)
- TIENDA FÍSICA Y TALLER TREK En La Unión · Conoce al equipo
- CONSULTA A UN EXPERTO +34 682 147 337 / pedidos@33bike.es
- CAMBIOS Y DEVOLUCIONES Fáciles y rápidas
- FINANCIACIÓN CON COFIDIS TIN 0 %, comisión de apertura del 3 %
- BICIS PREMONTADAS Revisadas y ajustadas en taller
- GARANTÍA LIMITADA DE POR VIDA
- TOTAL PROTECCIÓN 100% Pago seguro
- GOOGLE REVIEWS 4.9 457 reseñas

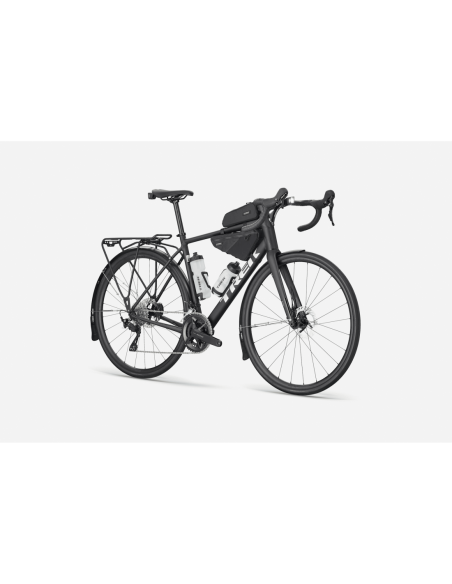

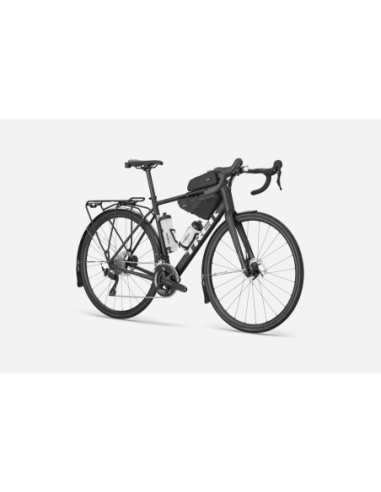

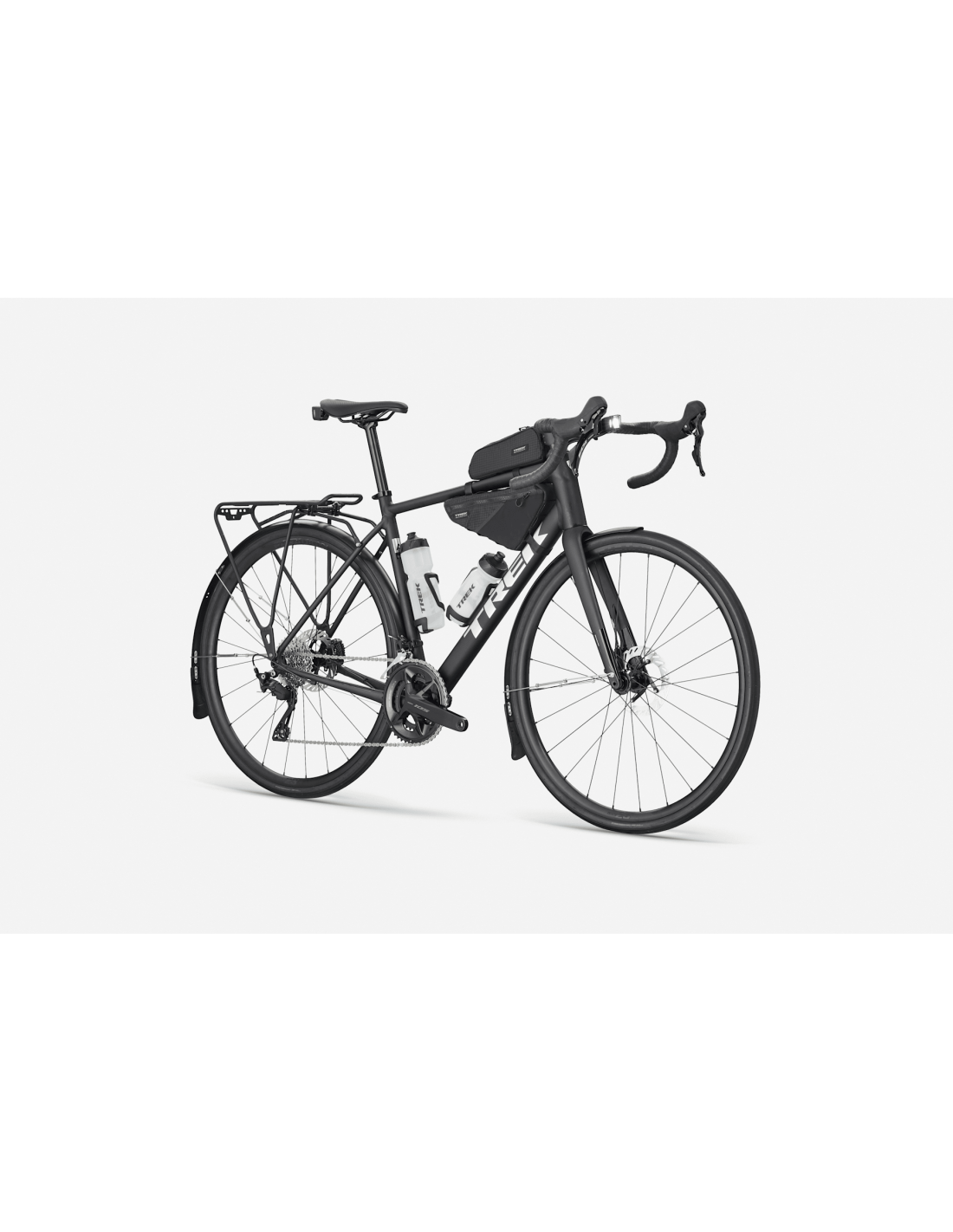

Domane AL 5 is a smooth, capable road bike built for riders who want performance without sacrificing comfort. Its Alpha Aluminum frame pairs with a 12-speed Shimano 105 drivetrain for precise shifting and a wide gear range. All-day geometry keeps you comfortable on longer rides, while bigger tire clearance and top tube mounts add versatility for light gravel, gear, or daily commutes.
Specifications
Frameset
| Frame | 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle |
Wheels
| Front hub | Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle |
|---|---|
| Rear hub | Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Tyre | Bontrager Kwaremont Comp, Hard-Case Lite, wire bead, 60 tpi, 700x32 mm |

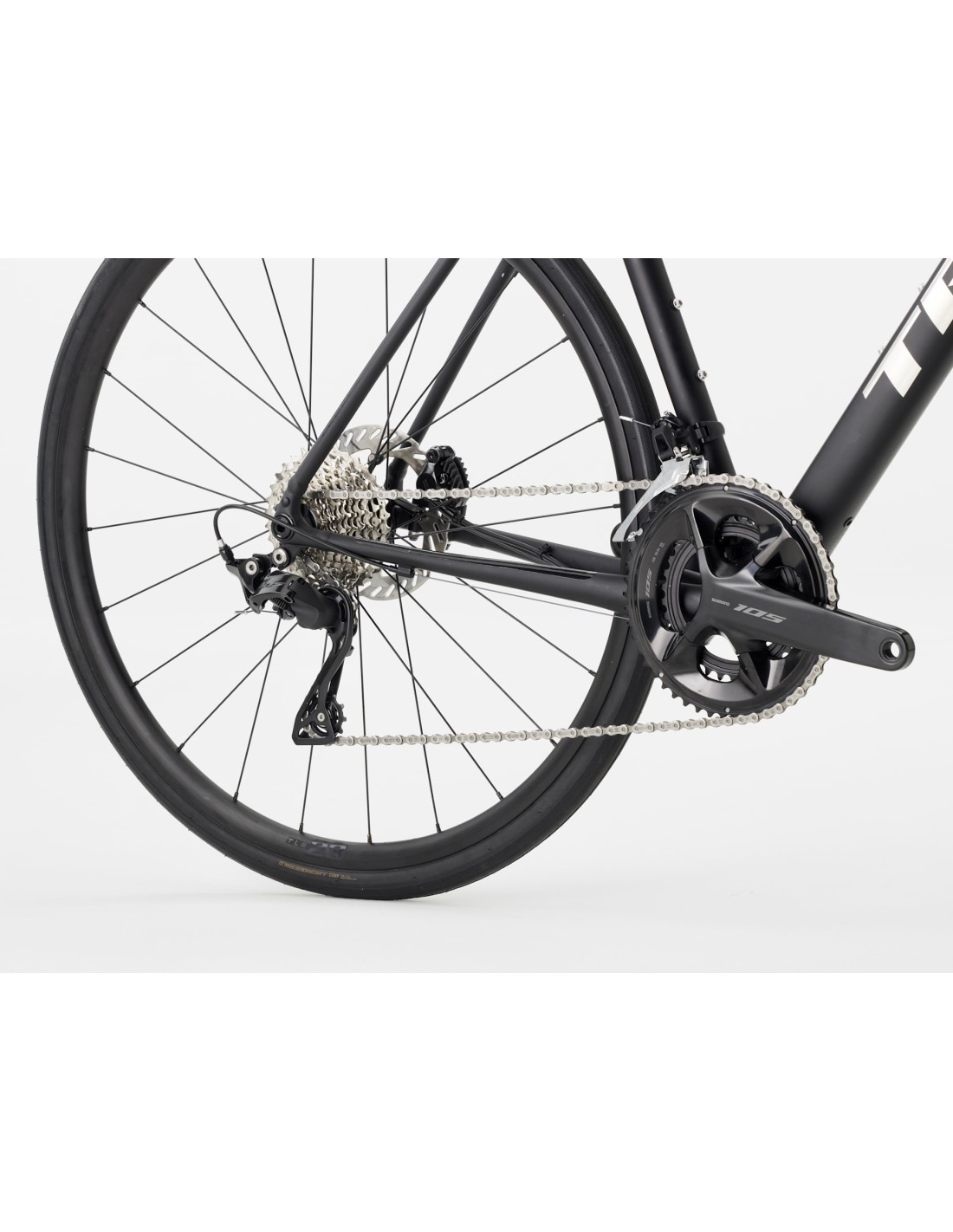

Drivetrain
| Shifter | Shimano 105 R7120, 12-speed |
|---|---|
| Front derailleur | Shimano 105 R7100, 31.8 mm clamp, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| Crankset | Sizes 44, 49: Shimano 105 R7100, 50/34, 160mm length Sizes 52, 54, 56: Shimano 105 R7100, 50/34, 165 mm length Sizes 58, 61: Shimano 105 R7100, 50/34, 170 mm length |
| Bottom bracket | Shimano RS501 BSA |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |

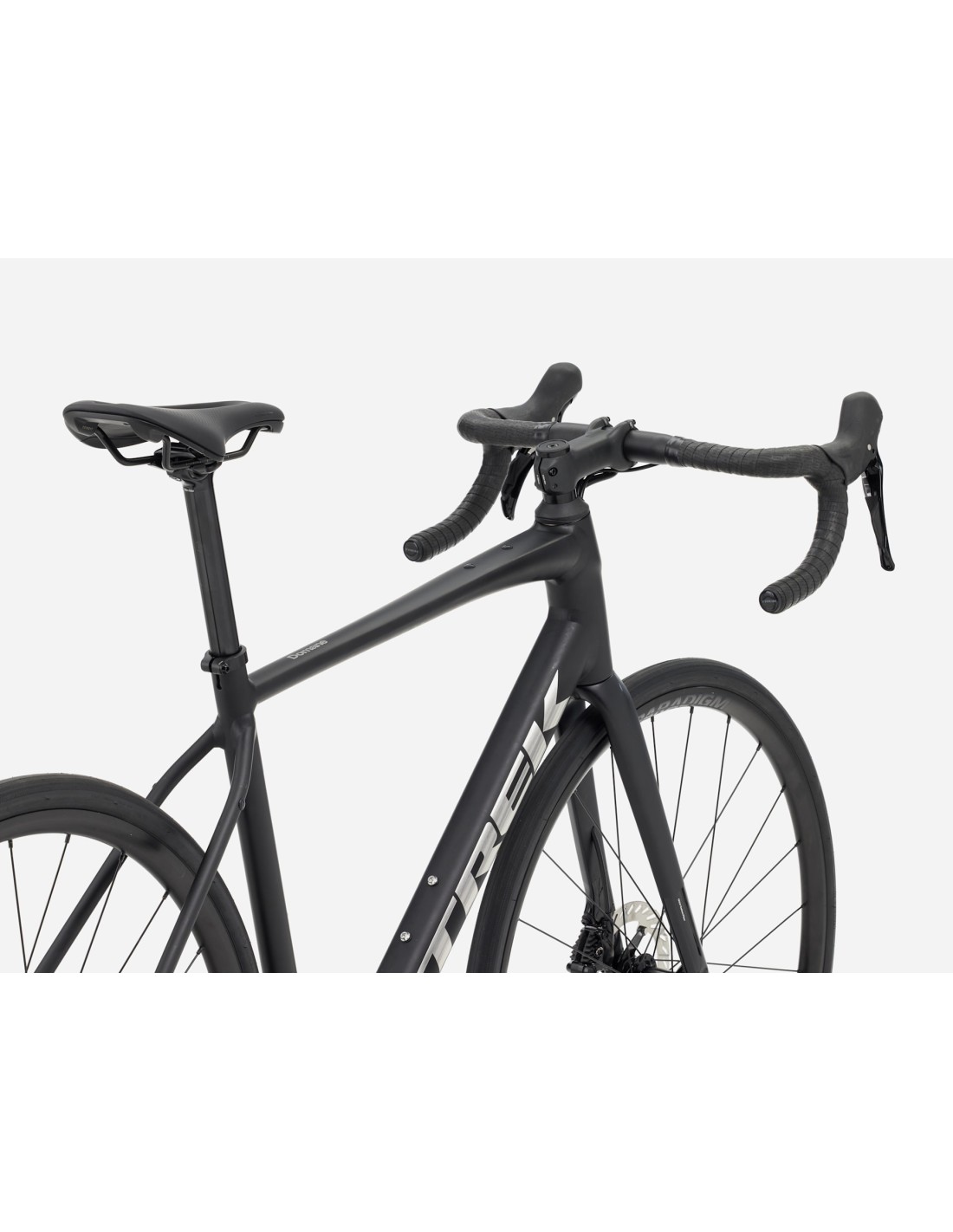

Components
| Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| Seatpost | Sizes 44, 49: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length Sizes 52, 54, 56, 58, 61: Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length |

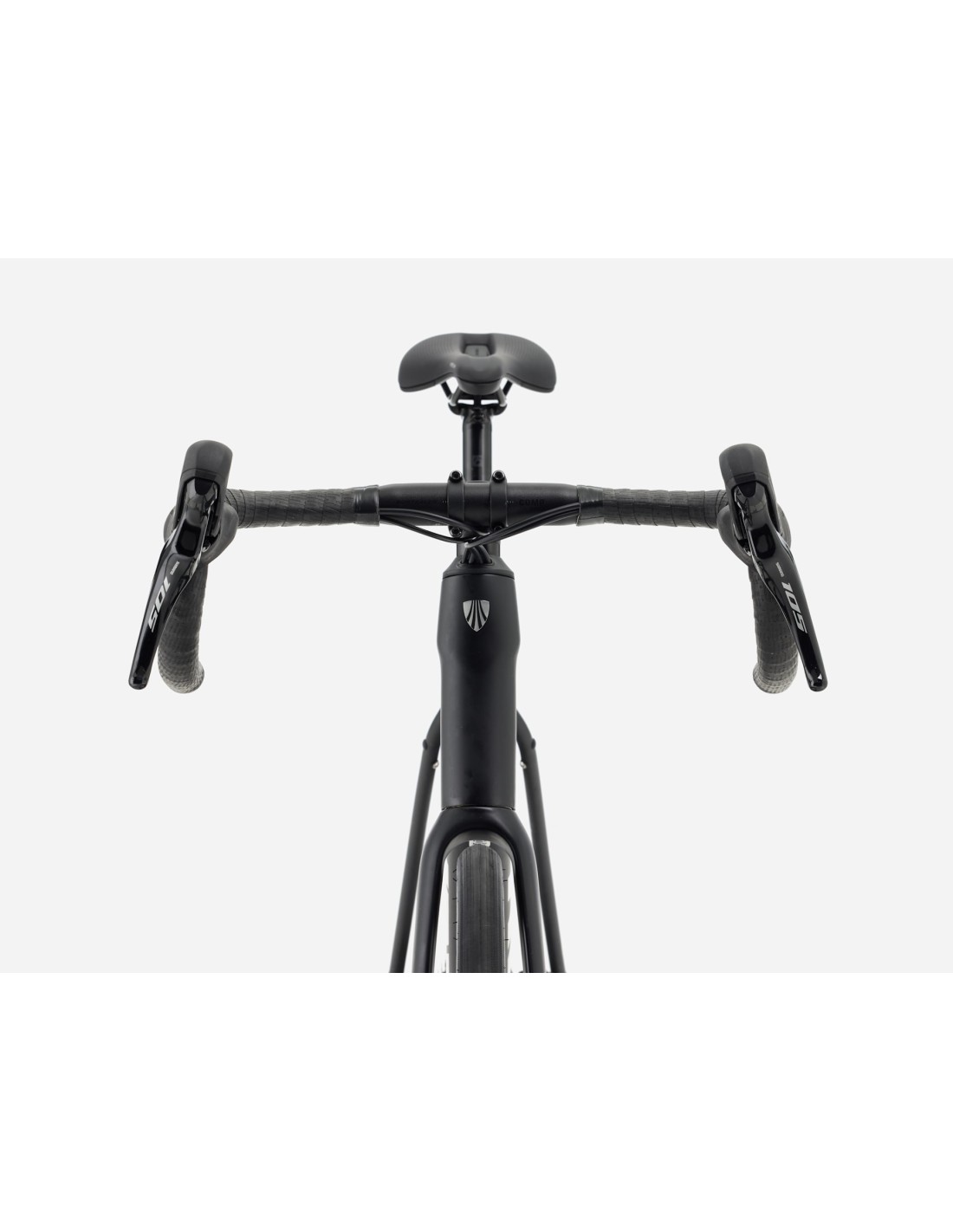

| Handlebar | Sizes 44: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width Sizes 49, 52: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width Sizes 54, 56, 58: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width Sizes 61: Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
| Handlebar tape | Sizes 44, 49, 52, 54, 56, 58: Trek EcoTack Trek gel cork |
| Stem | Sizes 44: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Sizes 49: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Sizes 52, 54: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length Sizes 56, 58: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length Sizes 61: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length |
| Brake rotor | Shimano CL700, CentreLock, 160 mm |
Frameset
| Frame | Aluminio Alpha Serie 100, tubo de dirección perfilado, guiado interno, soportes para guardabarros, disco flat mount, UDH, eje pasante de 142x12 mm |
|---|---|
| Fork | Domane AL de carbono, tubo de horquilla perfilado de carbono, guiado interno de los cables de freno, soportes para guardabarros, disco flat mount, eje pasante de 12x100 mm |
Wheels
| Wheels | Bontrager Paradigm 23, Tubeless Ready, 24 orificios, anchura de 23 mm, válvula Presta Bontrager de aluminio, rodamiento sellado, disco centerlock, eje pasante de 100x12 mm Bontrager de aluminio, rodamiento sellado, centerlock disco, núcleo Shimano de 11 v |
|---|---|
| Tyres | Bontrager Kwaremont Comp, Hard-Case Lite, aro de alambre, 60 tpi, 700x32 mm |
Drivetrain
| Shifter | Shimano 105 R7120, 12 velocidades // Shimano 105 R7120, 12 velocidades |
|---|---|
| Front derailleur | Shimano 105 R7100, abrazadera de 31,8 mm, anclaje inferior |
| Rear derailleur | Shimano 105 R7100, piñón máx. 36T |
| Crank | Shimano 105 R7100, 50/34, longitud de 165 mm Shimano RS501 BSA |
| Cassette | Shimano 105 7101, 11-34, 12 velocidades |
| Chain | Shimano SLX M7100, 12 velocidades |
Components
| Saddle | Verse Short Comp, raíles de acero, anchura de 145 mm |
|---|---|
| Seatpost | Bontrager Comp, aleación 6061, 27,2 mm, retroceso 8 mm, longitud 330 mm |
| Handlebar | Bontrager Comp, aluminio, 31,8 mm, avance de 80 mm, caída de 121 mm, anchura de las manetas de 40 cm, anchura extremos del manillar de 44 cm |
| Stem | Bontrager Elite, 31,8 mm, compatible con Blendr, 7 grados, longitud de 100 mm |
| Front brake | Shimano CL700, centerlock, 160 mm Tamaños máximos del |
| Rear brake | Shimano CL700, centerlock, 160 mm Tamaños máximos del |
Geometry
| Reach | 37.7 |
|---|---|
| Stack | 59.1 |
| Head angle | 71.9 |
| Seat angle | 73.3 |
| Effective top tube | 55.4 |
| Seat tube | 52.5 |
| Head tube length | 17.5 |
| Chainstay length | 42 |
| Wheelbase | 101.8 |
| Standover | 77.6 |
| Bottom bracket drop | 7.8 |
| Trail | 6.1 |
| Offset | 4.8 |
General info
| Model year | 2027 |
|---|
We reserve the right to make changes to the product information contained on this site at any time, without prior notice, including with regard to equipment, specifications, models, colours, materials and prices. Due to supply chain issues, compatible parts may be substituted at any time, without prior notice.
The weights of bikes and frames are based on painted frames at the pre-production stage at the time of publication. Weights may vary in final production.
