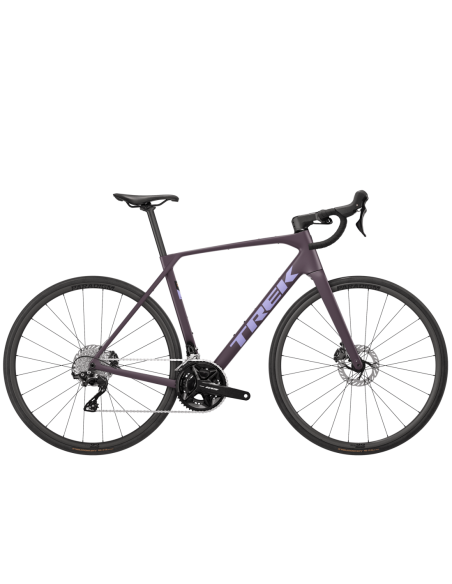

Domane SL 5 is a lightweight carbon endurance bike that blends all-day comfort with clean, modern simplicity.
Trek Domane SL 5 Gen 5 Road Bike
- ENVÍO GRATIS Pedidos a partir de 70€ (España peninsular)
- TIENDA FÍSICA Y TALLER TREK En La Unión · Conoce al equipo
- CONSULTA A UN EXPERTO +34 682 147 337 / pedidos@33bike.es
- CAMBIOS Y DEVOLUCIONES Fáciles y rápidas
- FINANCIACIÓN CON COFIDIS TIN 0 %, comisión de apertura del 3 %
- BICIS PREMONTADAS Revisadas y ajustadas en taller
- GARANTÍA LIMITADA DE POR VIDA
- TOTAL PROTECCIÓN 100% Pago seguro
- GOOGLE REVIEWS 4.9 457 reseñas
Domane SL 5 is a lightweight carbon endurance bike that blends all-day comfort with clean, modern simplicity. Built from 500 Series OCLV Carbon, it features all-road 40mm tire clearance and a streamlined design that gets back to the essence of road riding. A 12-speed Shimano 105 drivetrain delivers precise shifting and a sleek riser bar adds comfort without cluttering your front end, making it ready for long miles, big days, and light gravel detours.
Specifications
Frameset
| Frame | 500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle |
|---|---|
| Fork | Domane SL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, carbon dropouts, 12x100 mm thru axle Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle |
Wheels
| Front hub | Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle |
|---|---|
| Rear hub | Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle |
| Rim | Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve |
| Tyre | Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35 mm |
Drivetrain

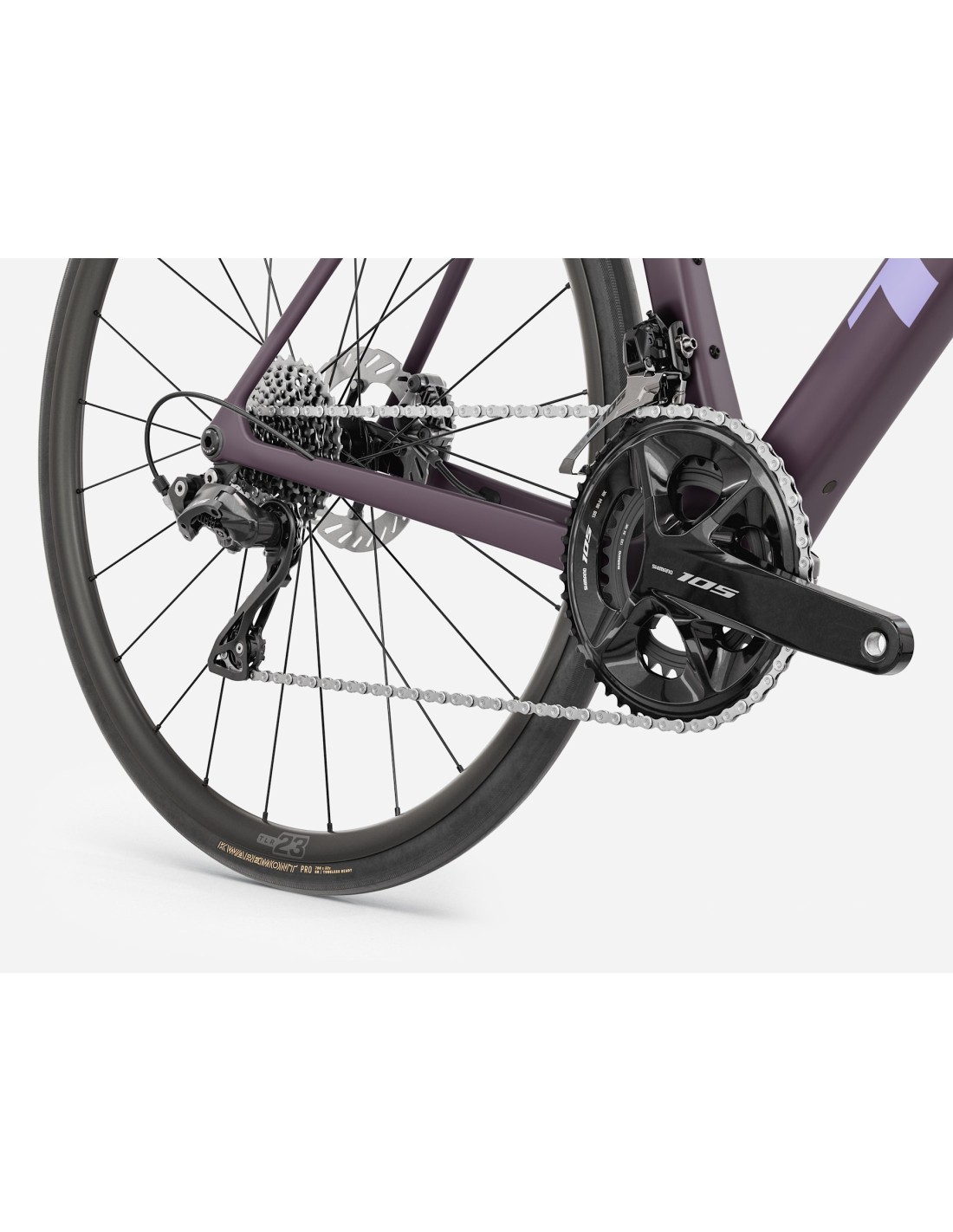

| Shifter | Shimano 105 R7120, 12-speed |
|---|---|
| Crankset | Sizes XS, S: Shimano 105 R7100, 50/34, 160mm length Sizes M, ML: Shimano 105 R7100, 50/34, 165 mm length Sizes L, XL: Shimano 105 R7100, 50/34, 170 mm length |
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
Components
| Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| Seatpost | Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length |
| Handlebar | Sizes XS: Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 36 cm width Sizes S: Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 38 cm width Sizes M, ML: Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 40 cm width Sizes L, XL: Bontrager Comp Riser, alloy, 20 mm rise, 31.8, 70 mm reach, 42 cm width |
| Stem | Sizes XS: Trek RCS Pro, -7-degree, 80 mm length Sizes S: Trek RCS Pro, -7-degree, 90 mm length Sizes M: Trek RCS Pro, -7-degree, 100 mm length Sizes ML, L: Trek RCS Pro, -7-degree, 110 mm length Sizes XL: Trek RCS Pro, -7 degree, 120 mm length |
| Brake rotor | Shimano CL700, CentreLock, 160 mm |
Frameset
| Frame | Serie 500 de carbono OCLV, guiado interno de cables, anclajes para bolsa de cuadro integrados, T47, protector de cadena integrado, anclajes de guardabarros, disco flat mount, eje pasante UDH 142x12 mm |
|---|---|
| Fork | Domane SL de carbono, tubo de horquilla perfilado de carbono, guiado interno de los cables de freno, soportes para guardabarros, disco flat mount, punteras de carbono, eje pasante de 12x100 mm |
Wheels
| Wheels | Bontrager Paradigm 23, Tubeless Ready, 24 orificios, anchura de 23 mm, válvula Presta Bontrager de aluminio, rodamiento sellado, disco centerlock, eje pasante de 100x12 mm Bontrager de aleación, rodamiento sellado, centerlock disco, nucleo Shimano de 11 v |
|---|---|
| Tyres | Bontrager Kwaremont Pro, Tubeless Ready, protección antipinchazos GR, aro de aramida, 120 tpi, 700x35 mm |
Drivetrain
| Shifter | Shimano 105 R7120, 12 velocidades // Shimano 105 R7120, 12 velocidades |
|---|---|
| Crank | Shimano 105 R7100, 50/34, longitud de 165 mm Praxis, T47 roscado, rodamiento interno |
| Cassette | Shimano 105 7101, 11-34, 12 velocidades |
| Chain | Shimano SLX M7100, 12 velocidades |
Components
| Saddle | Verse Short Comp, raíles de acero, anchura de 145 mm |
|---|---|
| Seatpost | Bontrager de carbono, 27,2 mm, retroceso de 8 mm, longitud de 330 mm |
| Handlebar | Bontrager Comp Riser, aleación, 20mm elevación, 31,8, 70 mm alcance, 40 cm anchura |
| Stem | Trek RCS Pro, -7 grados, longitud de 110 mm |
| Front brake | Shimano CL700, centerlock, 160 mm Tamaño máximo del di |
| Rear brake | Shimano CL700, centerlock, 160 mm Tamaño máximo del di |
Geometry
| Reach | 37.7 |
|---|---|
| Stack | 59.6 |
| Head angle | 71.9 |
| Seat angle | 73.3 |
| Effective top tube | 55.3 |
| Seat tube | 53.3 |
| Head tube length | 17 |
| Chainstay length | 42 |
| Wheelbase | 101 |
| Standover | 80.5 |
| Bottom bracket drop | 7.8 |
| Trail | 6.3 |
| Offset | 4.8 |
General info
| Model year | 2027 |
|---|
We reserve the right to make changes to the product information contained on this site at any time, without prior notice, including with regard to equipment, specifications, models, colours, materials and prices. Due to supply chain issues, compatible parts may be substituted at any time, without prior notice.
The weights of bikes and frames are based on painted frames at the pre-production stage at the time of publication. Weights may vary in final production.
